Input
- 2 MPP trackers
- Max PV input power 8000 W
- Start voltage 80 V
- MPP operating range 260 V to 480 V
Backup Power
- PV Point switchover time up to 22 seconds
- Full backup switchover time up to 17 seconds
Electrical Details
- Works with 208V, 220V, and 240V
- Supports 50 Hz and 60 Hz grids
Size and Weight
- Length 1.91 ft
- Width 1.74 ft
- Height 1.91 ft
- Depth 7.09 in
- Weight 45.97 lb
- Shipping weight 57.1 lb

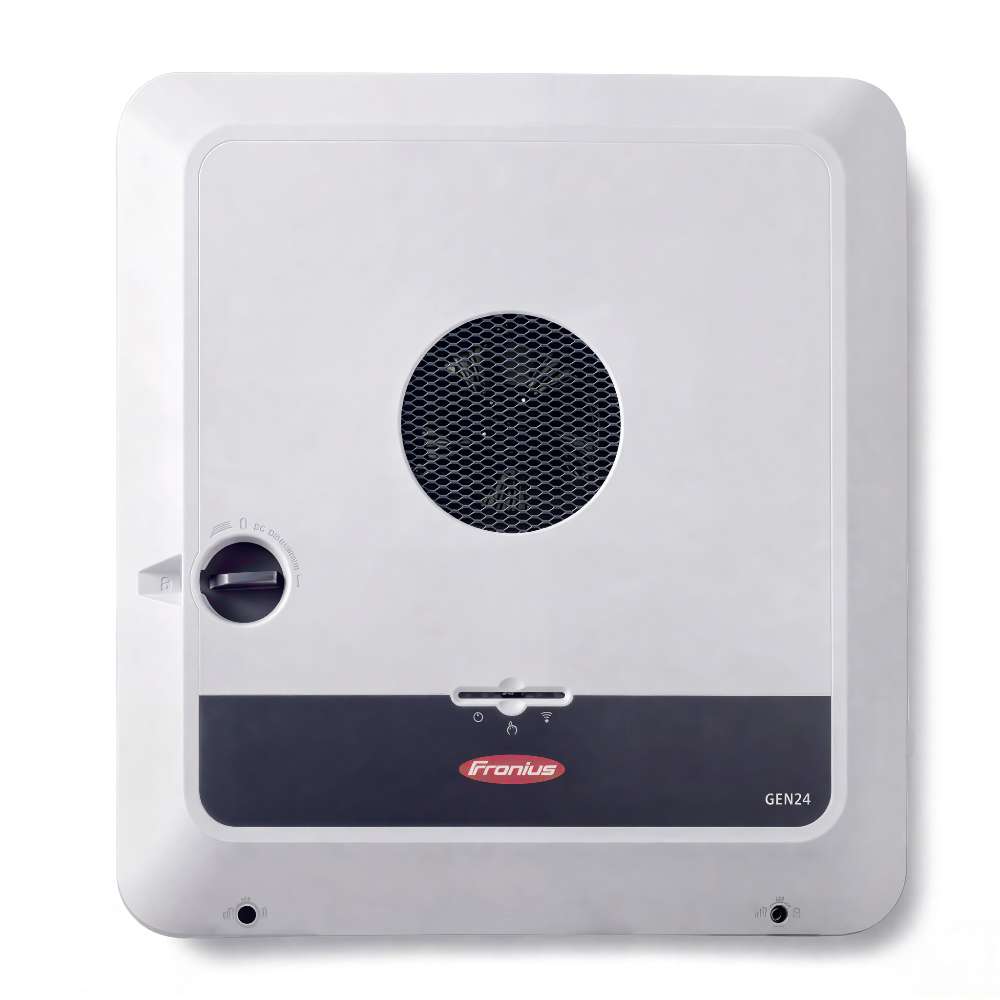

Build and Installation
- Protection class 1
- Overvoltage rating DC 2 and AC 4
- Transformerless design
- Active cooling system
- Suitable for indoor or outdoor installation
- Operates from -40°F to 140°F

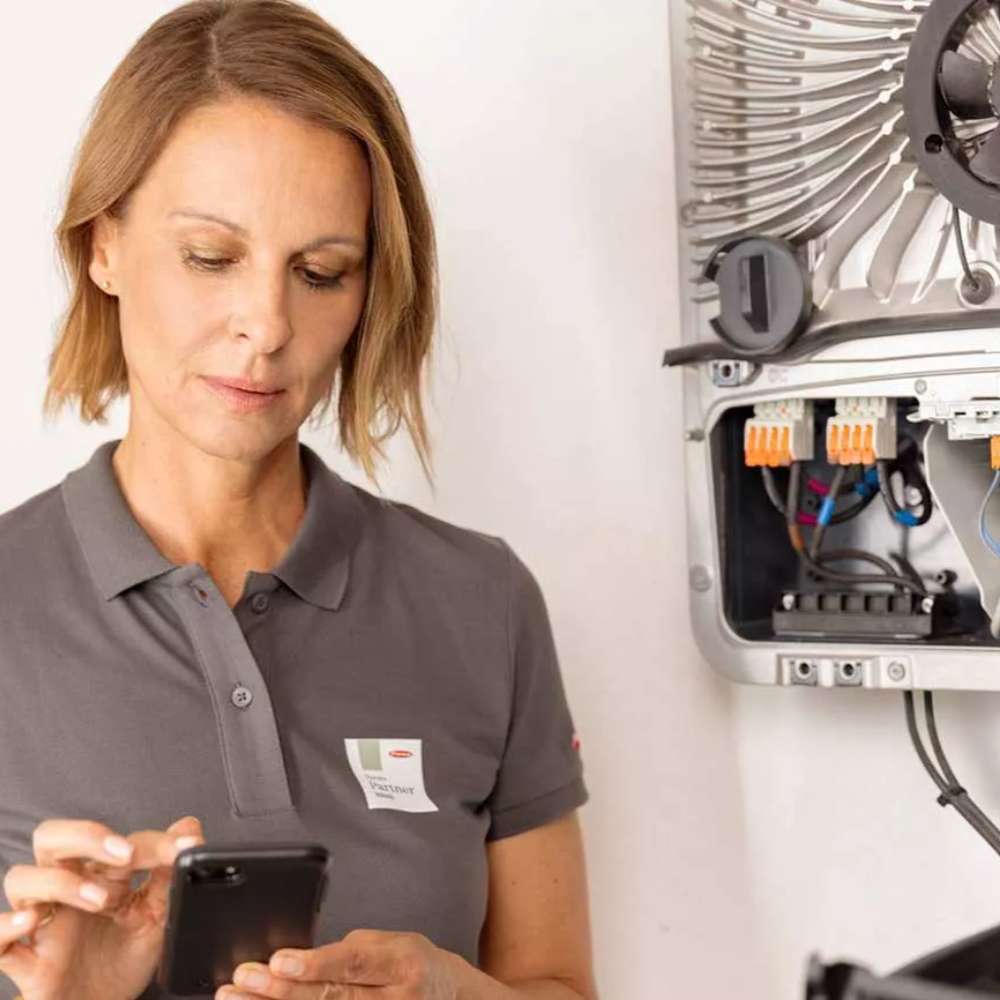

Connection Options
- DC inputs with spring terminals (solid copper)
- Battery DC terminals (AWG 12 to 8)
- AC terminals for solid or stranded copper (AWG 12 to 6)
- Backup terminals (AWG 16 to 8)
- Backup feature includes PV Point
Performance and Safety
- Sound level 51 dB
- Emission class B
- Built-in DC insulation check
- Overload protection with power limiting
- DC disconnect switch
- Reverse polarity protection
- Arc fault protection (Fronius Arc Guard)
Communication and Monitoring
- Wi-Fi and 2 Ethernet ports
- Compatible with Fronius Solar.web, Modbus TCP, and Solar API
- Six digital inputs and outputs
- Supports energy management and ripple control
- Emergency stop included
- Built-in datalogger and web server
- Two RS485 ports for smart meter or Modbus devices
Grid Type
- NPE grid connection
