EG4 WallMount 280Ah All Weather Battery — 14.3kWh, IP65
When winter throws its worst at your solar setup, this is the battery built to keep going. The EG4 WallMount 280Ah All Weather Battery — part of EG4's PowerPro line — mounts outside, heats itself in the cold, and banks 14.3kWh of clean backup power, so an outage or a cold snap never leaves you in the dark.
Your life, with the EG4 WallMount 280Ah All Weather Battery
You've seen what a bad winter storm can do — days without power, a freezer full of food you're hoping stays cold, and a scramble for anything that keeps the lights on. What if your home just kept running instead?

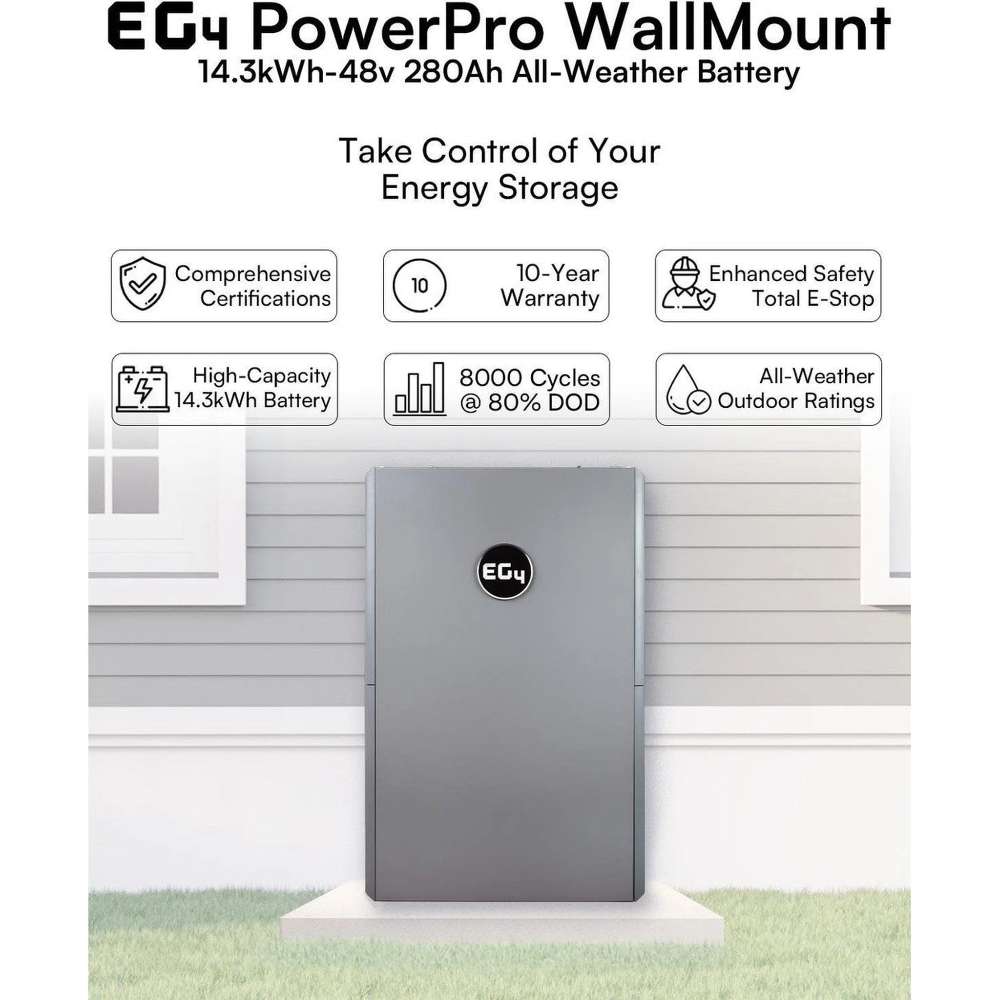

That's the promise of the EG4 WallMount 280Ah All Weather Battery. Mounted on an outside wall and wired to your inverter, it banks 14.3kWh of clean power and waits — and when the cold sets in, its built-in heater keeps the cells safe and ready, so freezing temperatures don't stop your backup.

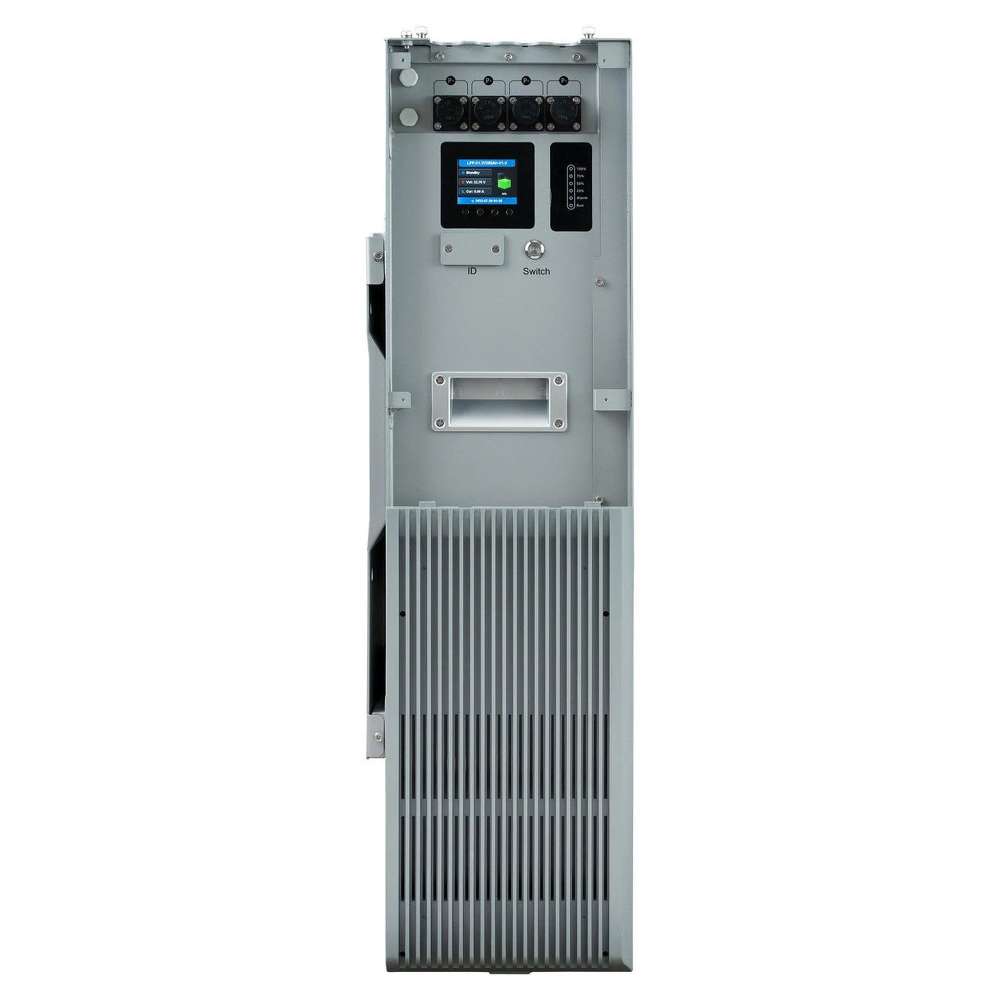

Checking on it couldn't be simpler. The on-board LCD touch screen and SOC lights show you exactly where things stand — charge level, voltage, status — right there on the unit. Behind the display, an intelligent BMS watches every cell and flags a fault the moment it matters.

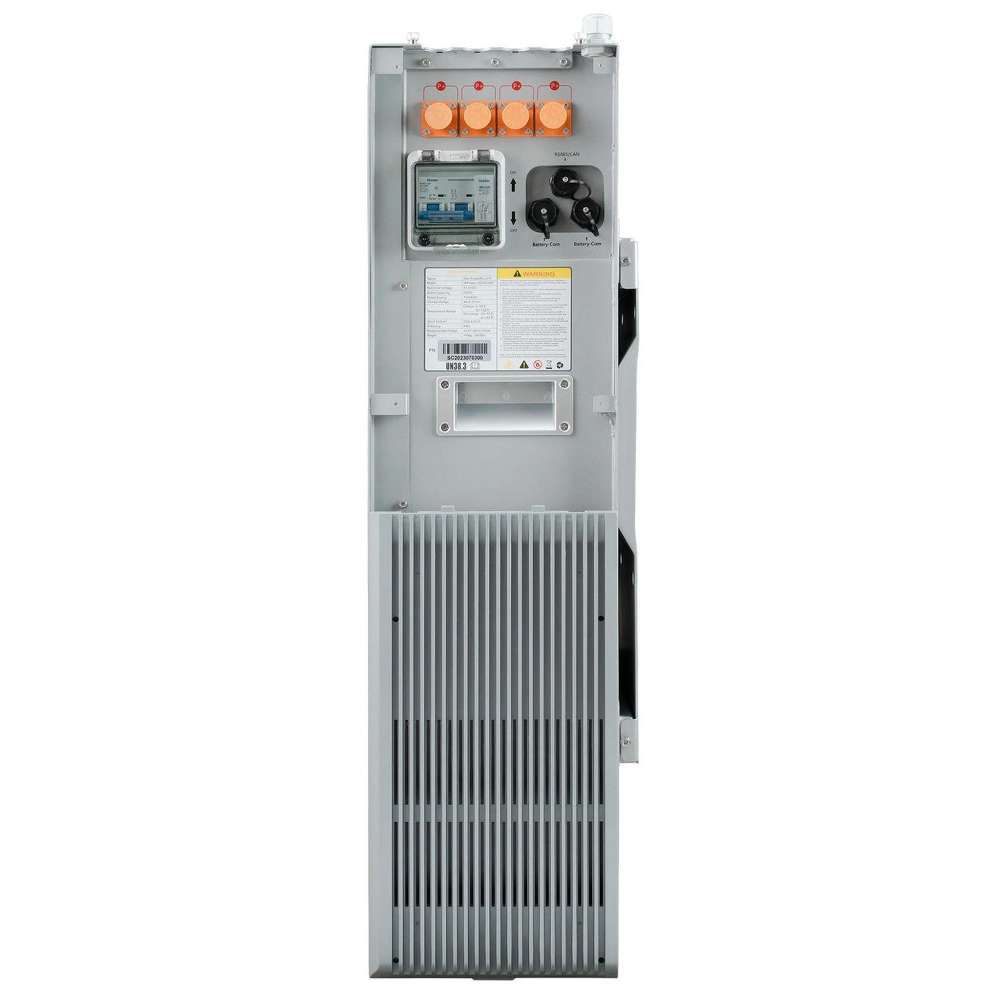

Installation is refreshingly painless, too. Weather-tight Degson quick-connects and heavy 600A busbars let you wire it up fast and parallel a few units on the internal busbars as your storage needs grow. Pair it with an EG4 inverter and the optional conduit box, and the whole system goes together clean.
Rain or shine, deep freeze or heat wave, it just keeps doing its job. That's backup power you can count on, season after season.
The EG4 WallMount 280Ah All Weather Battery in a nutshell:
-
14.3kWh of outdoor-rated LiFePO4 storage — full-size backup you can mount outside.
-
IP65 enclosure with built-in self-heating — dependable through rain, dust, and hard winters.
-
On-board LCD touch screen and SOC lights — check charge and status right on the unit.
-
Weather-tight Degson connects and 600A busbars — fast wiring and easy paralleling as you grow.
EG4 WallMount 280Ah All Weather Battery specifications
Energy & Electrical
-
Total energy: 14.3kWh
-
Nominal voltage: 51.2V (48V system)
-
Capacity: 280Ah
-
Chemistry: Lithium Iron Phosphate (LiFePO4)
-
Recommended DoD: 80% (20% SOC cutoff)
Power Output
-
Max continuous discharge: 140A (200A for 30 min)
-
Max continuous charge: 140A
-
Peak/surge: >300A (3 sec)
-
Recommended rate: 0.5C
Management & Communication
-
BMS: built-in 200A with passive cell balancing
-
Busbars: integrated 600A
-
Display: on-board LCD touch screen + SOC indicator LEDs
-
Communication: RS485 / CAN (closed-loop, selectable)
-
Compatible inverters: EG4, Schneider, Sol-Ark, Victron, Growatt, Luxpower, Deye, Megarevo
-
Safety: RSD compatible, dual internal fire arrestors
Weatherproofing & Environment
-
Enclosure rating: IP65 (outdoor)
-
Self-heating: 224W heater, activates at/below 32°F (0°C)
-
Operating temp (charge): 32–122°F (0–50°C)
-
Operating temp (discharge): -4–131°F (-20–55°C)
-
Operating altitude: up to 16,404 ft
Physical
-
Dimensions (H × W × D): 36.1 × 22.3 × 9.1 in (916 × 566 × 232 mm)
-
Weight: 308.6 lbs (140 kg)
-
Mounting: wall-attached or floor mount
-
Connectors: weather-tight Degson quick-connect (2/0 AWG cables included)
Lifecycle & Safety
-
Cycle life: >8,000 cycles @ 80% DoD (0.5C)
-
Design life: >15 years
-
Lifetime energy throughput: 82.6 MWh
-
Certifications: UL1973, UL9540A (UL9540 with EG4 inverters)
-
Warranty: 10 years
-
Brand: EG4
Let the experts help you find your perfect EG4 WallMount 280Ah All Weather Battery setup
Not sure how many EG4 WallMount 280Ah All Weather Battery units you need, or how they'll pair with your inverter? That's exactly what we're here for. Our team works with these systems every day, and we'll help you size your storage right the first time — no guesswork.
Chat via email — support@kratopower.com
Chat on the phone — +1 888-855-7286
EG4 WallMount 280Ah All Weather Battery documents and materials
Everything you need to spec, install, and register your EG4 WallMount 280Ah All Weather Battery:
Safety note: The EG4 WallMount 280Ah All Weather Battery is a high-voltage energy storage product. Everything on this page is provided for general information only and is not professional electrical, installation, or safety advice. Installation should always be carried out by a licensed electrician or qualified solar installer, in line with local codes and the manufacturer's manual. Every home and system is different, so if you're ever in doubt, please consult a qualified professional before purchase or installation. You use this product and the information here at your own risk.
