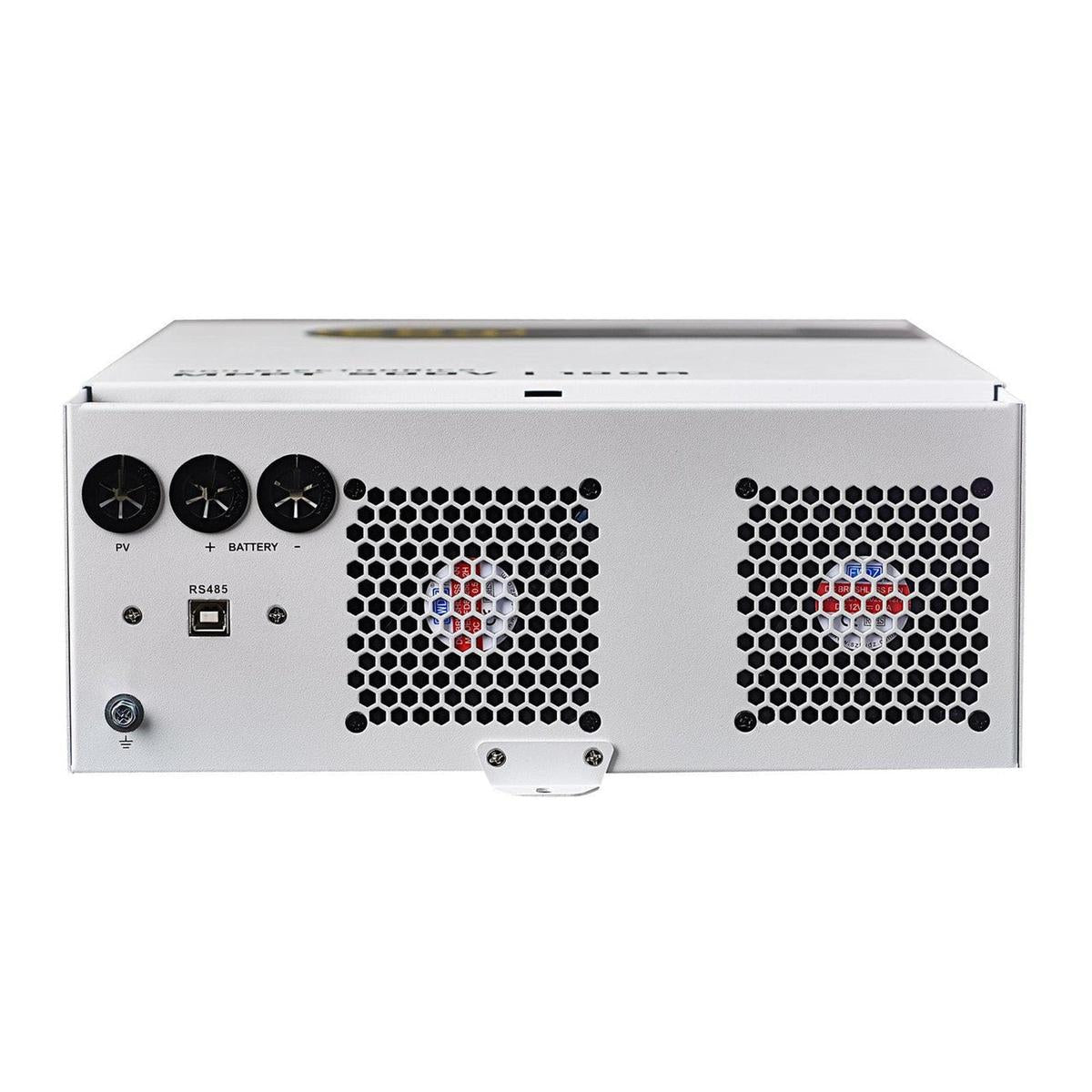

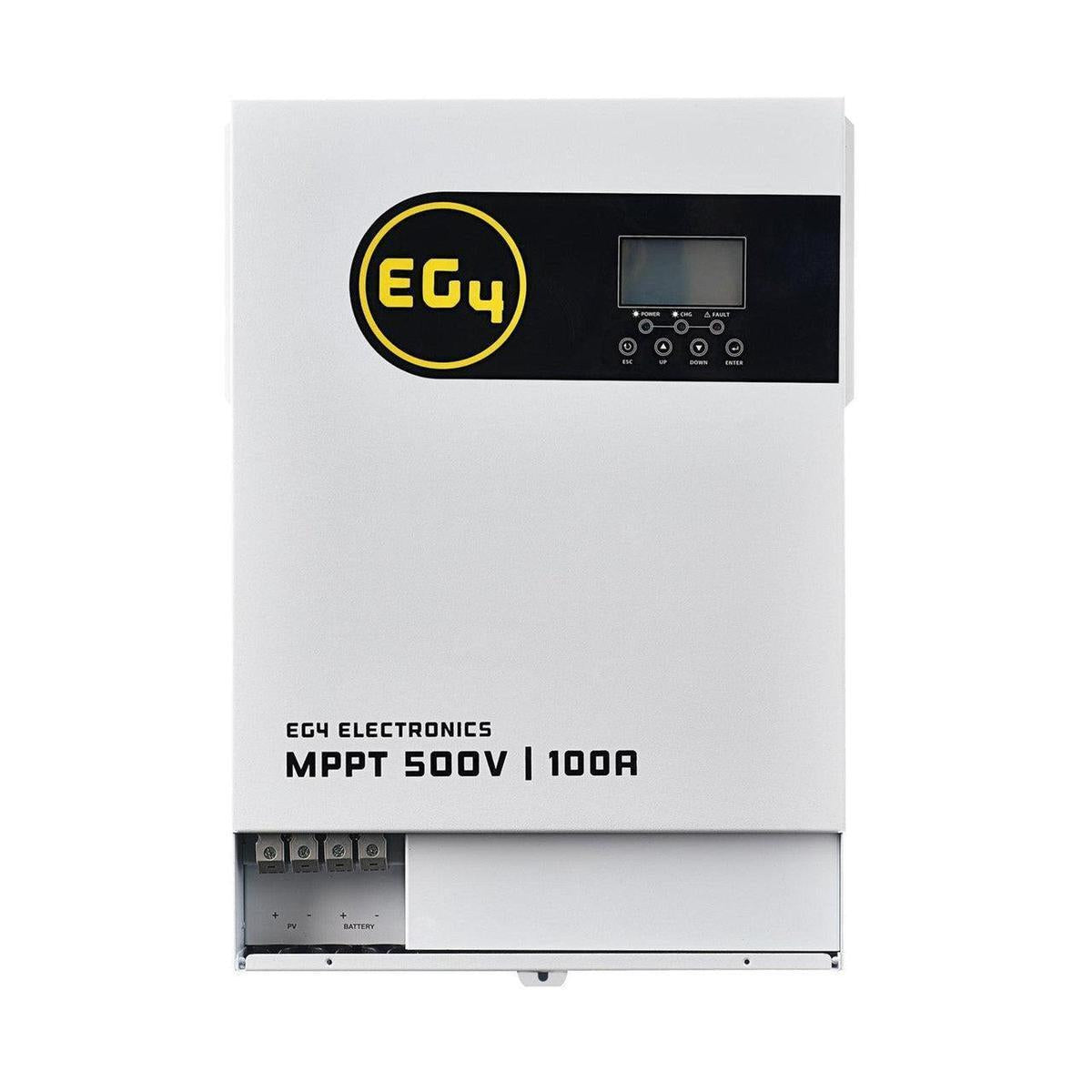

EG4 Solar Charge Controller MPPT | 500VDC 100A | MPPT100-48HV

EG4 Solar Charge Controller MPPT | 500VDC 100A | MPPT100-48HV

SKU EG4MPPT100-48HV
Save $102.34
$682.29
$579.95

Notify me when back in stock

Find a better price somewhere else?

Well... we will BEAT their price to get you the lowest pricing, we will find and SPEAK with a local installer, AND you get our post-purchase customer support.

Call/Text Us: 1-888-855-7286
Live Chat With an Expert

  • US Based Authorized DuroMax Dealer

    Full manufacturer warranty included

  • 4-5 Day Free Shipping + No Sales Tax

    More savings on every purchase and ships in 4-5 business day

  • Easy 30-Day Returns & Price Beat Guarantee

    Risk-free shopping + best price guaranteed

  • Post-Purchase Customer Support

    Dedicated help whenever you need it


ESTIMATED DELIVERY BETWEEN

Order within to get it by the earliest date.


EG4 Solar Charge Controller MPPT | 500VDC 100A | MPPT100-48HV

The EG4 Solar Charge Controller MPPT100-48HV is a high-efficiency 100A MPPT charge controller designed to optimize solar energy conversion for 48V battery banks. With a maximum PV input voltage of 500VDC, this controller allows for longer solar panel strings, reducing wiring costs and increasing system efficiency. Perfect for off-grid and hybrid solar systems, the MPPT100-48HV ensures reliable and intelligent solar power management.

 


Powerful PV array MPPT voltage range - No need for combiner boxes

  • Maximum open-circuit voltage: 500VDC
  • Maximum usable solar panel PV array power: 5500W when combining 2 strings with a branch connector
  • Maximum PV string current: 22A

100A max charging current for quick battery charging rates - Adjustable from 0A-100A(Default 80A).

  • Can charge a 5.12kWh EG4 battery in about 1 hour at 100A
  • Recommended operating usage: 80A total or 30A per battery to maintain battery lifespan

Battery voltage: 48V nominal.

  • 48-62VDC charging voltage (default 56Vdc)
 Placeholder Image


Built-in breakers for added protection.

  • PV array DC disconnect breaker
  • Built-in battery breaker for added protection

Effective and efficient

  • 94% max charge controller efficiency
  • Less than 25W self-consumption

BMS Communication

  • The MPPT charger is able to communicate with EG4 batteries when operating with non-EG4 compatible inverters via its RS485 BMS port.
 Placeholder Image

What is an MPPT Charge Controller?

An MPPT, or maximum power point tracker is a DC-to-DC converter that optimizes the power between the solar panel array, and the battery bank. Basically, they convert a higher voltage DC output from solar panels down to the lower and consistent voltage needed to charge batteries.

What's Included

Everything you need is included with your product.
  • EG4 Solar Charge Controller MPPT | 500VDC 100A | MPPT100-48HV
  • User Manual

EG4 Solar Charge Controller MPPT | 500VDC 100A | MPPT100-48HV Specifications
Specification Details
Rated Power 5500W
Battery Voltage 48Vdc nominal
Max MPPT VOC 500V
Charge Current 5-100A (default 80A)
Max PV String Current 22A
Bulk Charging Voltage 48-62Vdc (default 56Vdc)
Overcharge Protection 63Vdc
Max Efficiency 94%
Self-Consumption <25W
Dimensions H×W×D 17.2×11.6×4.7 in. (43.8×29.5×12.0 cm)
Net Weight 17.8 lbs. (8.1 kg)

Frequently-Asked Questions

What battery types are compatible with this charge controller?

The EG4 MPPT100-48HV is designed for 48V LiFePO4 (lithium) and lead-acid battery banks.

What is the maximum PV input voltage?

This controller supports a maximum of 500VDC PV input, allowing for longer solar panel strings to minimize wiring losses.

Can I monitor this charge controller remotely?

Yes! The MPPT100-48HV features Wi-Fi and RS485 connectivity for remote monitoring and system adjustments.

Does this charge controller support load control?

Yes, it has multiple load control modes, including manual, light-sensitive, and timer-based settings.
