EG4 24K Hybrid Multizone Mini-Split — Solar Heat & Cooling
Comfort in every room, powered by the sun. The EG4 24K Hybrid Multizone Mini-Split heats and cools up to three rooms from a single outdoor unit — running on solar DC, grid power, or a blend of both, so you stay comfortable while your energy bills stay low.
Why You'll Love The EG4 24K Hybrid Multizone Mini-Split
-
Runs on your own sunshine. Feed it 150-410V of solar DC and it powers your heating and cooling straight from the panels — automatically using free solar first before it ever touches the grid.
-

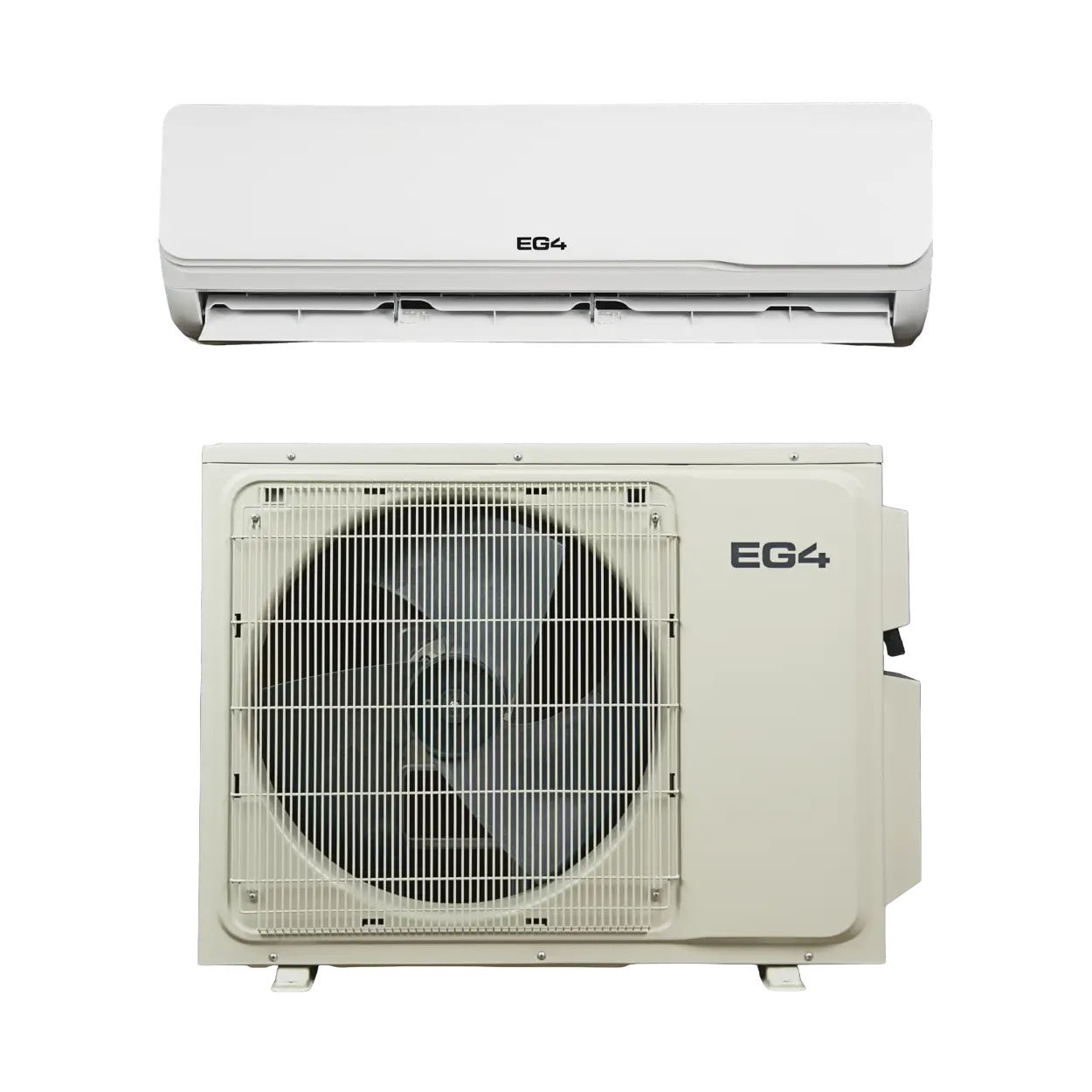

Comfort in up to three rooms. One outdoor unit supports up to three indoor zones, so you can mix 12K, 18K, and 24K heads to keep the bedroom, living room, and office each at their own perfect setting.
-
Efficient, all year long. A SEER2 of 22 and modern R32 refrigerant deliver strong heating and cooling — down to 5°F for heat and up to 125°F for cooling — without running up your energy bill.
-
In control from anywhere. Full app control lets you monitor and adjust from your phone, while a built-in AC power limiter caps grid draw so you squeeze the most out of every sunny hour.
Your life, with the EG4 24K Hybrid Multizone Mini-Split
Heating and cooling eats up more energy than almost anything else in your home — and it's usually the last thing your solar can cover. So even with panels on the roof, you brace for the bill every summer and winter.
The EG4 24K Hybrid Multizone Mini-Split changes that math. Because it takes solar DC directly — no separate inverter needed — it turns your panels into comfort, heating and cooling your home straight from the sun. When clouds roll in, it blends in grid power without missing a beat; when the sun's out, it runs on free energy first.
From one outdoor unit, it keeps up to three rooms exactly how you like them — the bedroom cool at night, the living room warm in the morning, the office comfortable all day, each on its own setpoint.
And it's efficient where it matters. With a SEER2 of 22 and clean R32 refrigerant, it sips energy while it works, heating down to 5°F and cooling through 125°F heat. Quiet indoor heads mean you feel the comfort without hearing the equipment.
Run the whole system from your phone, cap how much it ever pulls from the grid, and watch your biggest utility expense shrink. That's what solar-powered comfort feels like.
The EG4 24K Hybrid Multizone Mini-Split in a nutshell:
-
Hybrid AC/DC — runs on solar, grid, or both, solar first.
-
Up to three zones from one outdoor unit — mix 12K, 18K, and 24K indoor heads.
-
24,000 BTU heating and cooling at SEER2 22 — efficient, year-round comfort.
-
R32 refrigerant with full app control — modern, clean, and managed from anywhere.
EG4 24K Hybrid Multizone Mini-Split specifications
Performance
-
Cooling capacity: 24,000 BTU/h
-
Heating capacity: 24,000 BTU/h
-
SEER2: 22
-
Refrigerant: R32
Power Input
-
AC voltage: 208–240 VAC, 60 Hz
-
DC solar input: 150–410 VDC
-
Hybrid operation: solar, grid, or blend (automatic solar priority)
-
AC power limiter: built-in (caps grid draw)
Zones & Air Handlers
-
Max indoor air handlers: 3 (minimum 2 required)
-
Compatible heads: 12K, 18K, 24K (sold separately)
-
Zone configurations: 12K+12K, 12K+18K, 18K+18K (2-zone); 12K+12K+12K (3-zone)
-

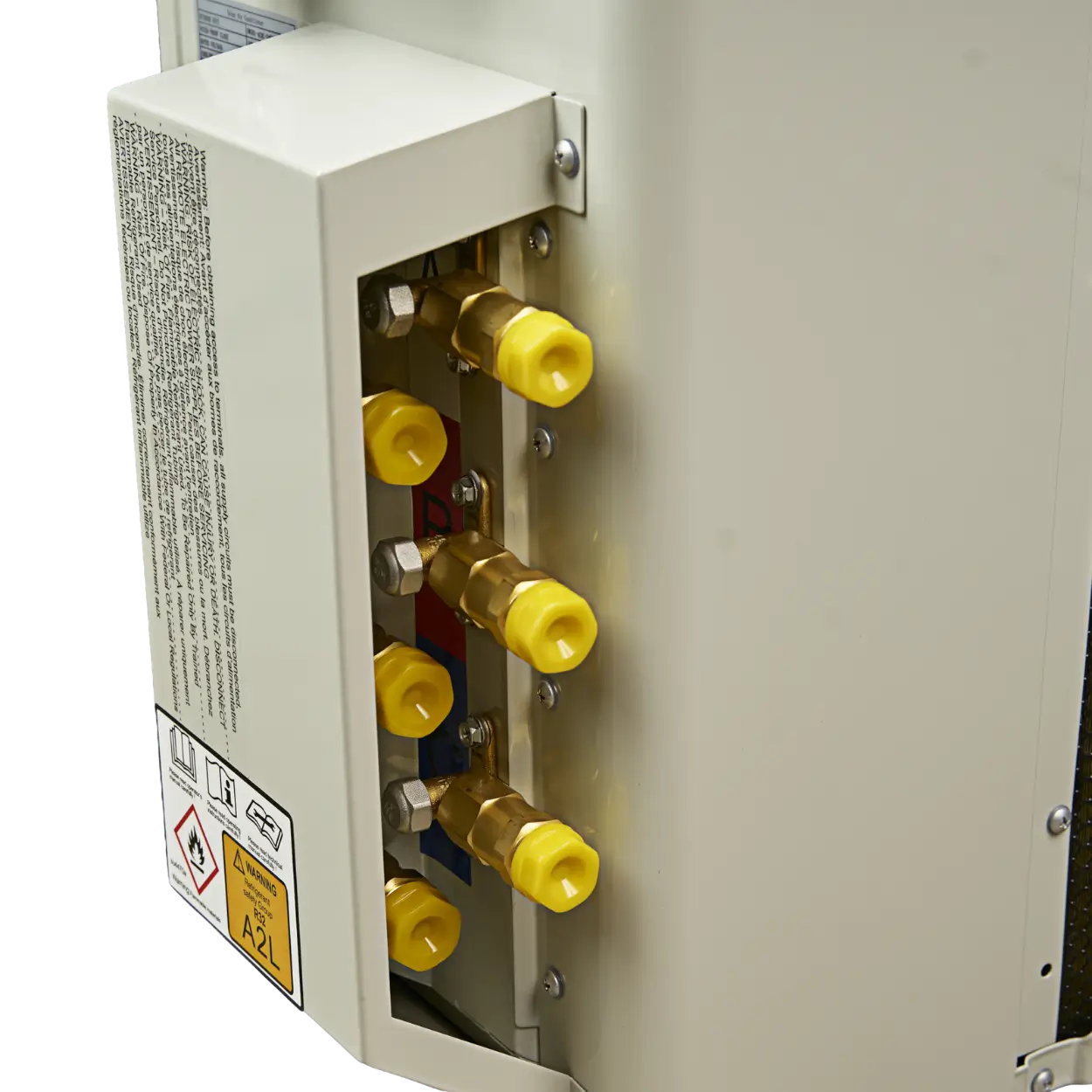

Per zone: 1 line set + 1 comm cable per indoor unit

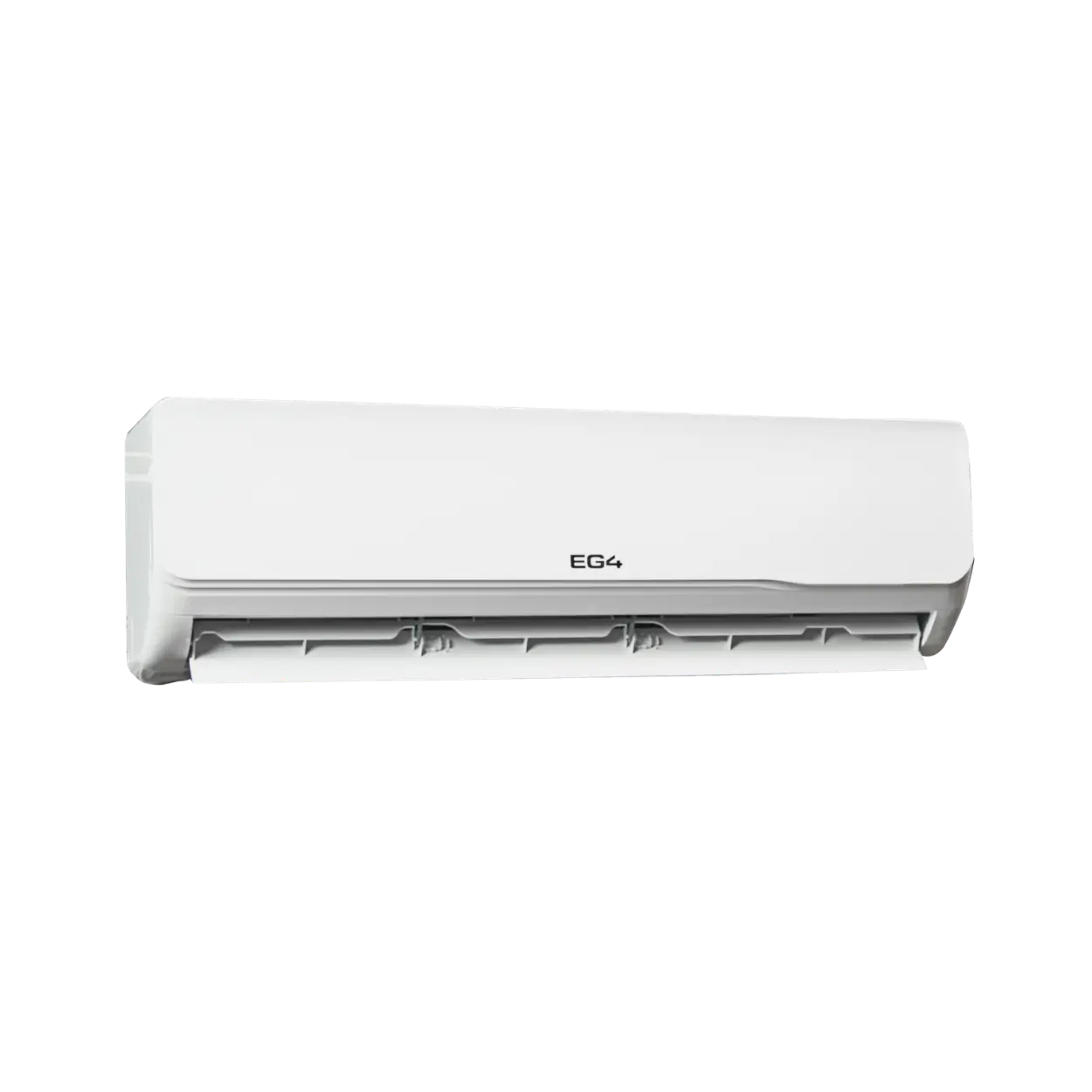

Indoor Air Handler Options
-

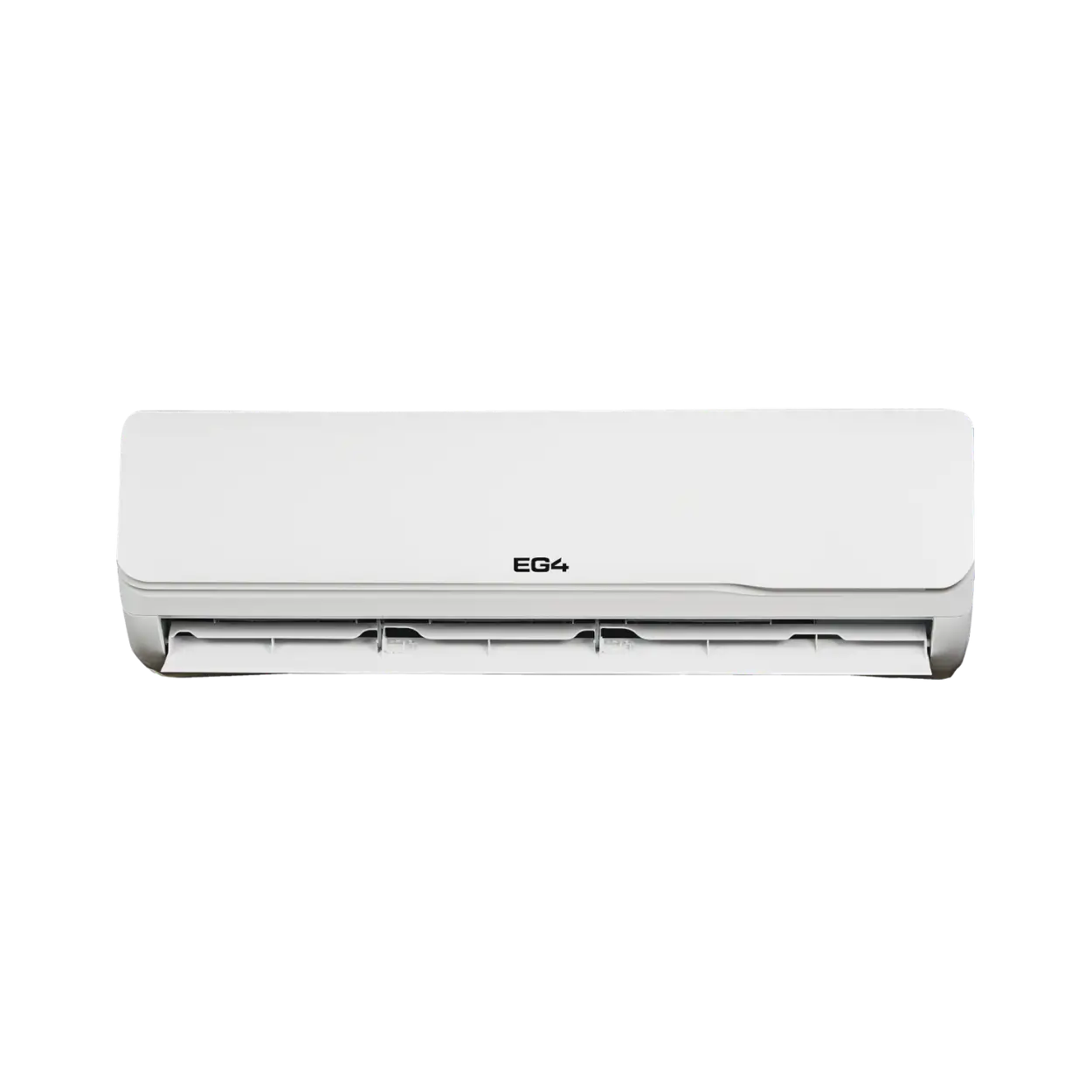

12K: 12,000 BTU · 365 CFM · 43 dBA · up to 500 ft²
-
18K: 18,000 BTU · 559 CFM · 46 dBA · up to 800 ft²
-
24K: 24,000 BTU · 765 CFM · 50 dBA · up to 1,250 ft²
Operating Range
-
Cooling: 5–125°F (-15–52°C)
-
Heating: 5–75°F (-15–24°C)

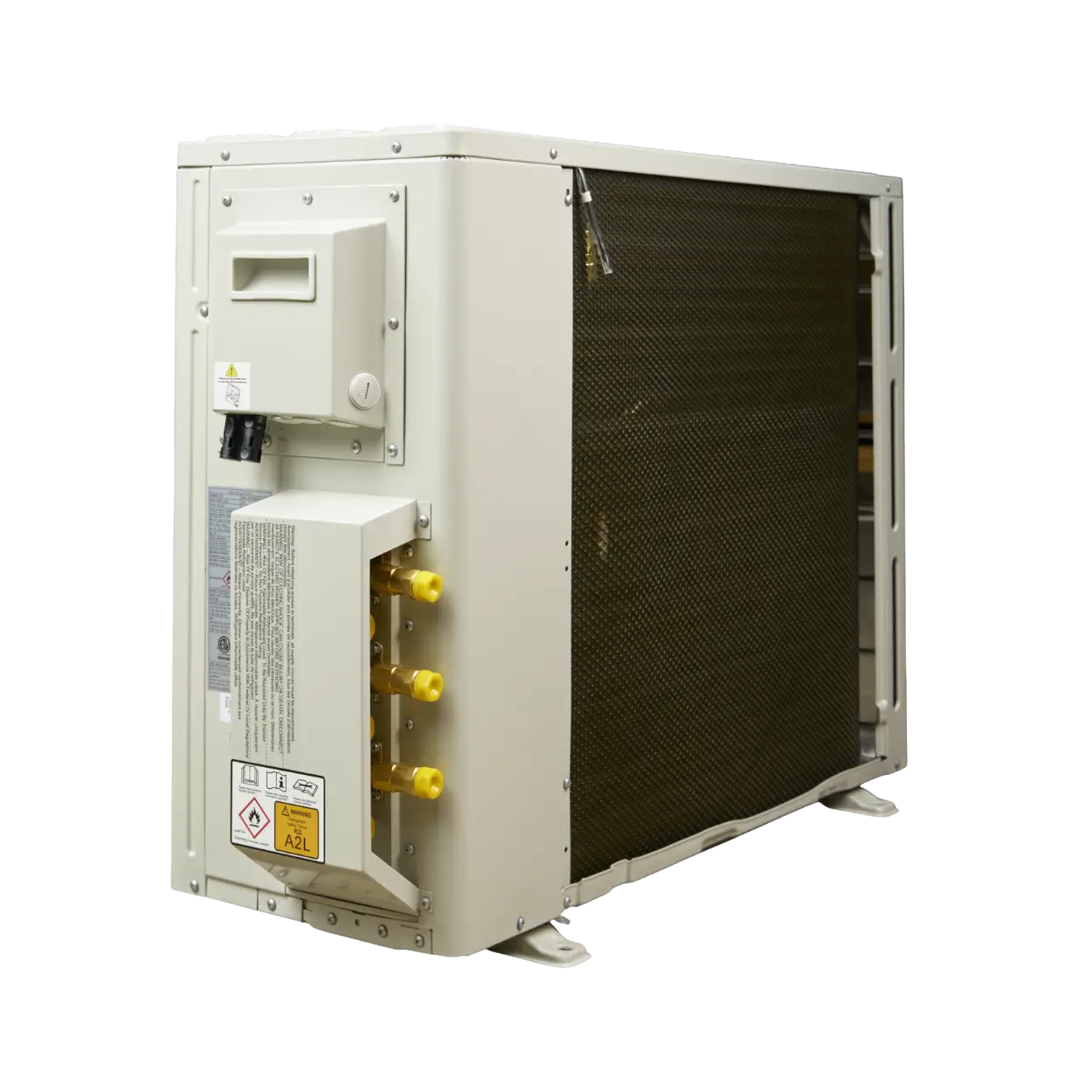

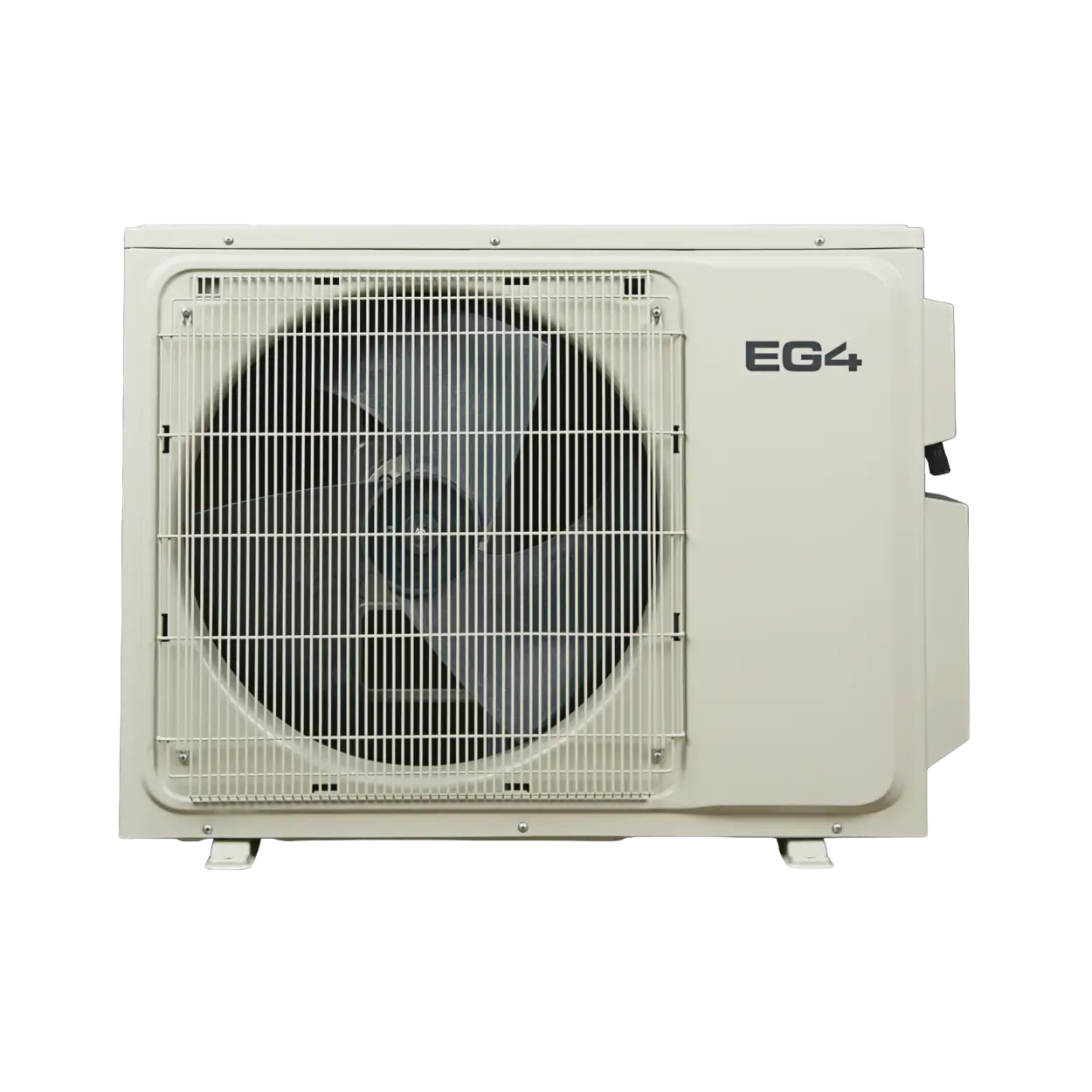

Outdoor Unit
-
Dimensions: 34.96 × 12.5 × 27.55 in
-
Weight: 126 lbs
-
Control: full app monitoring and control
Warranty & Certification
-
Warranty: 5-year limited
-
Certifications: AHRI certified; ETL / Intertek tested
-
Brand: EG4
Let the experts help you find your perfect EG4 24K Hybrid Multizone Mini-Split setup
Not sure which mix of indoor heads your rooms need, or how to size the EG4 24K Hybrid Multizone Mini-Split for your solar? That's exactly what we're here for. Our team works with these systems every day, and we'll help you plan your zones and line sets right the first time — no guesswork.
Chat via email — support@kratopower.com
Chat on the phone — +1 888-855-7286
EG4 24K Hybrid Multizone Mini-Split documents and materials
Everything you need to spec, install, and register your EG4 24K Hybrid Multizone Mini-Split:
Safety note: The EG4 24K Hybrid Multizone Mini-Split is high-voltage HVAC equipment that involves refrigerant and solar DC wiring. Everything on this page is provided for general information only and is not professional installation, electrical, or HVAC advice. Installation must always be carried out by a licensed HVAC installer and electrician (refrigerant work requires EPA certification), in line with local codes and the manufacturer's manual. Every home is different, so if you're ever in doubt, please consult a qualified professional before purchase or installation. You use this product and the information here at your own risk.
