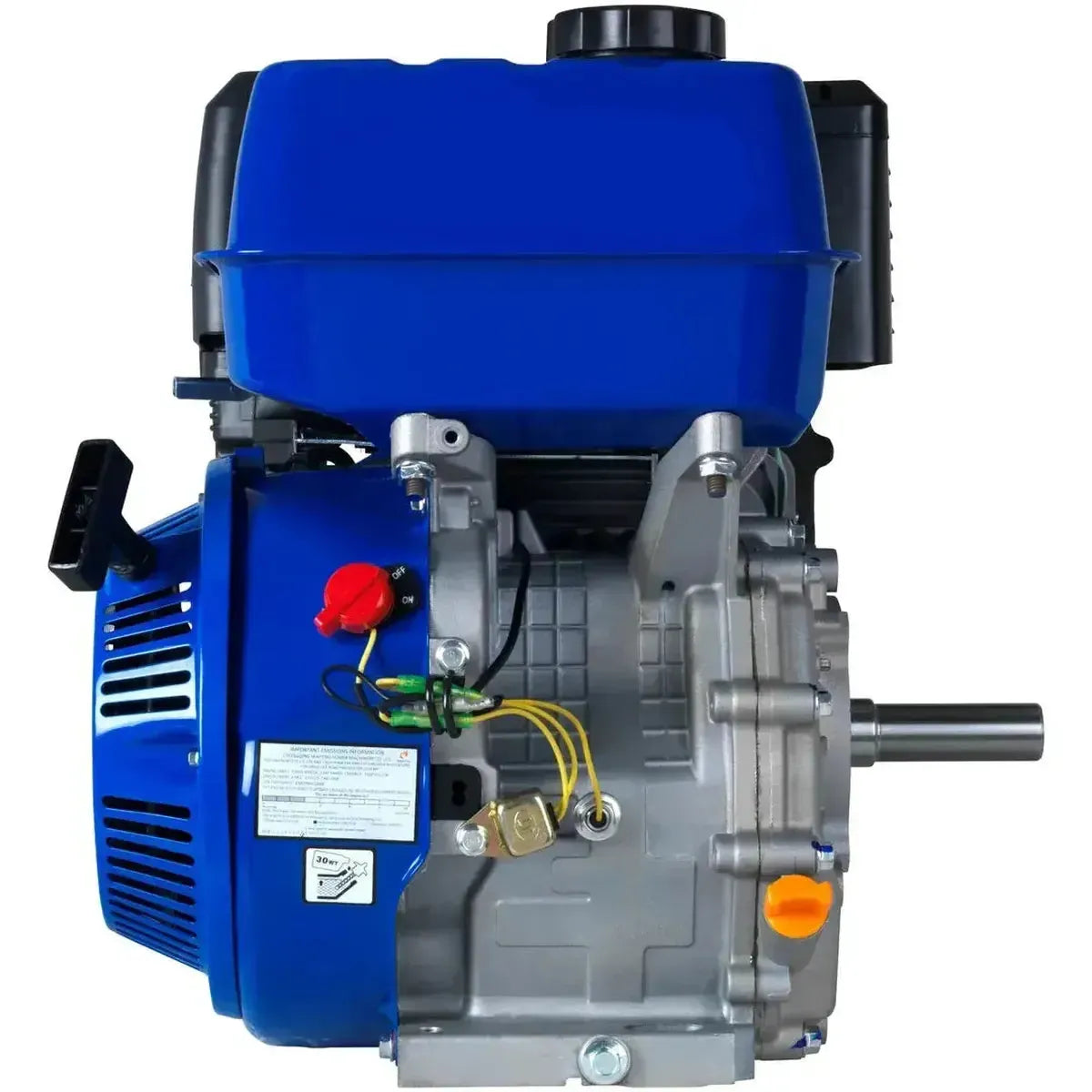

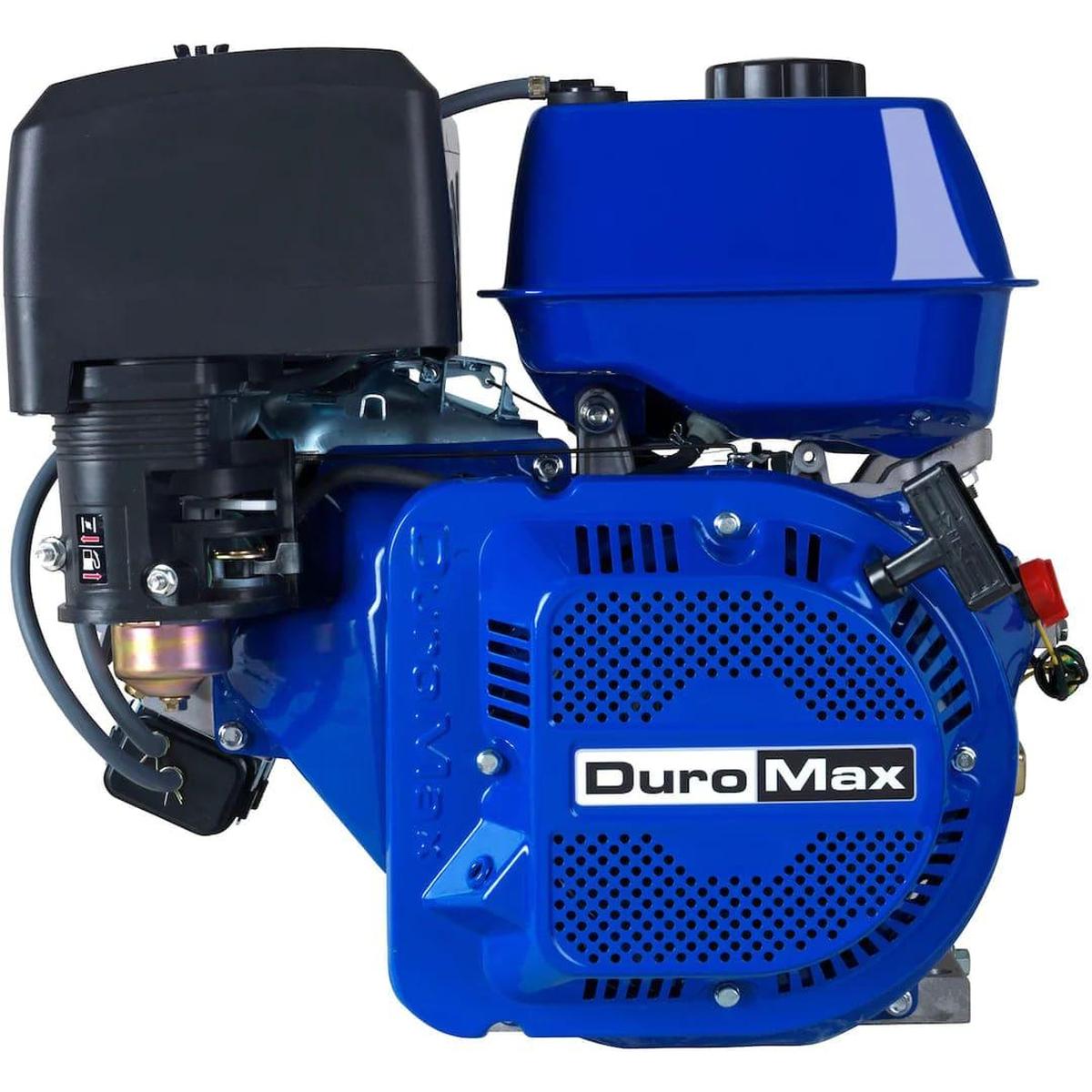

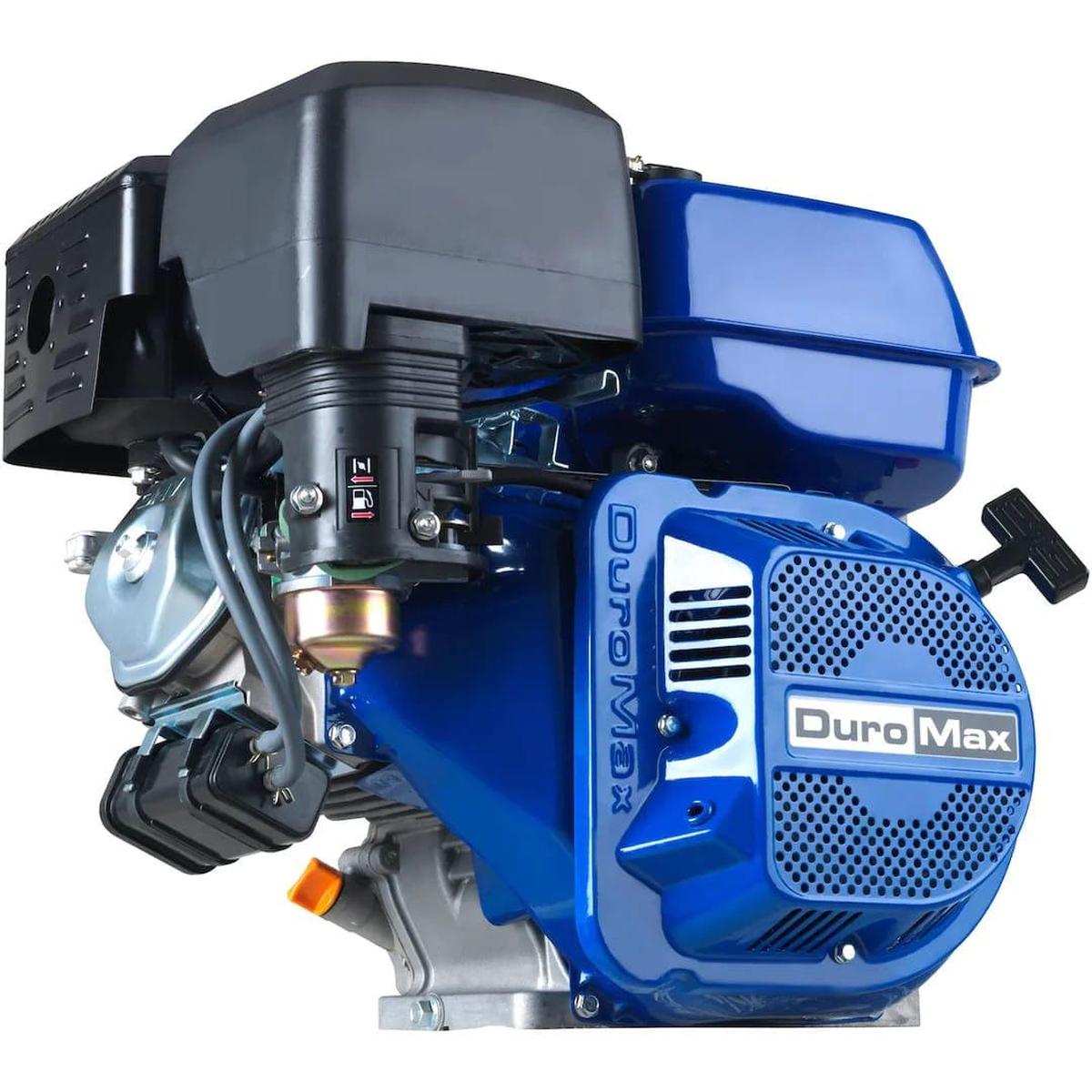

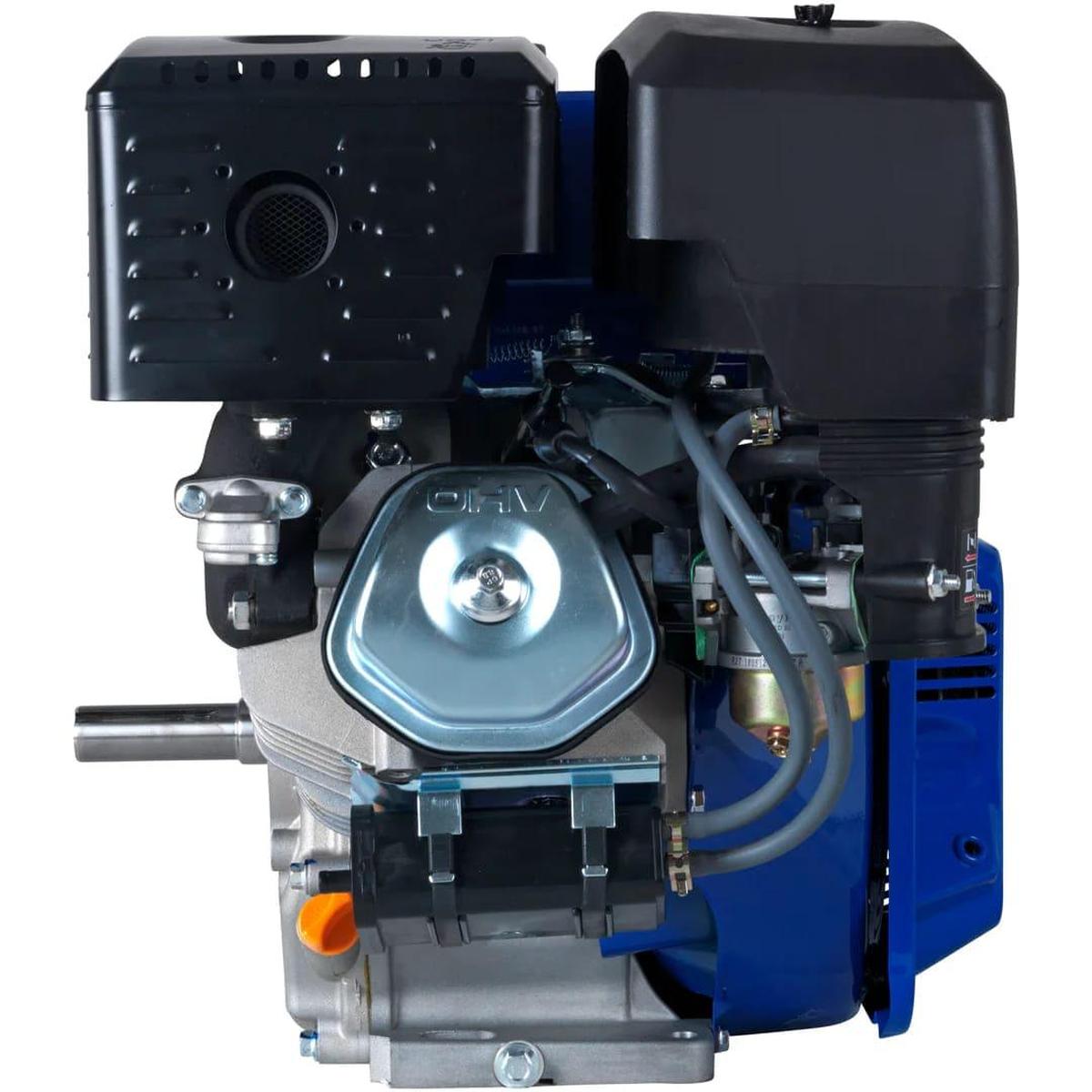

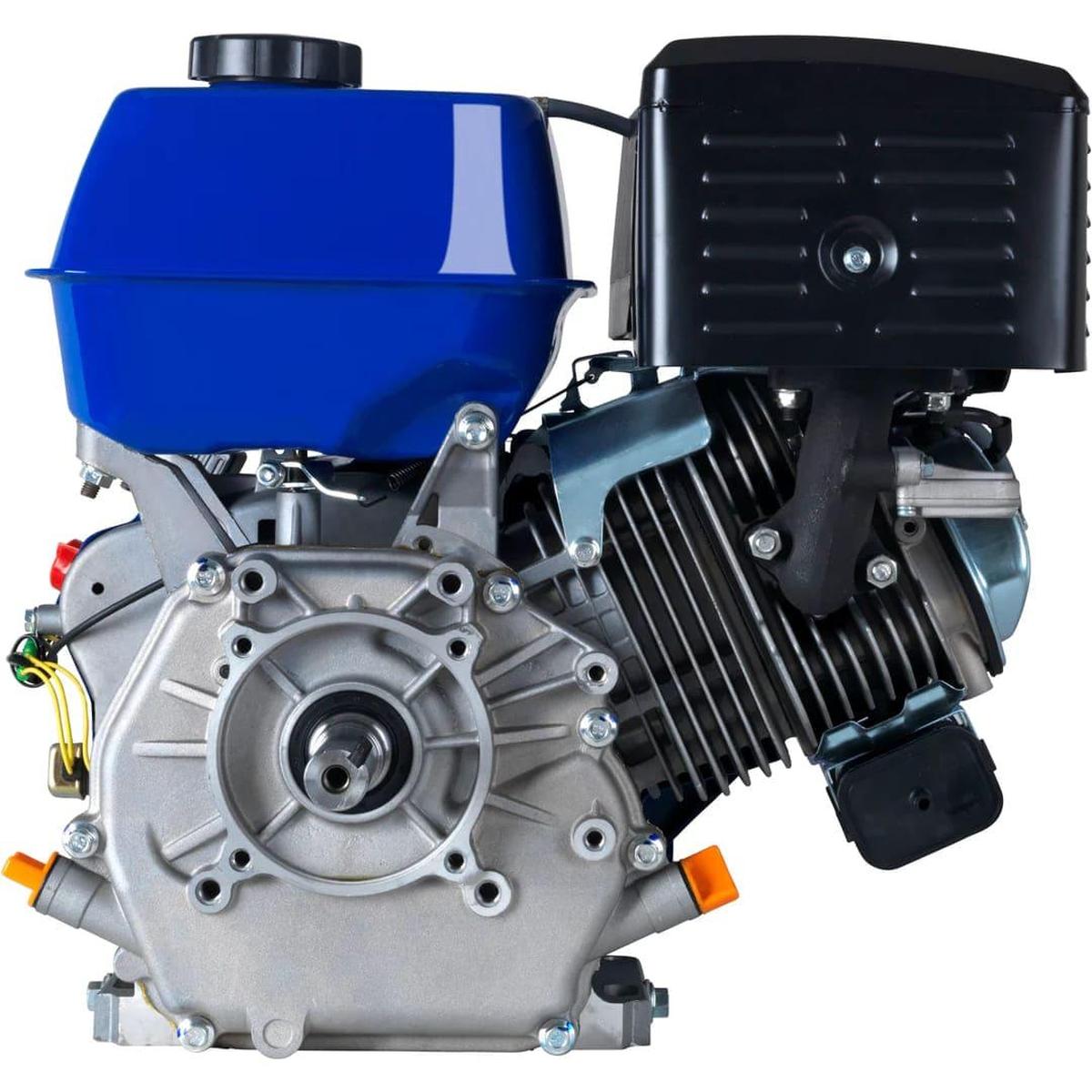

A side front view of the DuroMax XP16HP engine

DuroMax XP16HP 420cc 1'' Shaft Recoil Start Gas Powered Engine

SKU XP16HP
by DuroMax

✔ US Based Authorized DuroMax Dealer

✔ No Sales Tax - Except IN

✔ Ships in 4-5 Business Days with Free Shipping

✔ Dealer Warranty Included

✔ Post-Purchase Customer Support & 30-Day Returns

✔ CALL US NOW! We will BEAT any Price!

✔ Need someone to install? We find you the LOWEST PRICE FOR INSTALLS.

$369.99

Notify me when back in stock

All items are in stock and ready to ship. All items ship in 1 business day. The estimated time of arrival is 4-5 business days.

Find a better price somewhere else? Well... we will BEAT their price to get you the lowest pricing, we will find and SPEAK with a local installer, AND you get our post-purchase customer support. CALL US NOW for all of these benefits! CALL NOW!

Achieve Off-Grid Power.

DuroMax XP16HP Overview

At the forefront of our medium-sized engine offerings, the DuroMax XP16HP stands as a testament to the seamless fusion of lightweight design and commanding power. This exceptional engine, featuring a 420cc 4-stroke OHV powerhouse, is meticulously engineered to address the multifaceted needs of diverse medium-duty applications. From propelling go karts and driving pressure washers to serving in trailer-mounted mobile car washes, log splitters, roto tillers-cultivators, and water/trash transfer pumps, the DuroMax XP16HP is a versatile and reliable solution.

One of the distinguishing attributes of the DuroMax XP16HP is its substantial 1.75-gallon fuel tank, strategically designed to ensure extended runtimes. This feature proves invaluable, providing a consistent and uninterrupted power supply during a spectrum of tasks. The user experience is further elevated by the inclusion of the E-Z Pull Recoil Starter, simplifying engine initiation and enhancing overall operational efficiency.

Importantly, the DuroMax XP16HP holds endorsements from both the Environmental Protection Agency (EPA) and the California Air Resources Board (CARB). This dual approval underscores the engine's unwavering commitment to compliance with rigorous safety and environmental standards, making it a responsible choice for environmentally conscious users.

In the realm of engines, the DuroMax XP16HP embodies the essence of performance and convenience. Elevate your endeavors with a powerhouse that transcends expectations, delivering a harmonious blend of reliability, efficiency, and regulatory adherence, epitomized by the DuroMax XP16HP.

DuroMax XP16HP

  • 420cc 4 Stroke OHV engine
  • Large 1.75 Gallon Fuel Tank
  • Runs on Standard 87 Octane Gasoline
  • Start System: E-Z Pull Recoil Starter
  • Air Cleaner: Dual, Semi-dry, Oil Bath
  • EPA and CARB Approved for Safe Mandated Use
  • Applications: Go Karts, Pressure Washers, Trailer Mounted - Mobile Carwashes, Log Splitters, RotoTillers - Cultivators, Water/Trash Transfer Pump

Warranty

  • 3-Year Limited Factory Warranty
  • 30 Day Satisfaction Guaranteed

What's In The Box

  • DuroMax XP16HP Engine
  • Owners Manual

DuroMax XP16HP Specifications

Brand DuroMax Power Equipment
SKU XP16HP
Engine Type 4-Stroke
Valve Type OHV
Engine Cooling Type Forced Air
Displacement 420cc
Bore 90mm
Stroke 66mm
Max Output 3600 RPM
Max Torque 28.5 Nm / 23.34 ft/lb.
Compression Ratio 8.8:1
Shaft Orientation Horizontal
Shaft Size 1" Diameter, 3.48" Long, 1/4" x 2.2" Keyway
Shaft End 3/8" Size 24 UNF - Drilled and Tapped
Shaft Rotation Counter Clockwise
Measurement from Center of Shaft to Base 5"
Fuel Tank Capacity 1.75 Gallons
Fuel Types 87+ Octane Gasoline
Fuel Delivery System Carburetor
Average Run Time 1/2 Gallon Per Hour (at 1/2 load)
Starting Type Recoil
Recoil Start Yes
Cast Iron Sleeve Yes
Bearing Type Stainless Steel Ball Bearing
Oil Cooling Type Splash
Oil Capacity 37.2 fluid oz.
Recommended Oil 10W-30
Recommended Oil Types Blended, Conventional, or Synthetic
Product Dimensions 18"-Long x 16.5"-Wide x 17.7"-High
Product Weight 68-lbs
UPC 891784001105
Warranty 3 Year
EPA Certified Yes
CARB Certified Yes
50 State Emissions Yes
