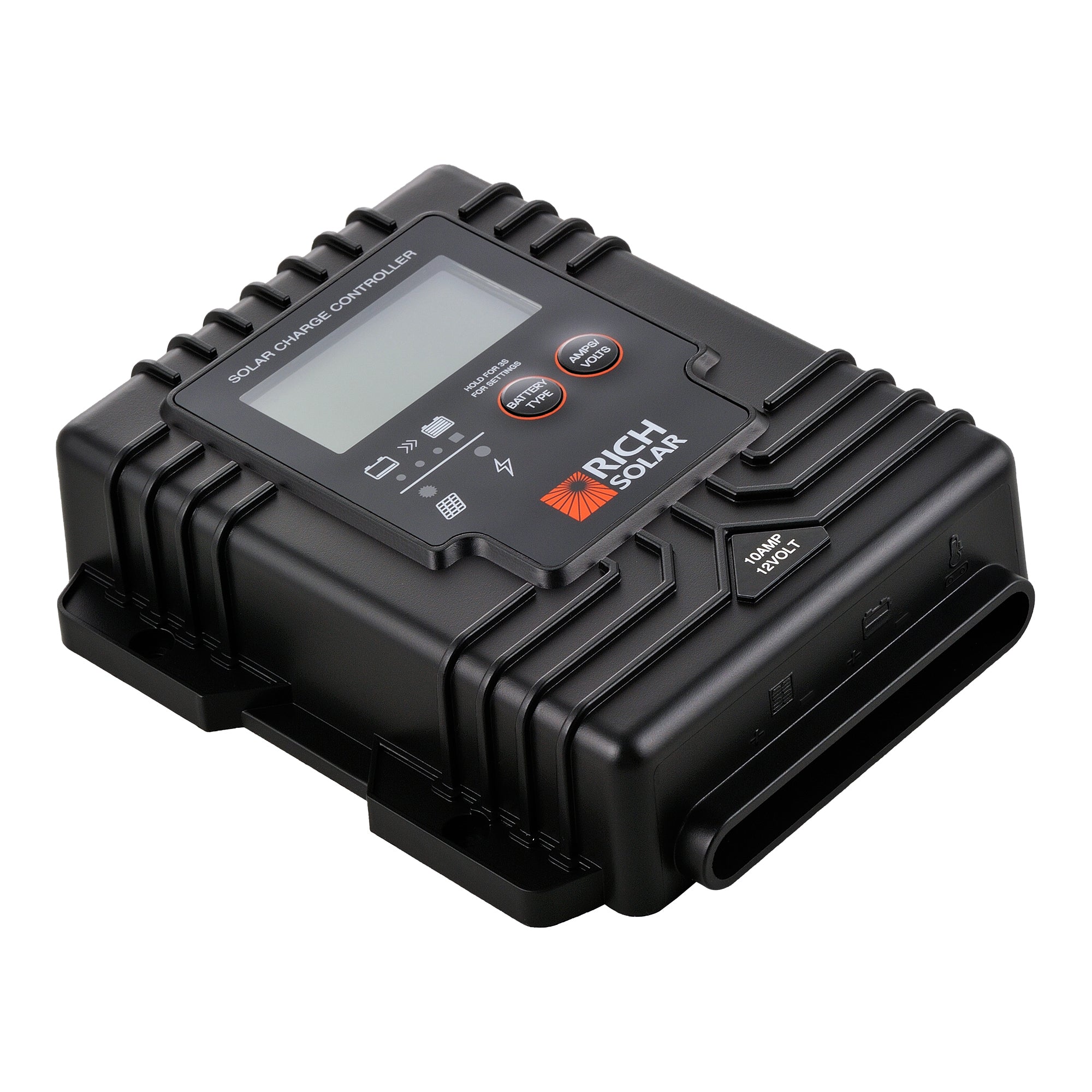

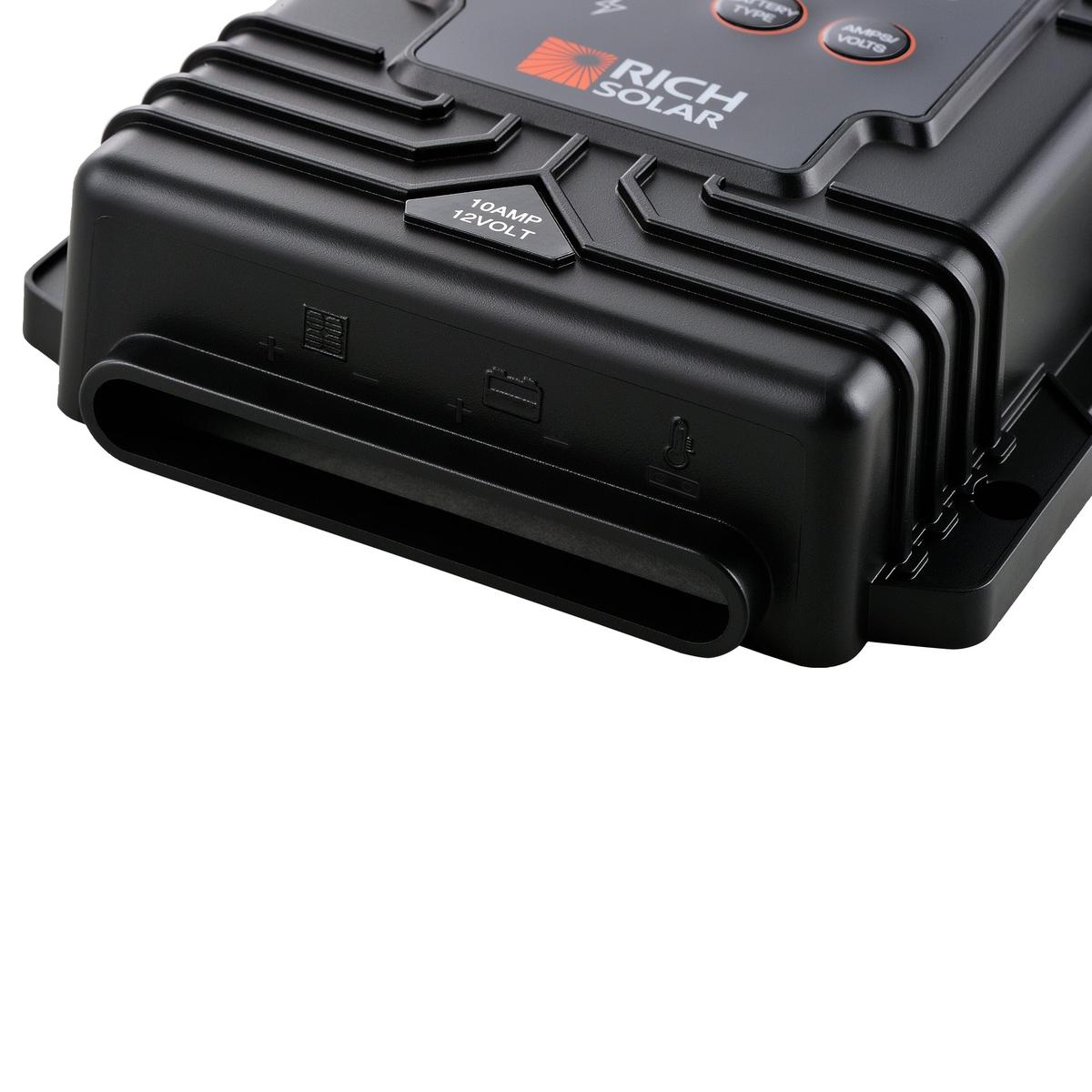

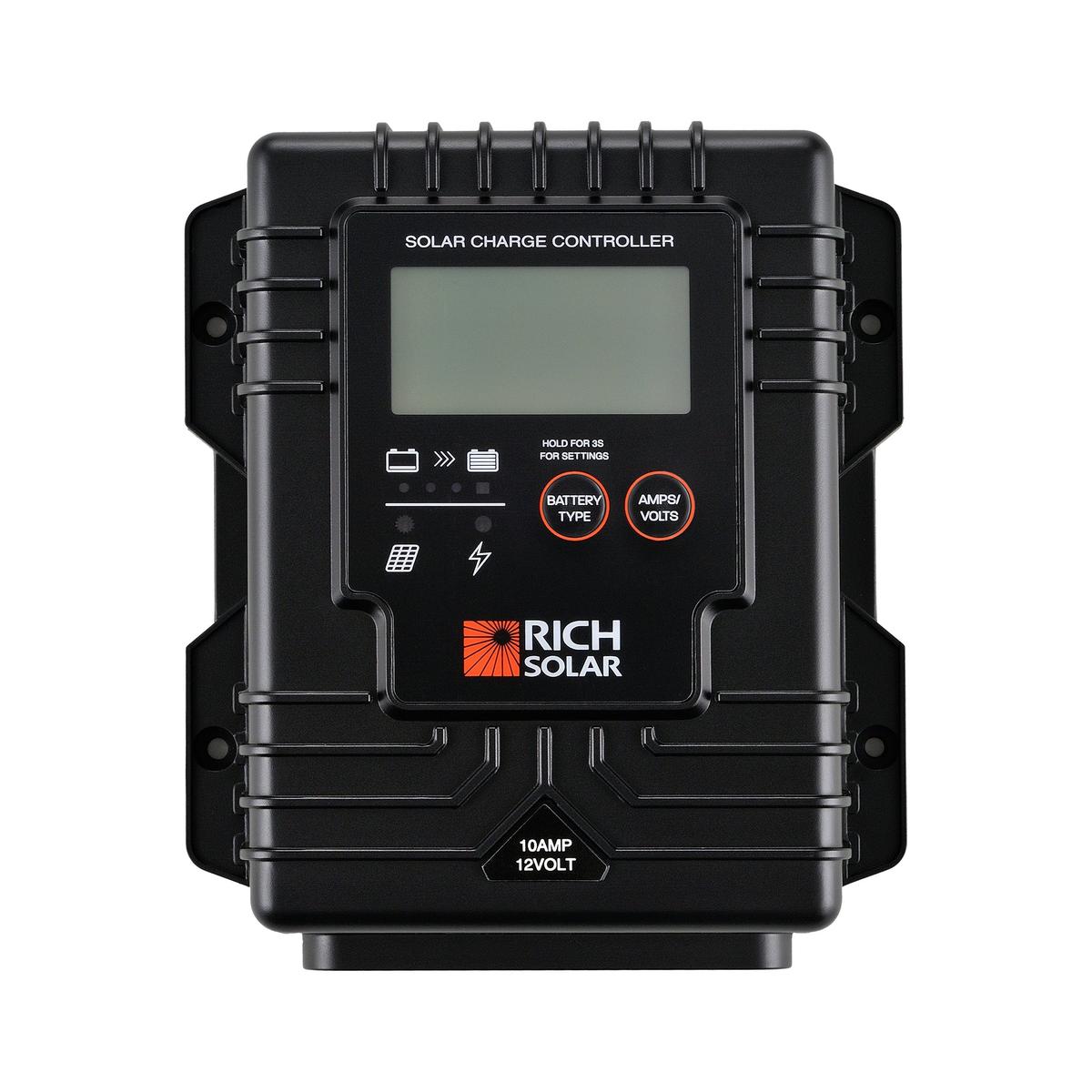

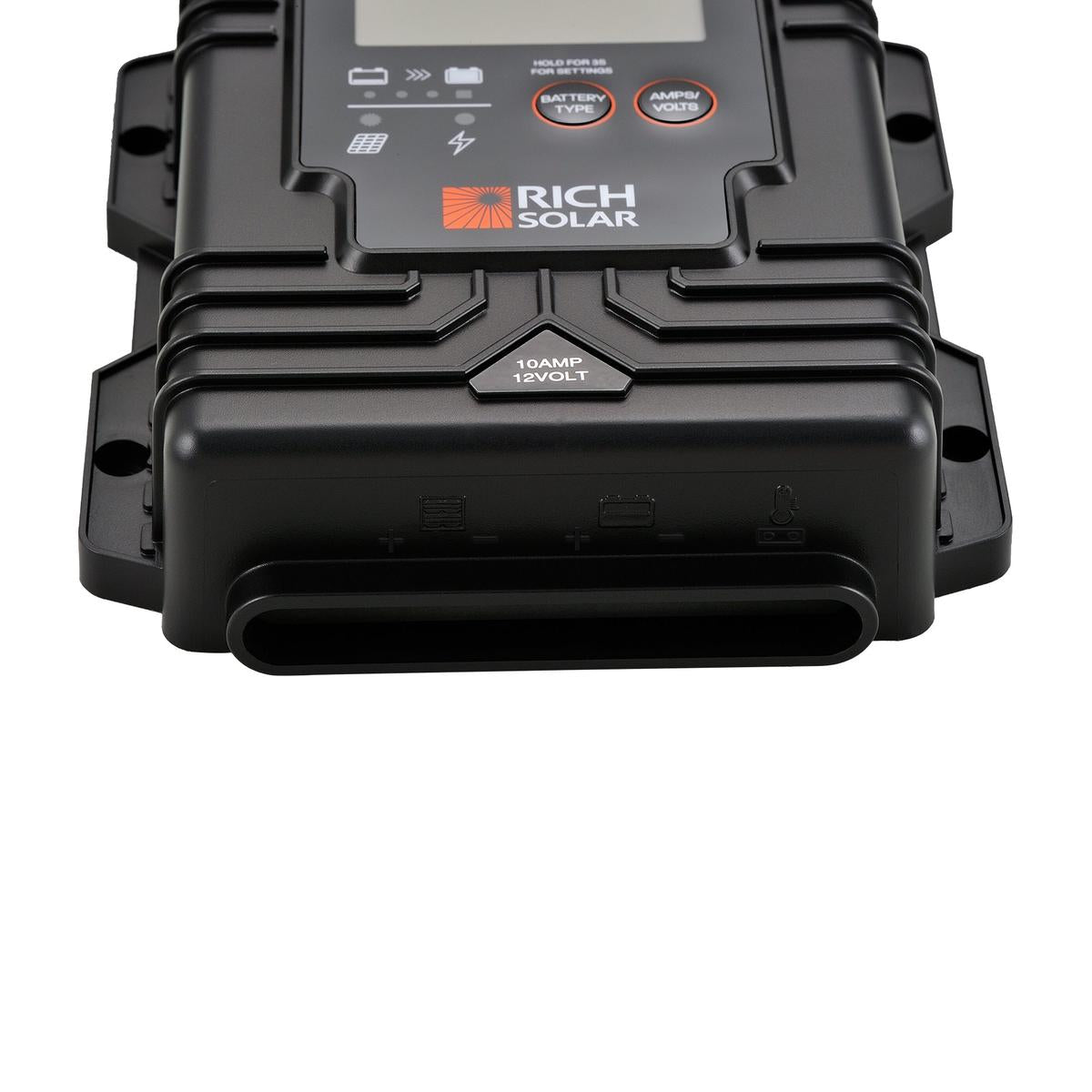

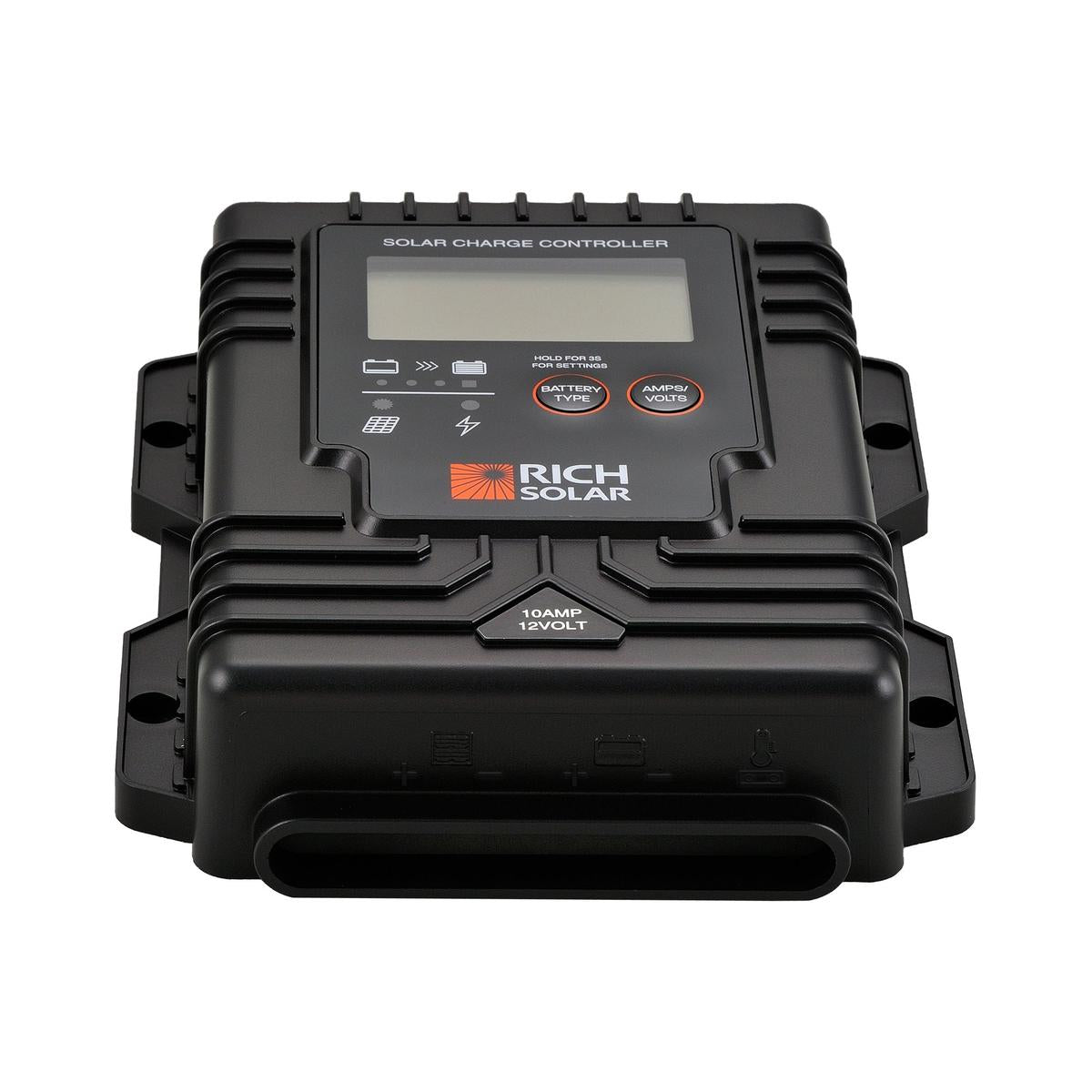

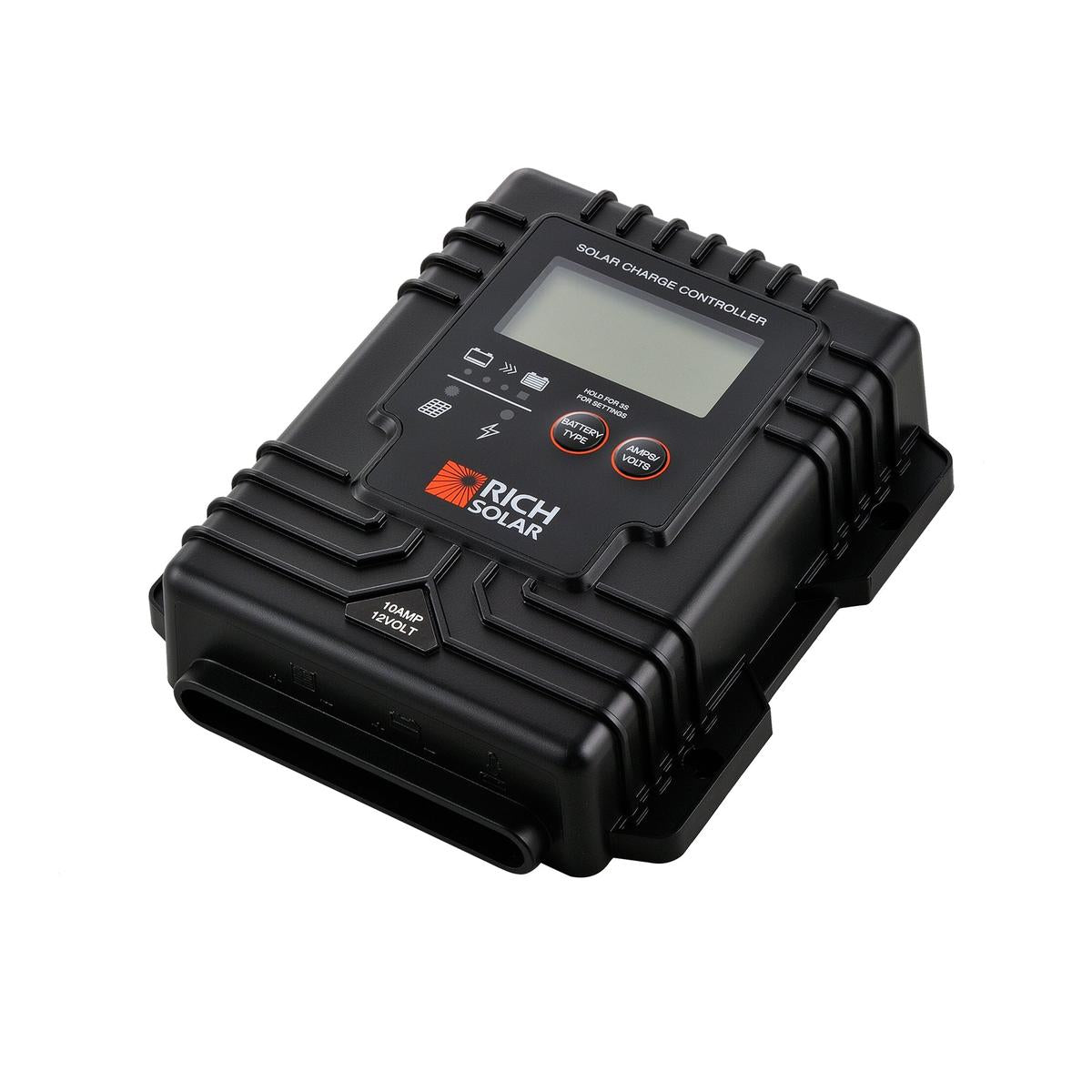

BRAVO Waterproof 10 | 10 Amp Waterproof PWM Solar Charge Controller | Waterproof 10A 12V PWM Solar Controller for RVs, Trailers, Campers, Vans, Boats, Off-Grid | #1 Waterproof Solar Controller

BRAVO Waterproof 10 | 10 Amp Waterproof PWM Solar Charge Controller | Waterproof 10A 12V PWM Solar Controller for RVs, Trailers, Campers, Vans, Boats, Off-Grid | #1 Waterproof Solar Controller

SKU RS-PWM10WP
by RICH SOLAR

✔ US Based Authorized RICH SOLAR Dealer

✔ No Sales Tax - Except IN

✔ Ships in 4-5 Business Days with Free Shipping

✔ Dealer Warranty Included

✔ Post-Purchase Customer Support & 30-Day Returns

✔ CALL US NOW! We will BEAT any Price!

✔ Need someone to install? We find you the LOWEST PRICE FOR INSTALLS.

Save $33.00
$59.99
$26.99

Notify me when back in stock

All items are in stock and ready to ship. All items ship in 1 business day. The estimated time of arrival is 4-5 business days.

Find a better price somewhere else? Well... we will BEAT their price to get you the lowest pricing, we will find and SPEAK with a local installer, AND you get our post-purchase customer support. CALL US NOW for all of these benefits! CALL NOW!

Achieve Off-Grid Power.

Features

  • PWM technology, switching control by MOSFET
  • Common Positive Grounding connection
  • High efficiency and low power consumption
  • Battery type setting via DIP switch
  • Smart charging control
  • Charging time management

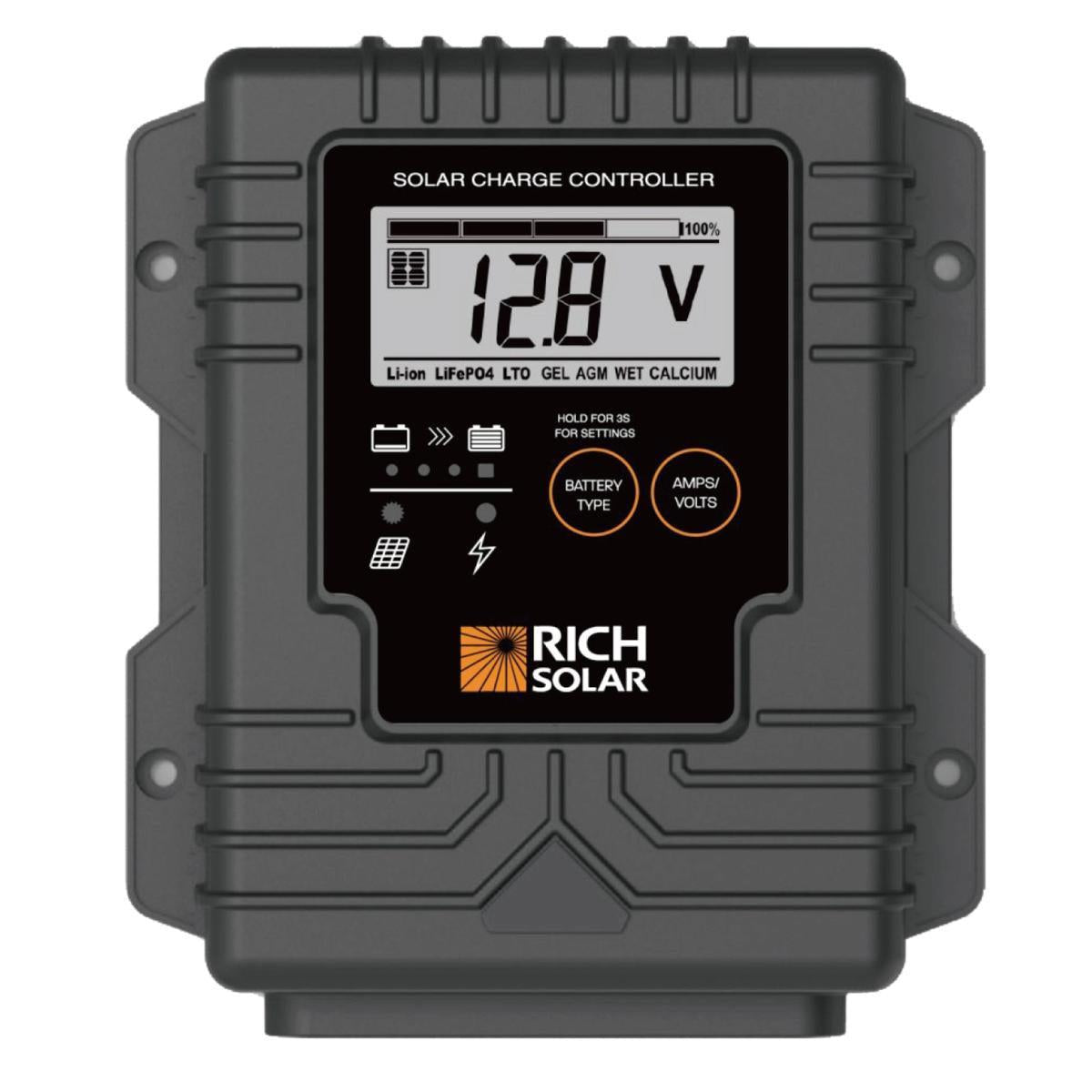

  • LED indication for the battery condition and charging status
  • Thermal protection
  • No sparks
  • Waterproof
  • Solid-duty cables
  • Corrosion-resistant terminals and connectors.
  • Conformal coating supplied to the inside board against moisture
  • Includes a port for an external battery temperature sensor (BTS - optional)
  • Suitable for most of the rechargeable Lead acid battery, including Flooded (WET), AGM, GEL, Lithium (LiFePO4) battery
  • Designed according to CE standards, EMC, and FCC compliance
  • Overvoltage protection, short circuit protection, reverse polarity protection

Mounting the Device

The quickest and easiest way to mount the unit is to use the three plastic spacers and self-tapping screws supplied and mount the unit to a flat surface.

Specifications

  • Electrical Parameters

  • Rated solar panel amps: 10AMP Max.
  • Normal input Solar cell array voltage: 15-22VDC
  • Max. solar cell array voltage (output has no load): 25VDC Max.
  • The controller's lowest operating voltage (at solar or battery side): 8VDC Min.
  • Standby current consumption at night: 5mA Max.
  • Maximum voltage drop-Solar panel to battery: 0.25VDC Max.

  • Charging Characters

  • Minimum battery start charging voltage: 3VDC Min.
  • Soft start charging voltage: 3-10±0.2VDC
  • Soft start charging current (50% PWM duty): Up to 5AMP
  • Bulk charge voltage: 10-14±0.2VDC
  • Equalization charging voltage at 25 ℃: 15.5±0.2VDC
  • Equalization charging timer timed out: 2 Hours
  • Battery temperature compensation coefficient: -24mV/°C
  • Temperature compensation range: -20~+50°C

  • Protection

  • Over temperature protection during charging: 65°C

  • Electrical Parts

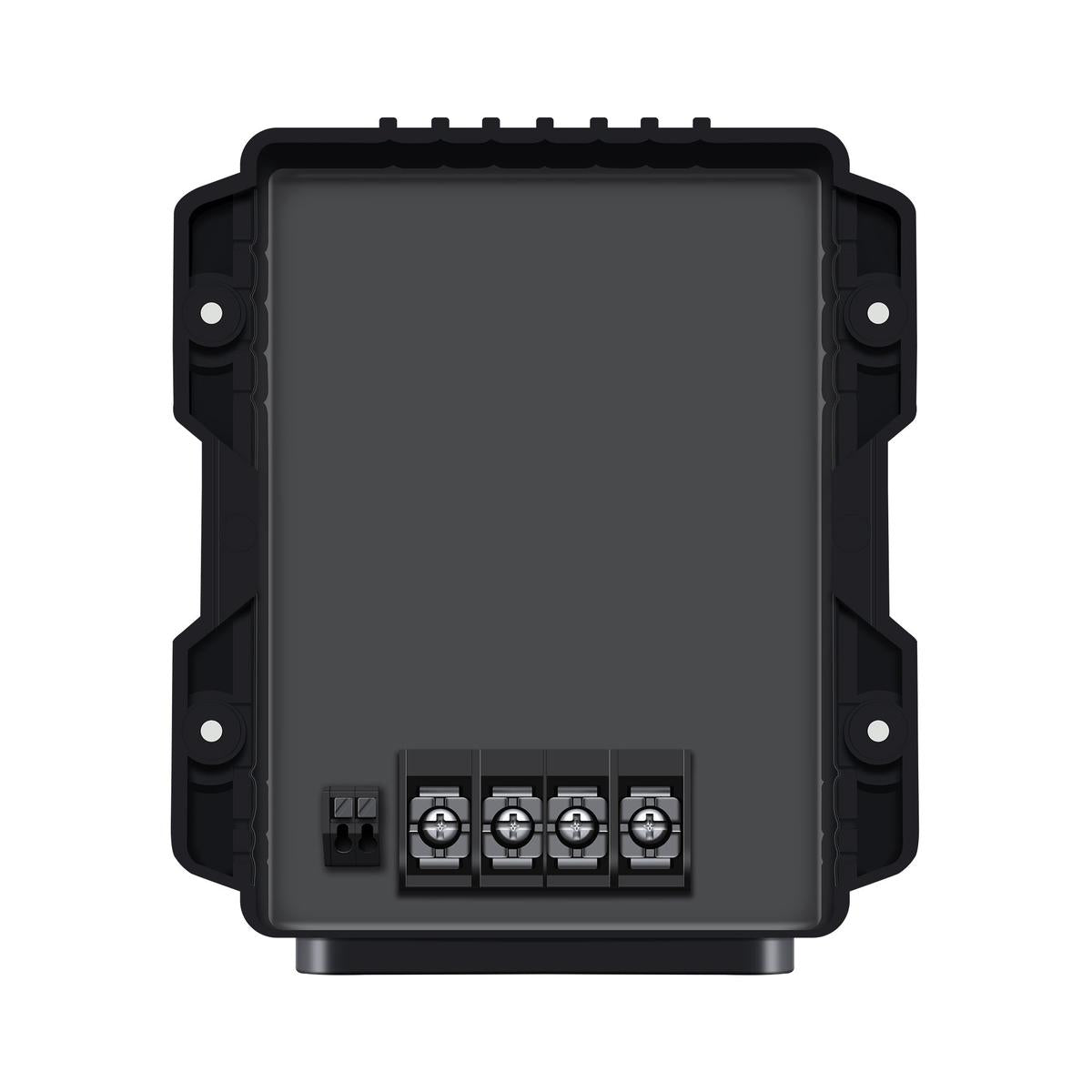

  • Input-output terminal: M5 terminals

  • Physical Parameters

  • Controller material: Plastic, Standard ABS
  • Power terminal maximum stranded wire size: #10AWG stranded-5mm²
  • Mounting: Vertical wall mounting
  • IP grade: IP65
  • Net weight: Approx. 0.3kg/0.66lb

  • Environmental Characteristics

  • Operating temperature: -25~50°C(-13～122℉)
  • Storage temperature: -40~85°C(-40～185℉)
  • Operating Humidity range: 100% no condensation
