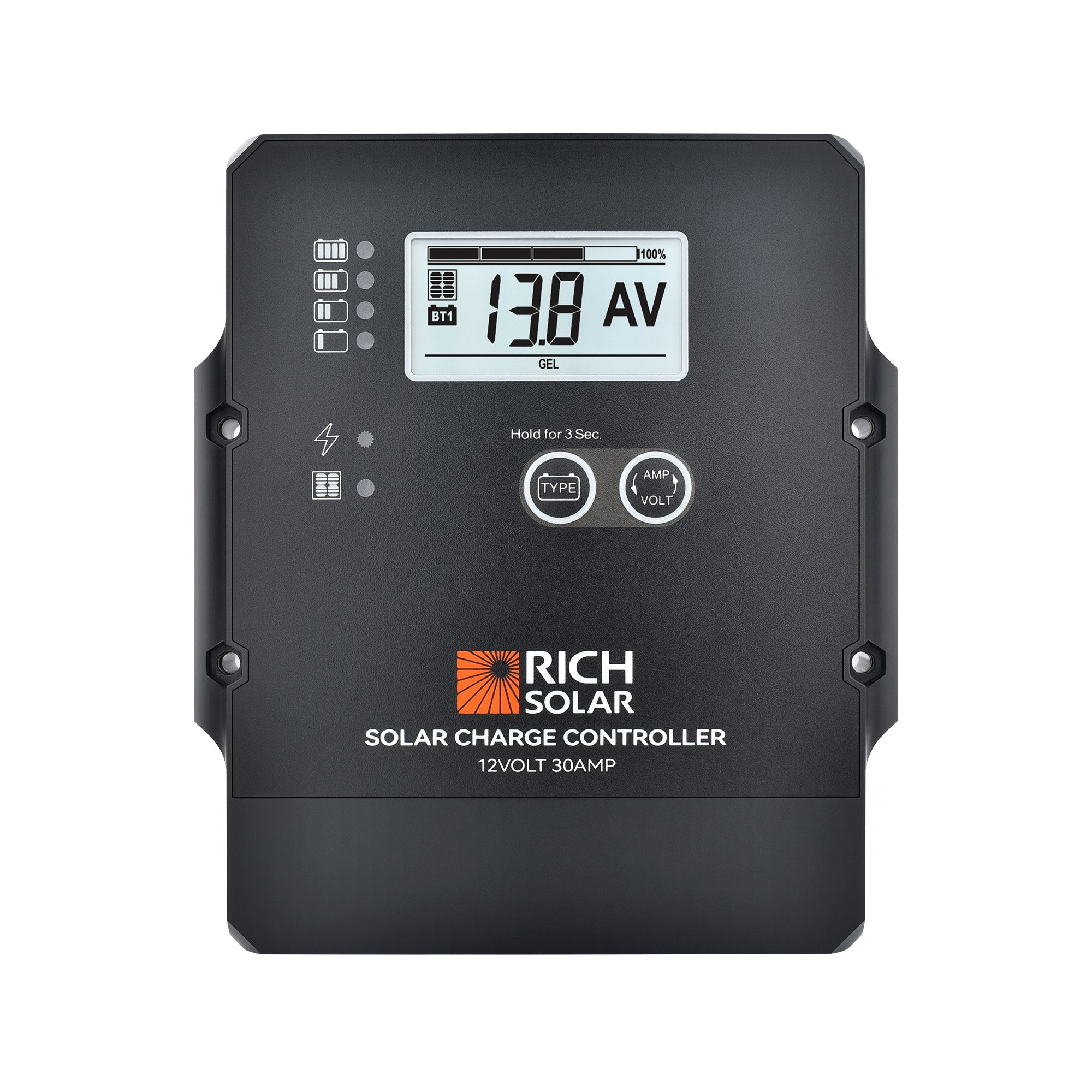

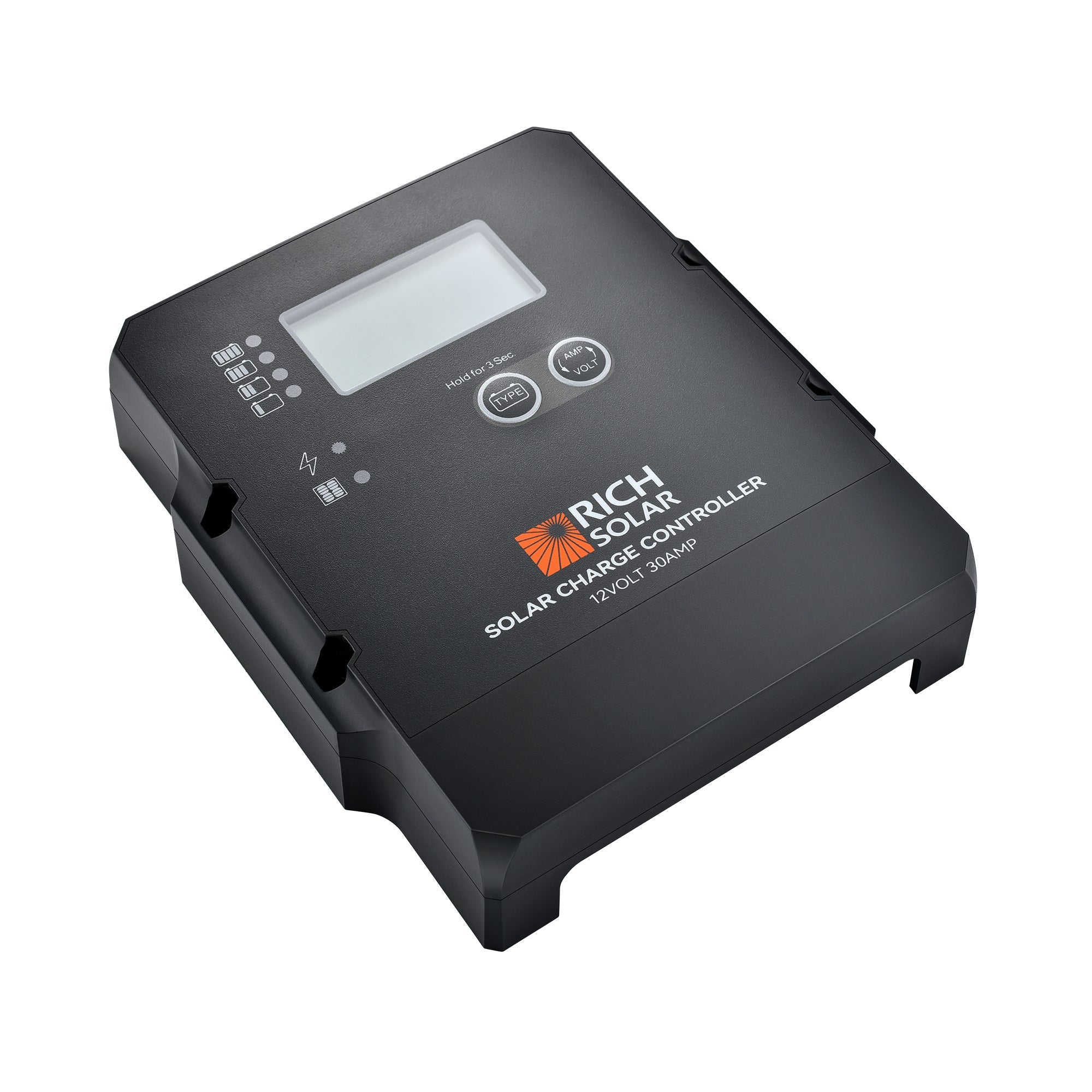

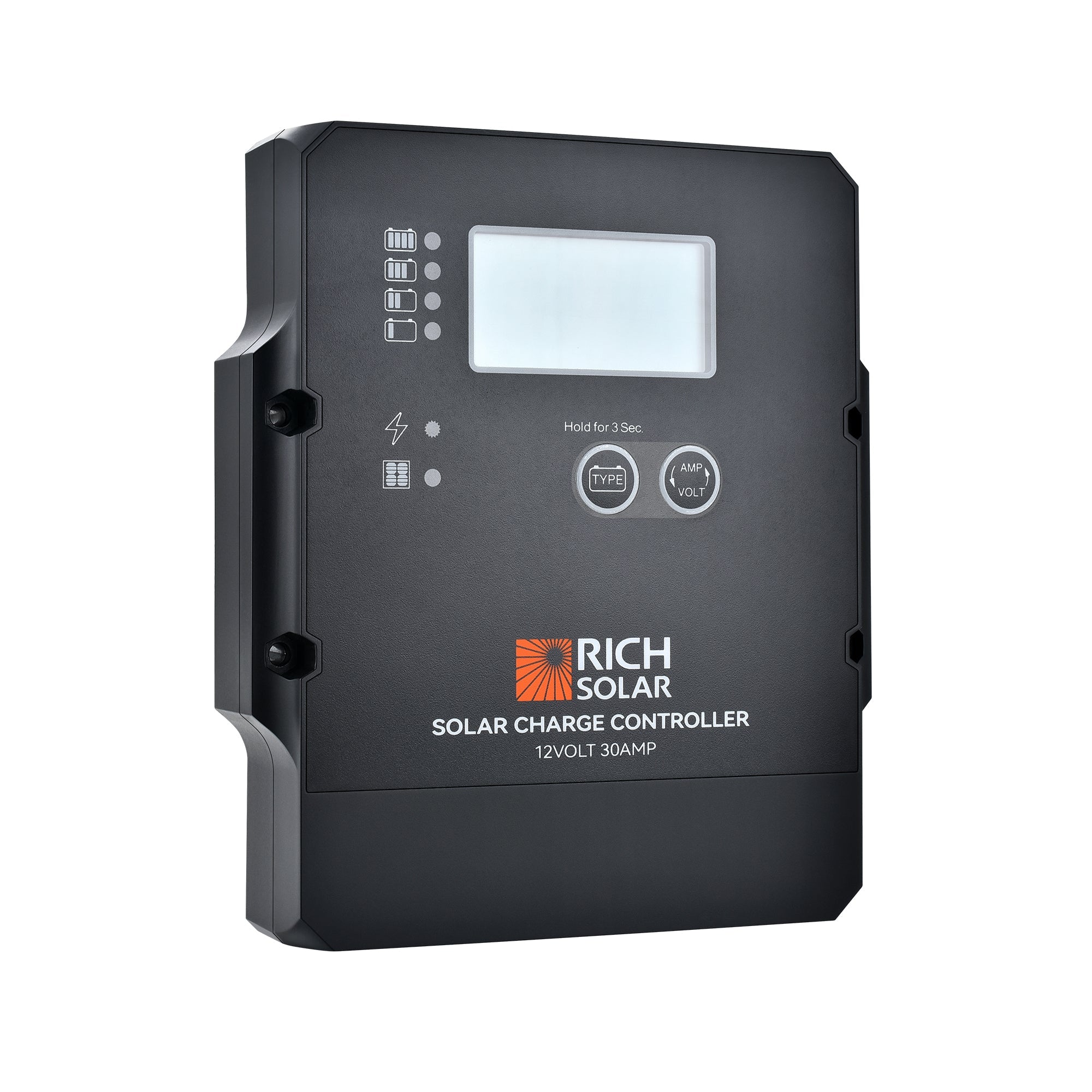

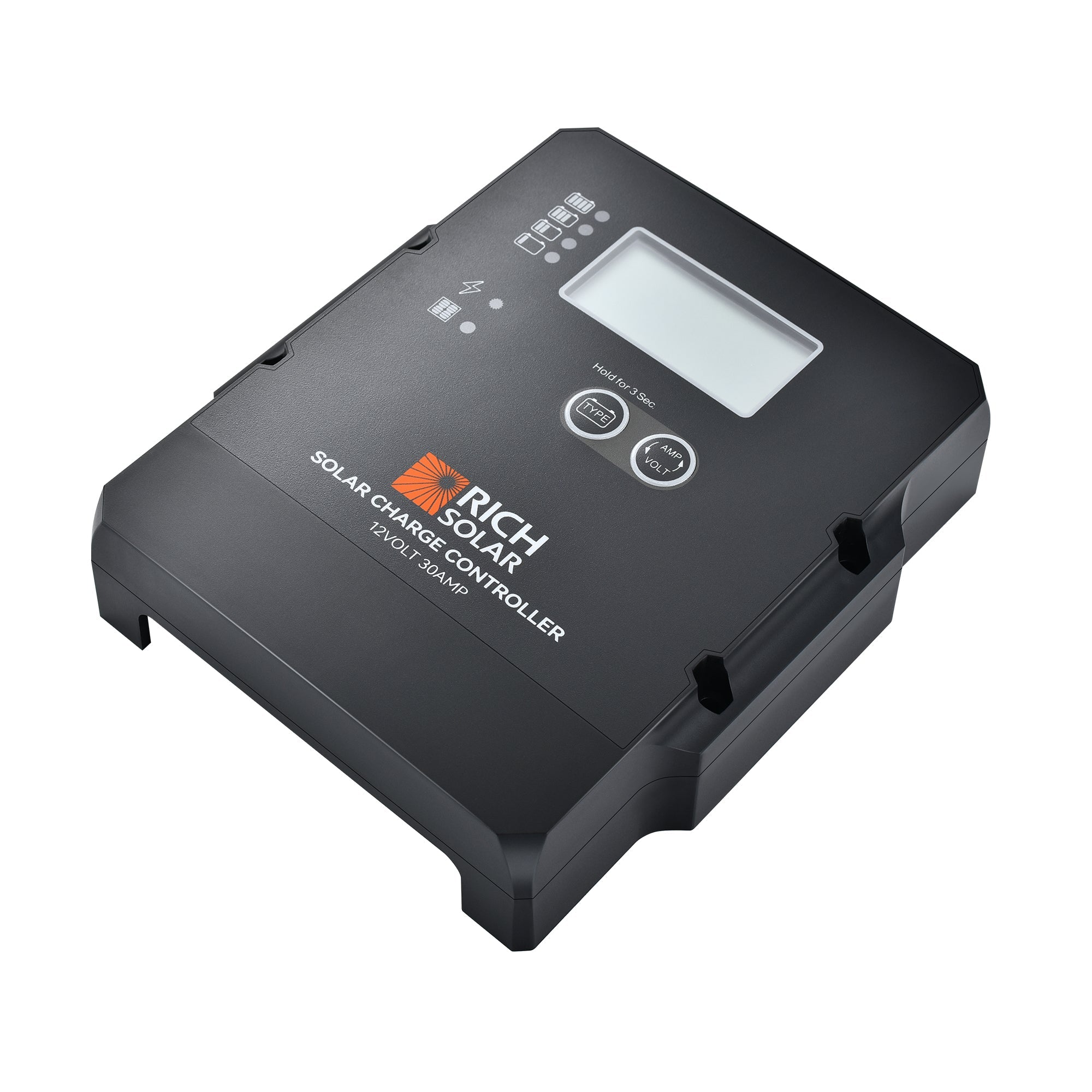

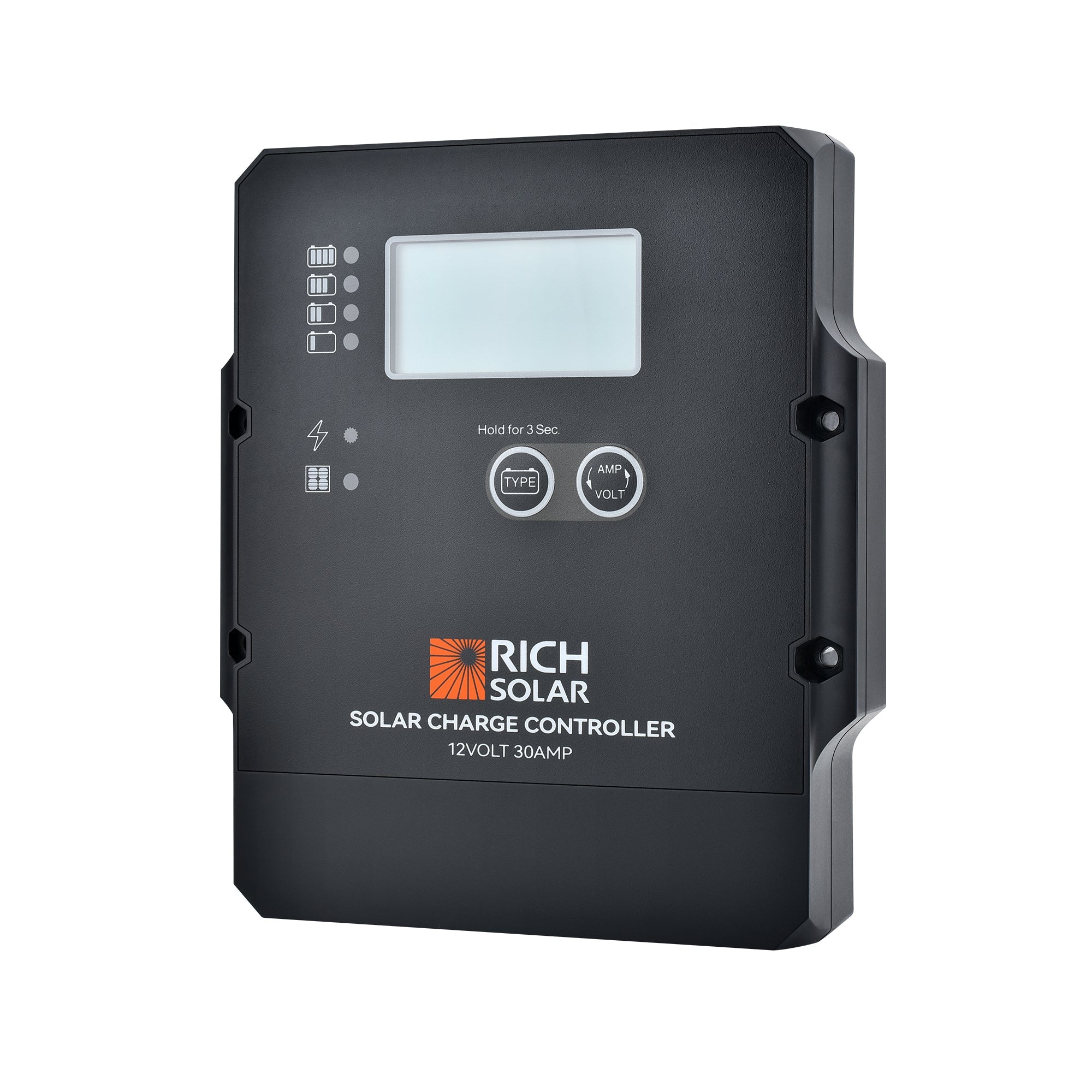

30 Amp PWM Solar Charge Controller | 12V 30A PWM Controller for RVs, Trailers, Campers, Vans, Boats, Off-Grid | Top Rated

Features

• PWM technology, switching control by MOSFET
• Common positive grounding connection
• High efficiency and low power consumption
• Battery type setting and battery condition indication
• Smart charging control
• Charging time management
• LED indication for the battery condition and charging status
• Digital display charging parameters and battery settings
• Automatically activates Lithium battery against BMS protection
• Thermal protection
• Over voltage protection, short-circuit protection, reverse polarity protection
• No sparks
• The thinnest and most compact design
• Corrosion-resistant terminals and connectors
• Conformal coating supplied to the inside board against moisture
• Includes a port for external battery temperature sensor (BTS - optional)
• Compatible with most rechargeable lead acid
• batteries, including Flooded (WET), AGM, GEL, Calcium and Lithium batteries
• Designed to meet CE standards and comply with
• EMC and FCC regulations

Specifications

• Electrical Parameters

• Rated Solar Panel Amps: Max. 30 AMP
• Normal Input Solar Cell Array Voltage: 15~22 VDC
• Maximum Solar Cell Array Voltage (output has no load): Max. 25 VDC
• The Controller Lowest Operating Voltage at Solar or Battery Side: Min. 8 VDC
• Standby Current Consumption at Night: Max. 5 mA
• Maximum Voltage Drop - Solar Panel to Battery: Max. 0.25 VDC

• Physical Parameters

• Controller Material: Plastic, Standard ABS

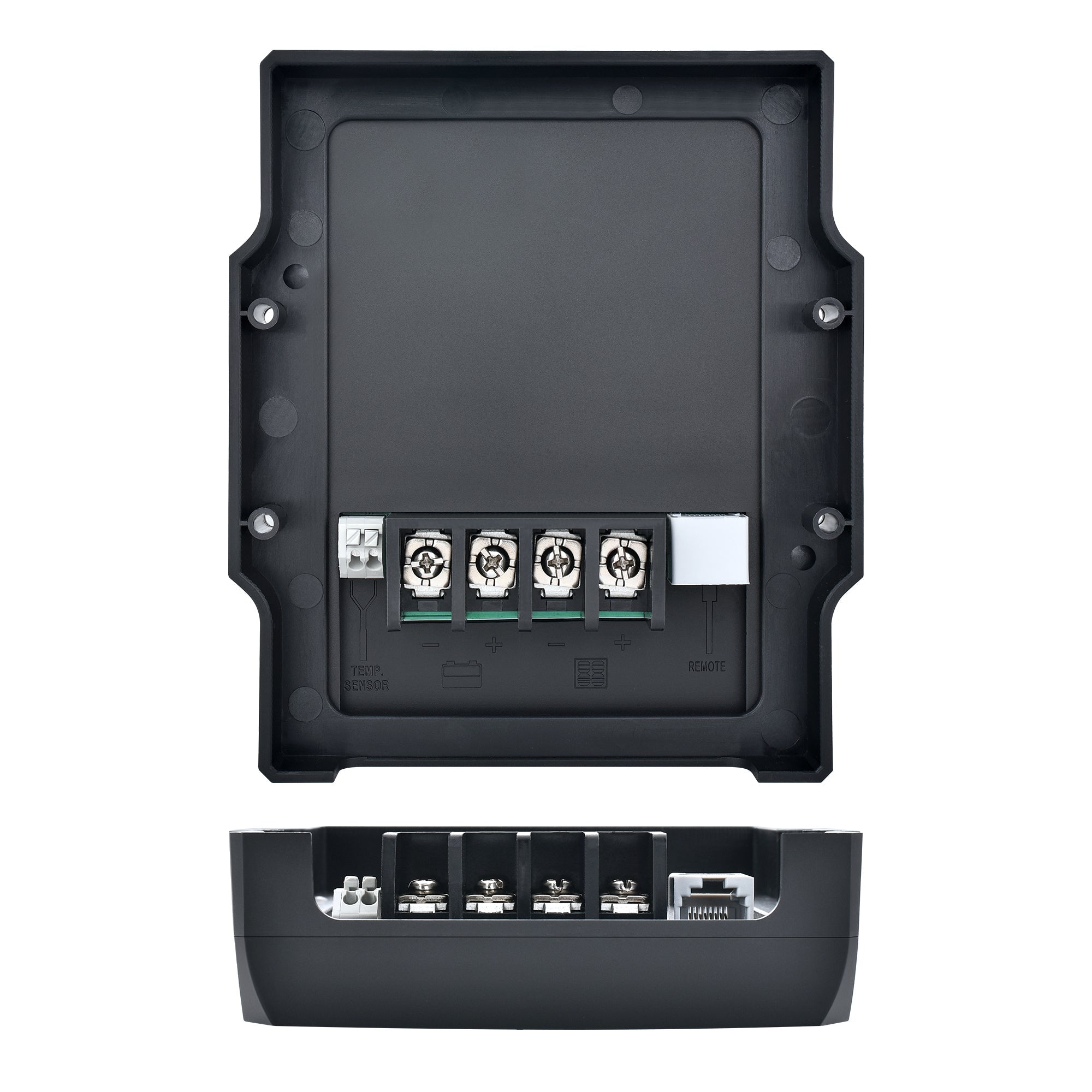

• Power Terminal Maximum Stranded Wire Size: #8 AWG stranded - 0.2in²
• Power Terminal Torque: Up to 17 in-lb (0.2n-m)

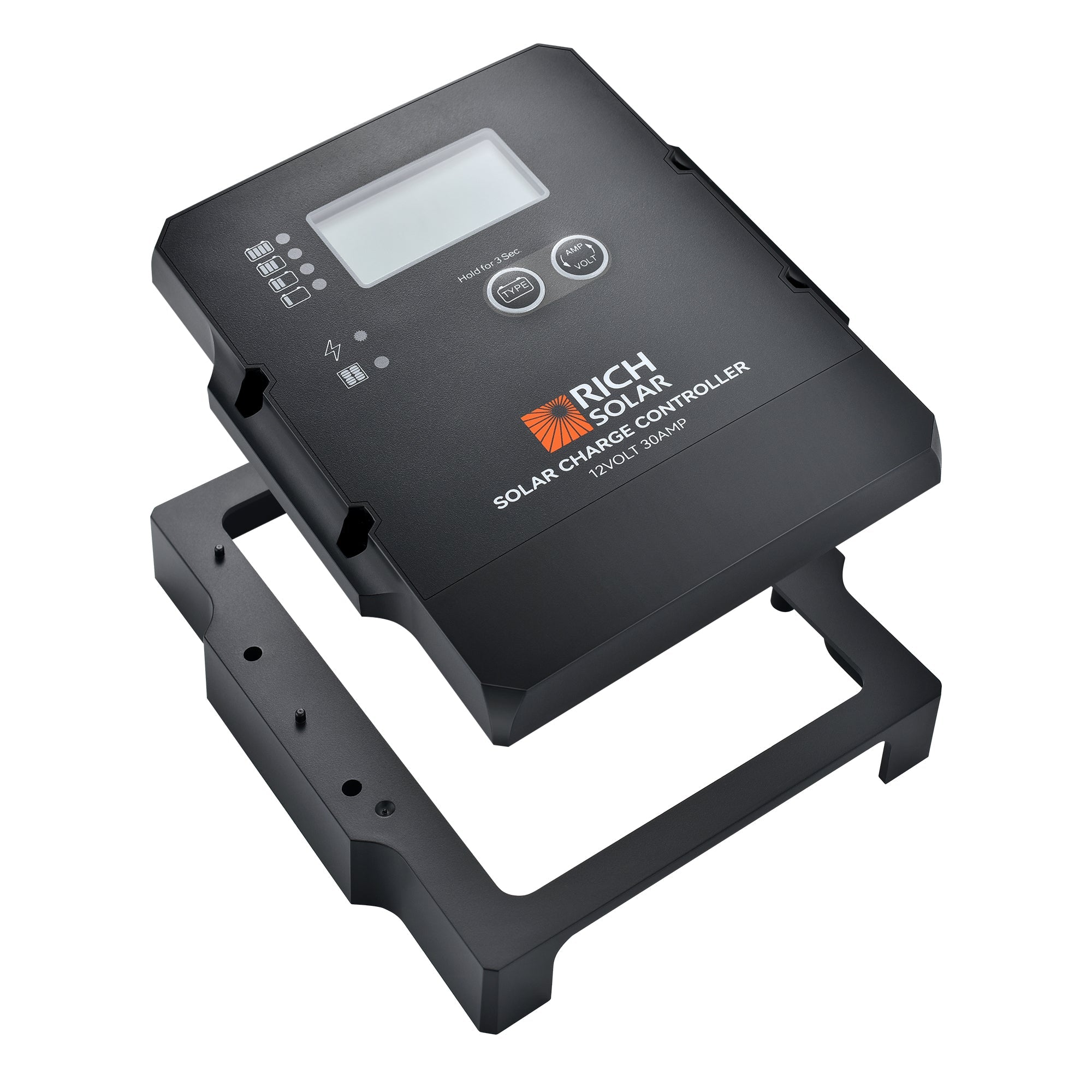

• Mounting: Vertical wall mounting
• IP Grade: IP22
• Net Weight: Approx. 10.6oz / 300g
