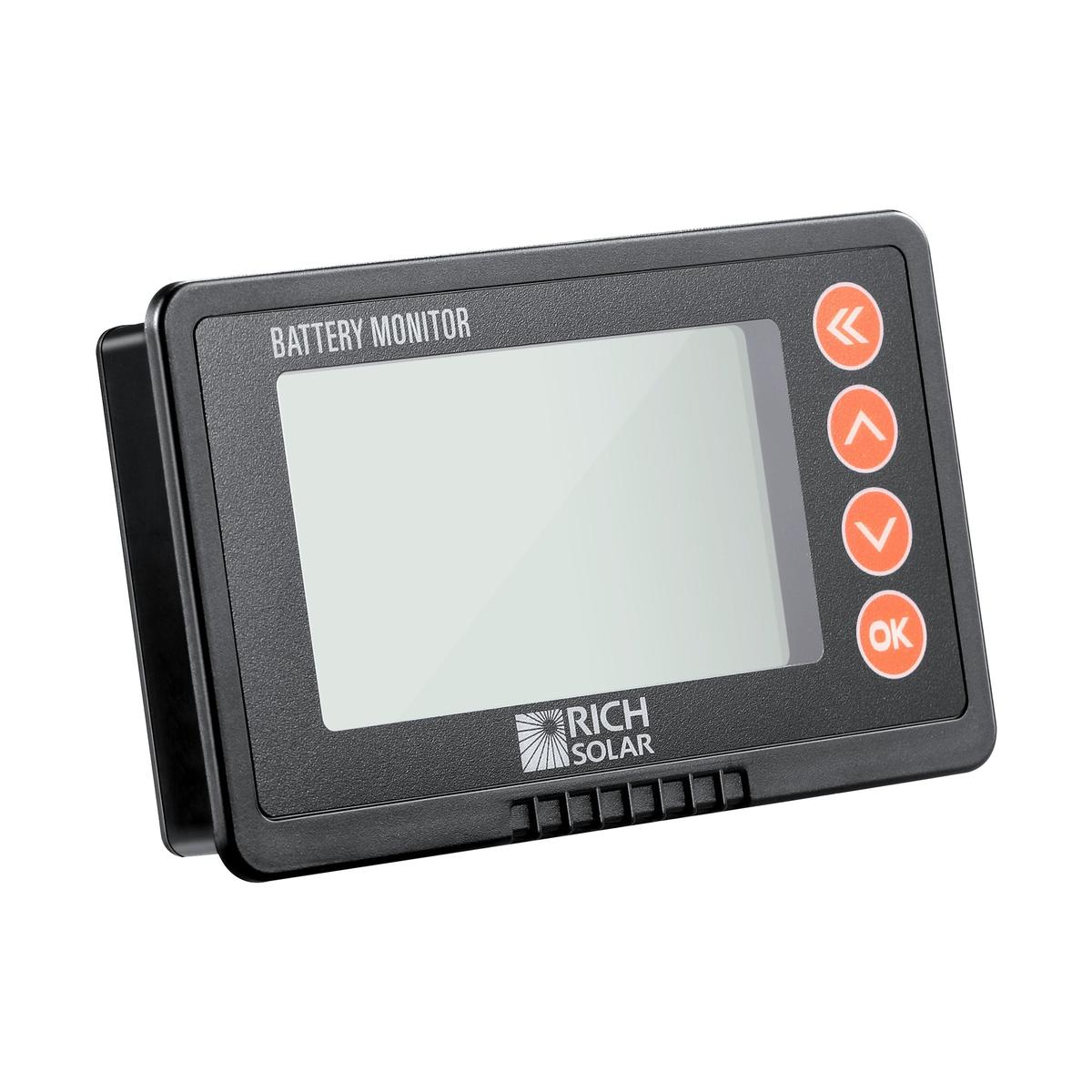

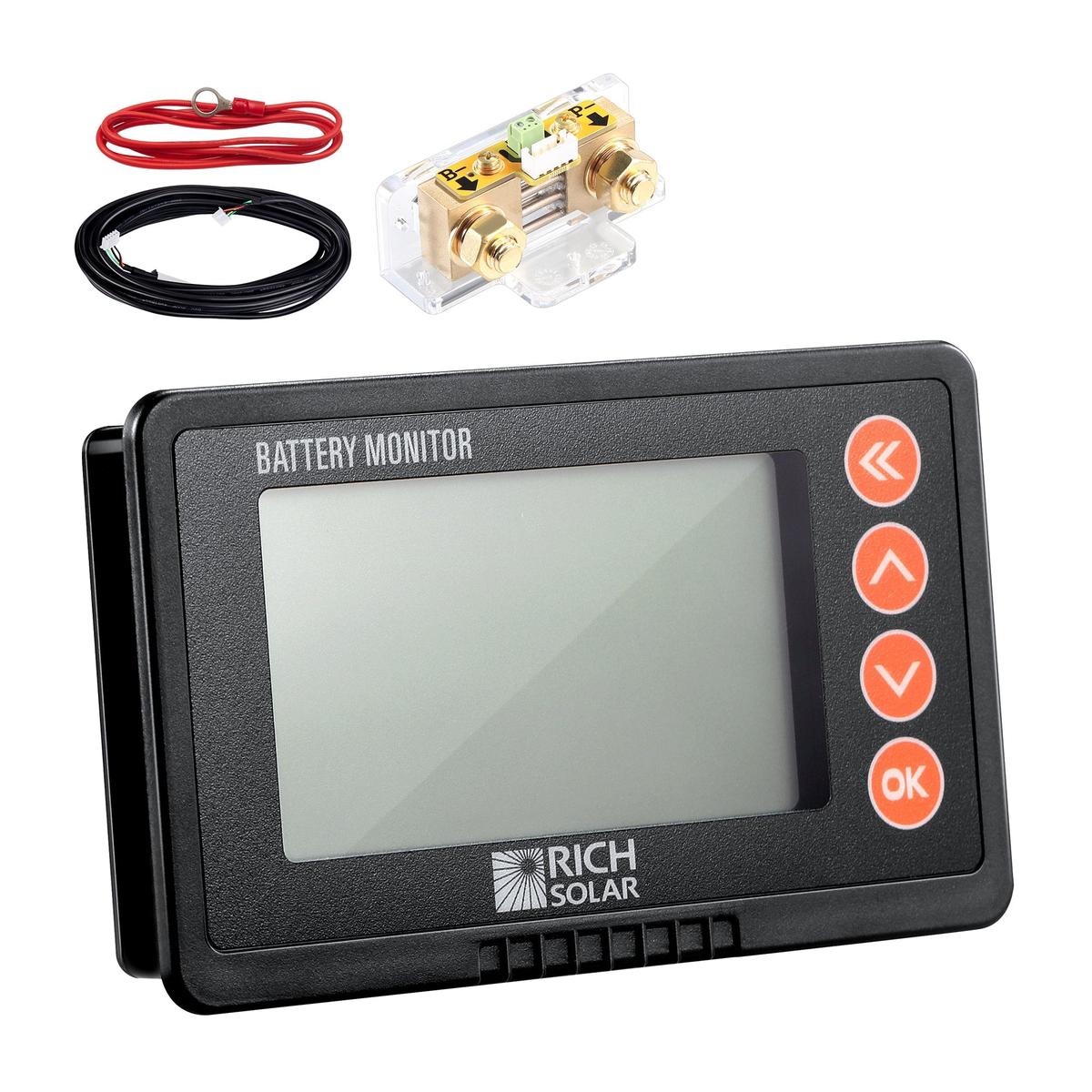

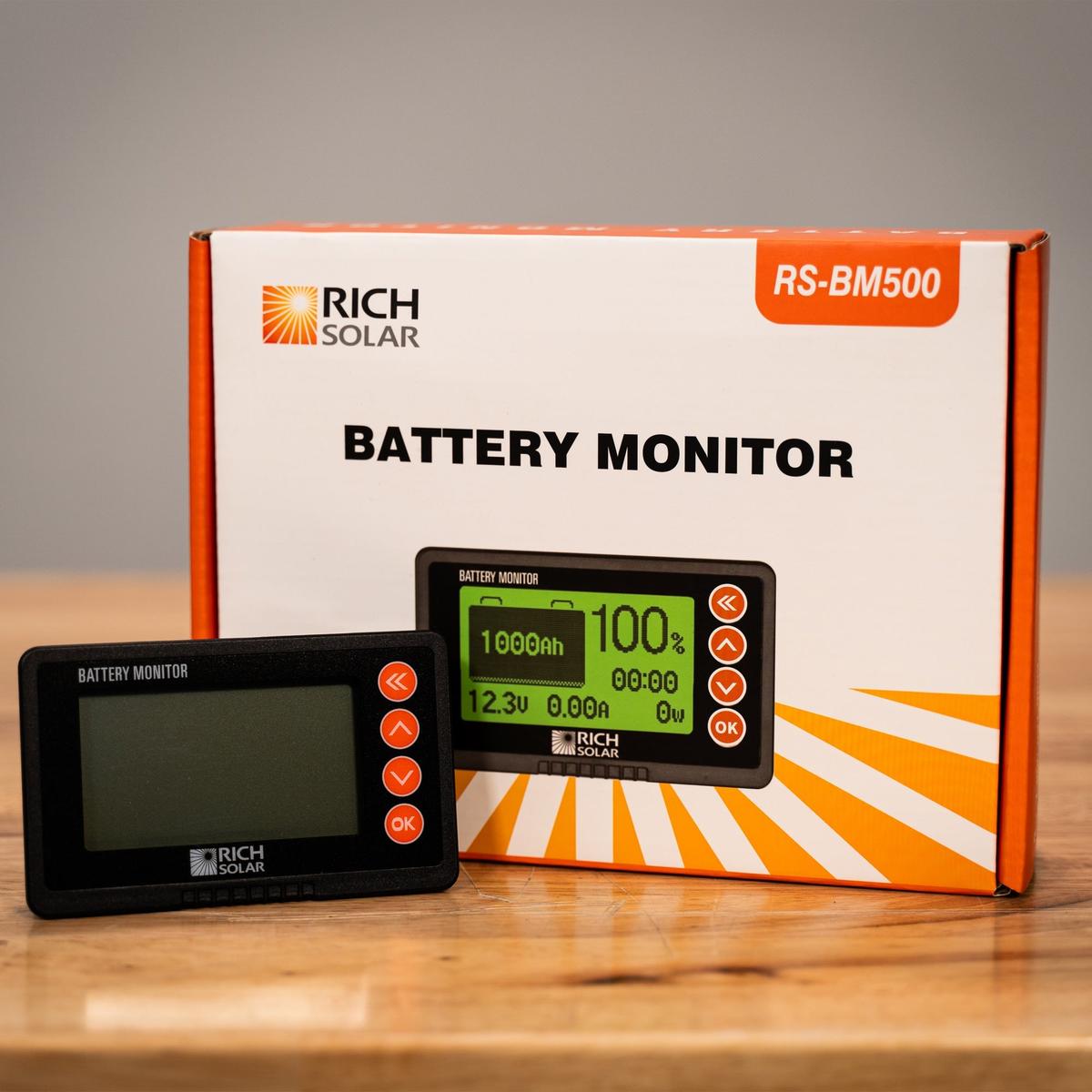

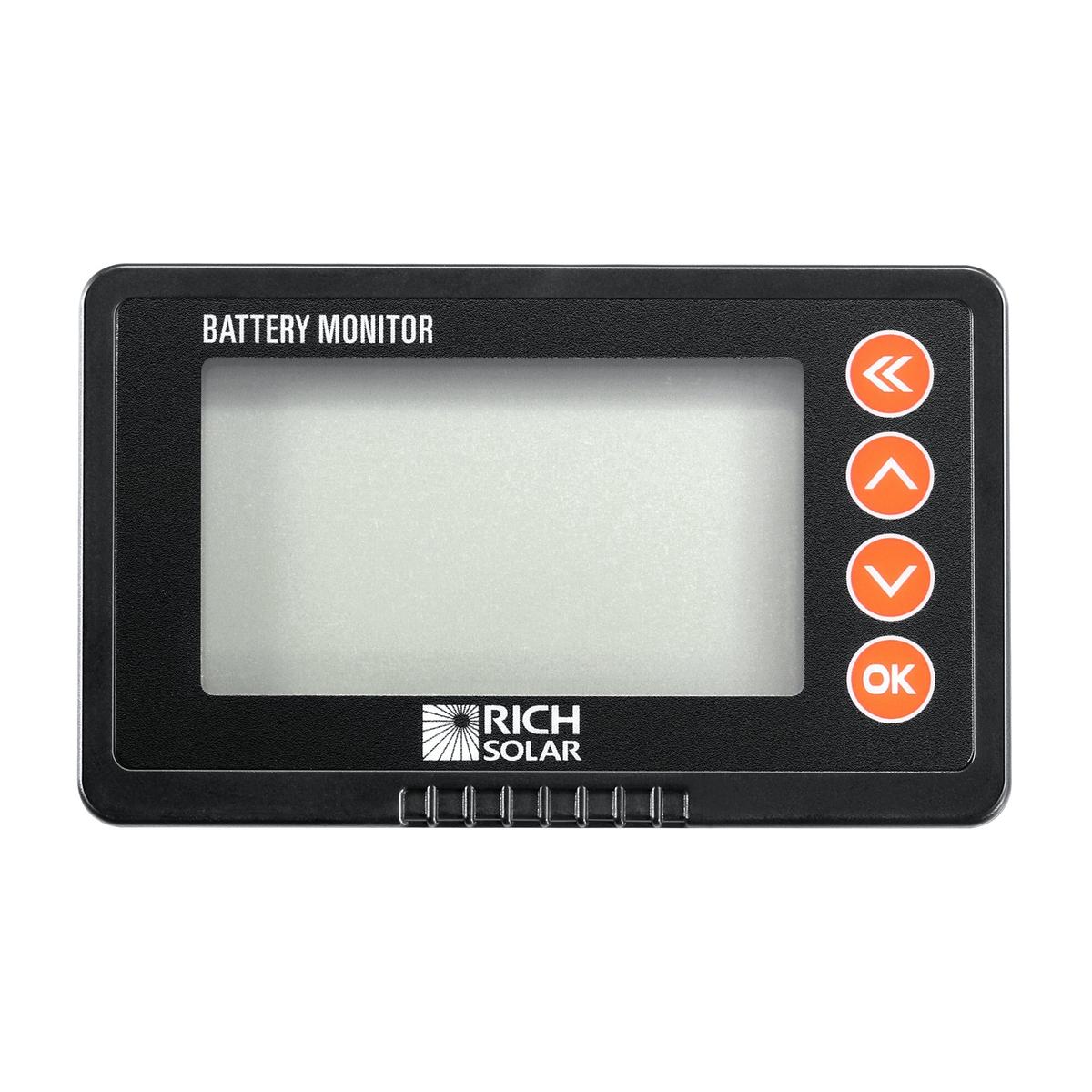

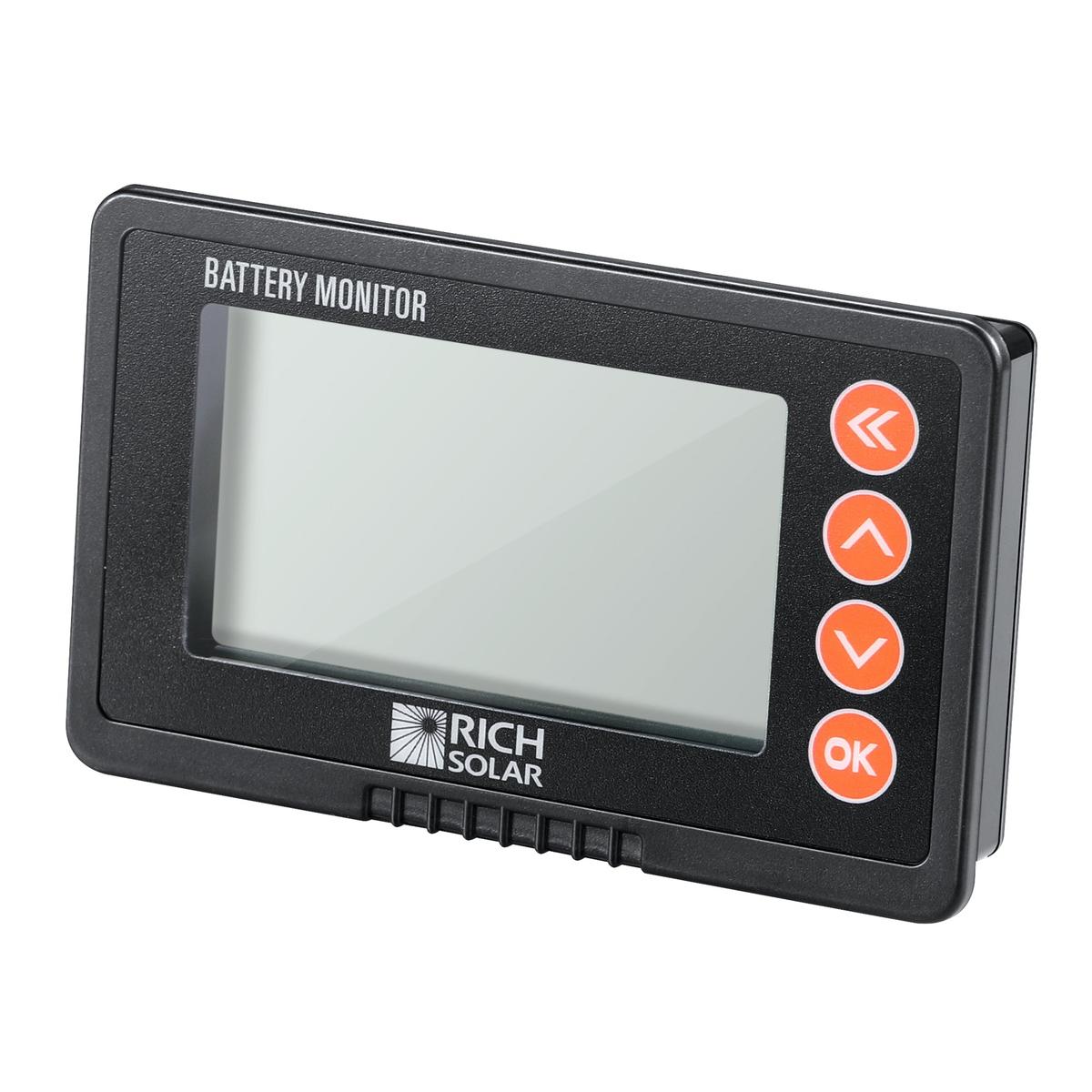

500 Amp Battery Monitor with Shunt | 8~120V 500A Battery Monitor with Shunt | Accurate Battery Status Monitor | Easy to Use - RICH SOLAR

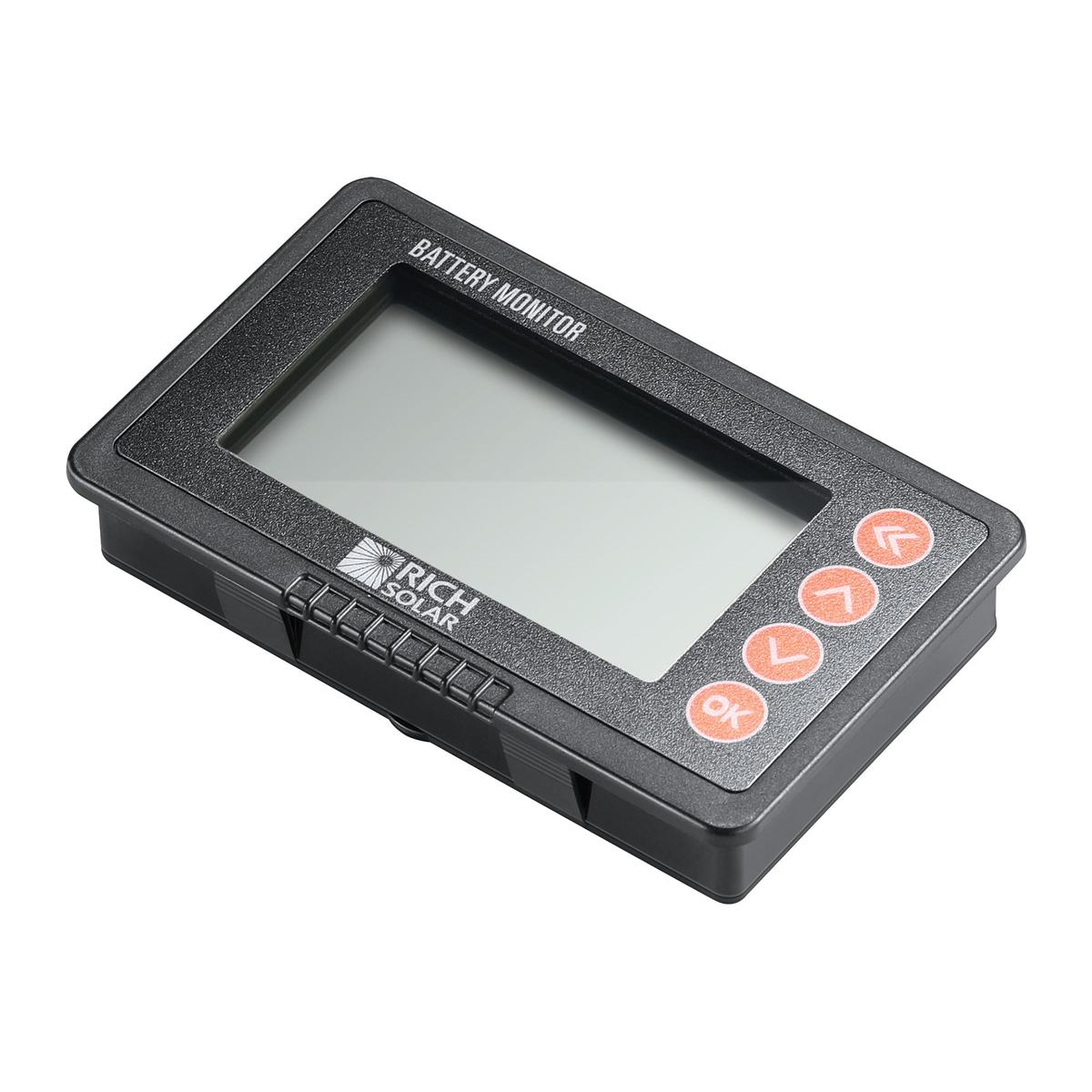

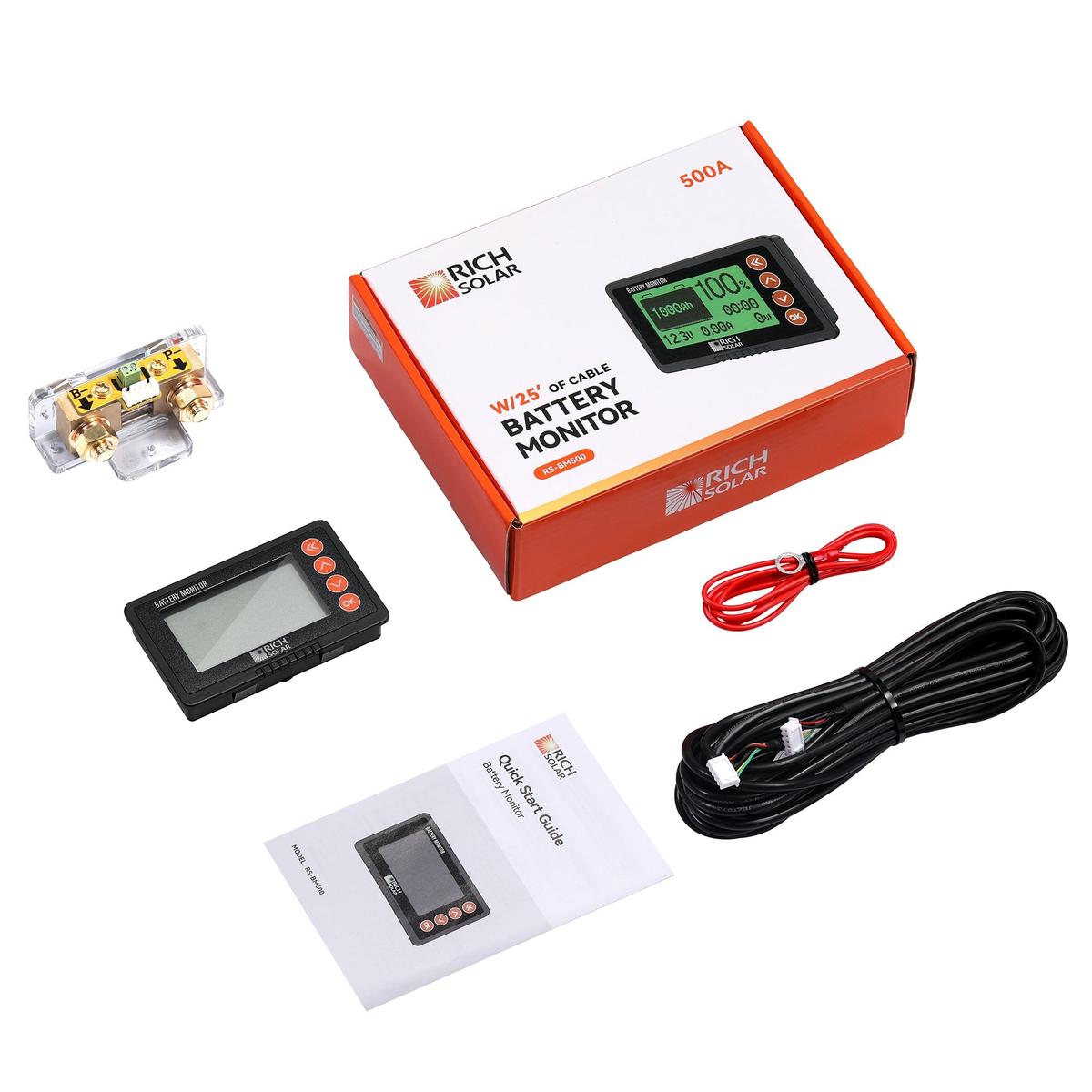

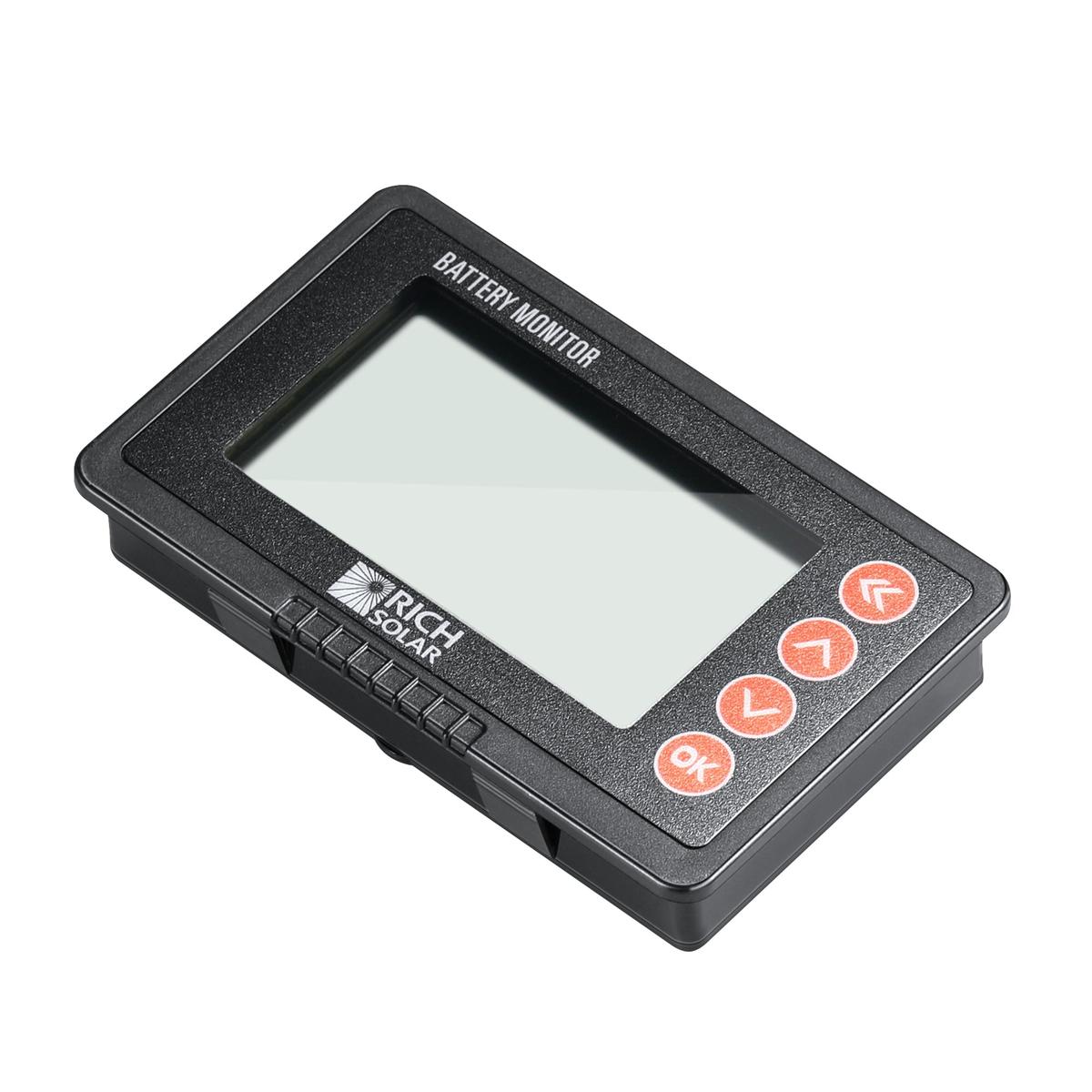

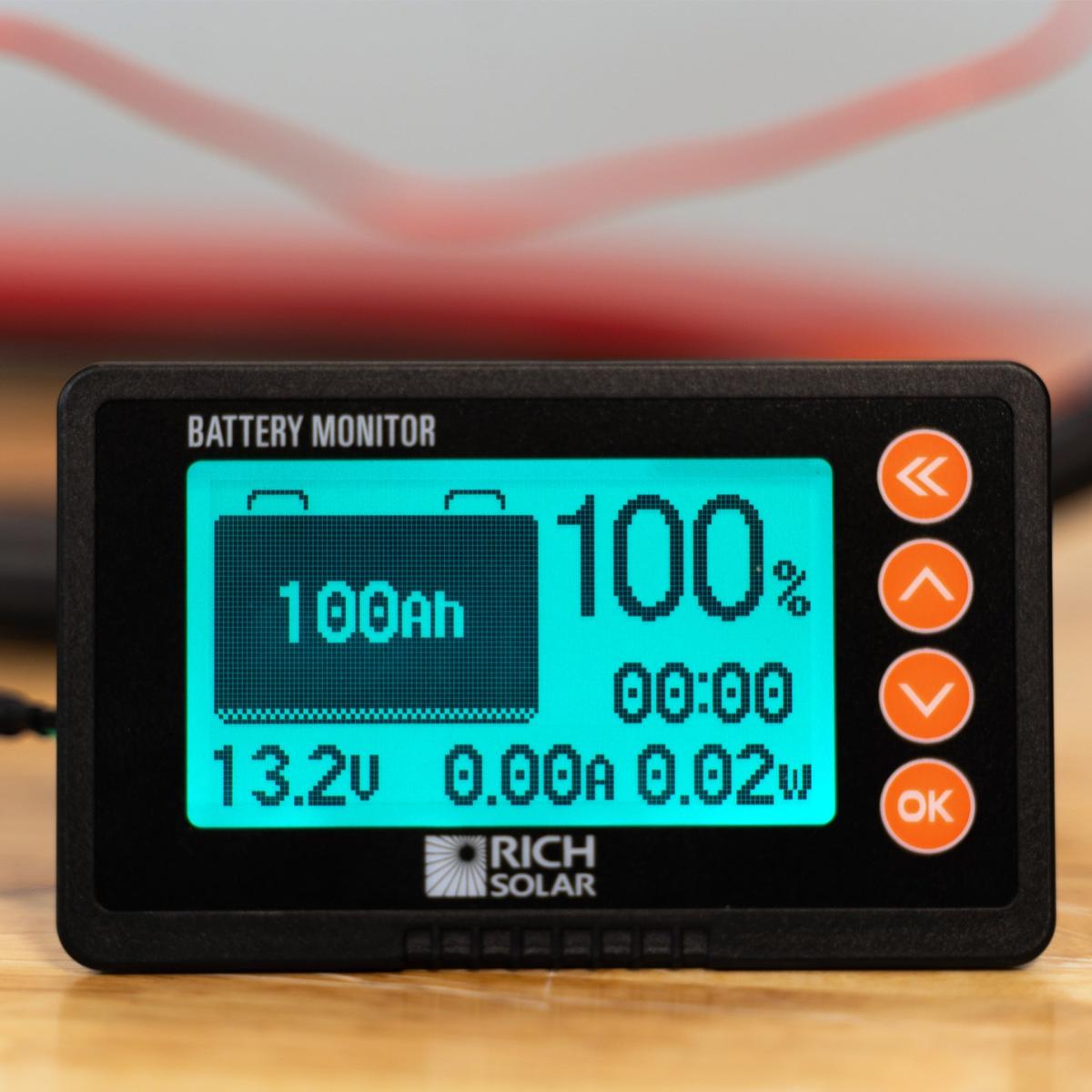

500 Amp Battery Monitor with Shunt | 8~120V 500A Battery Monitor with Shunt | Accurate Battery Status Monitor | Easy to Use

SKU RS-BM500
by RICH SOLAR
Save $30.00
$129.99
$99.99
Options:

Notify me when back in stock

✅ FREE REPLACEMENT PARTS FOR LIFE ⚙️

Find a better price somewhere else?

Well... we will BEAT their price to get you the lowest pricing, we will find and SPEAK with a local installer, AND you get our post-purchase customer support.

Call/Text Us: 1-888-855-7286
Live Chat With an Expert

  • US Based Authorized DuroMax Dealer

    Full manufacturer warranty included

  • 4-5 Day Free Shipping + No Sales Tax

    More savings on every purchase and ships in 4-5 business day

  • Easy 30-Day Returns & Price Beat Guarantee

    Risk-free shopping + best price guaranteed

  • Post-Purchase Customer Support

    Dedicated help whenever you need it


ESTIMATED DELIVERY BETWEEN

Order within to get it by the earliest date.


 


Installation and Wiring-Overview

The RS-BM500 shunt should be mounted as close to the battery as possible, and the remote display is intended to be mounted on a wall.

Recommended Tools

  • Wrench
  • Drill
  • Jigsaw
  • 2 ring terminals of appropriate size for battery cable
  • Crimp tool for ring terminals

Wiring Diagram

The following wiring diagram will be referenced in the next section.

Installation

  1. Before doing anything, disconnect all wires from the negative side of the battery.
  2. Cut the negative cable for the battery and crimp on new ring terminals. Alternatively, use a new wire of appropriate gauge to carry the full current demand of your system.
  3. Install the shunt as shown in the wiring diagram above.
    Note: The negative terminal of the battery must connect directly to the “B-" side of the shunt, and there should be no other connections to the negative terminal of the battery for accurate measurements.
  4. Use the B+ wire included in the package to connect the B+ terminal of the shunt to the positive side of the battery.
    Note: Do not stack smaller terminals under large ones.
  5. Connect the shunt to the remote display using the included shielded cable.

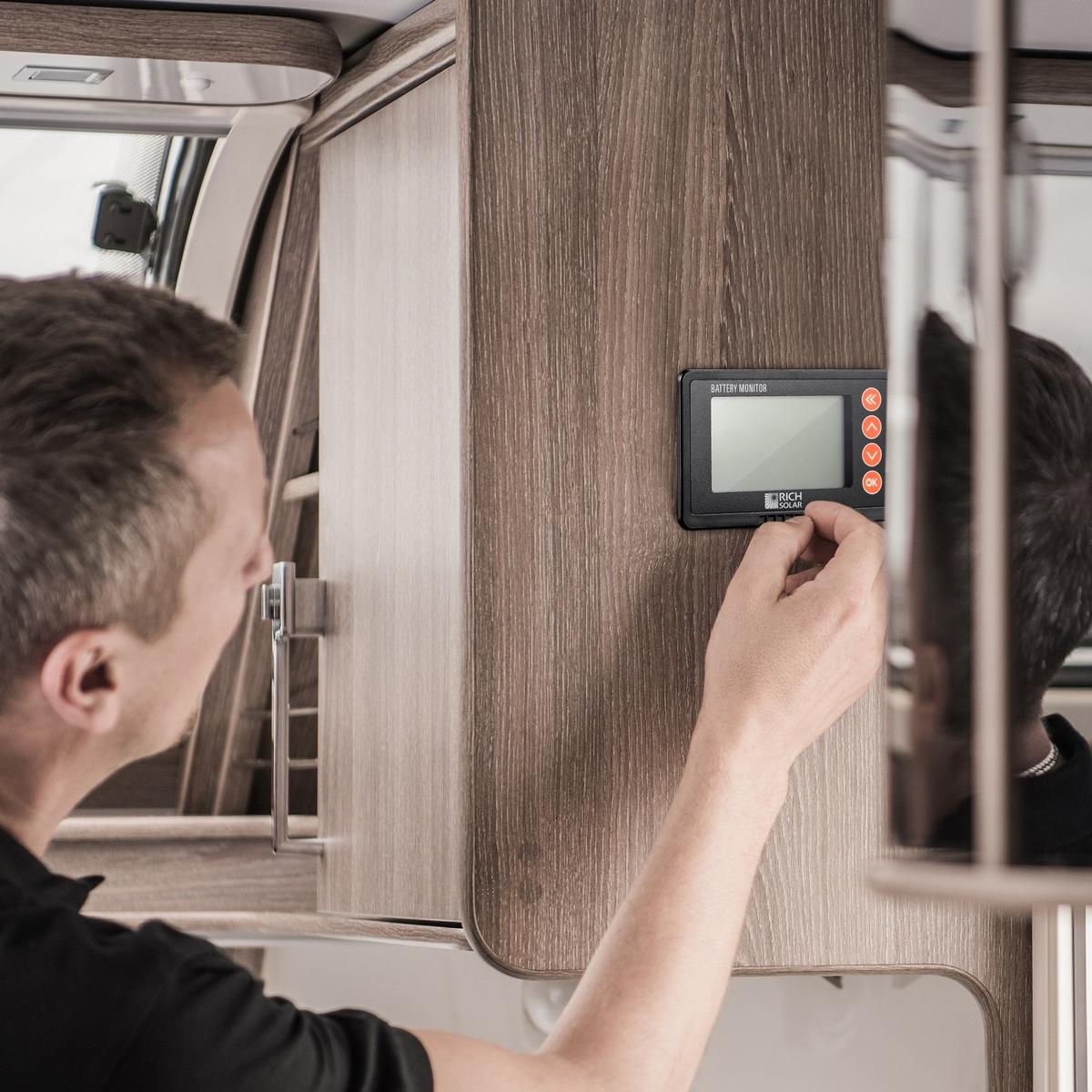

Mounting the Remote Display

  1. Plan the location of your remote display and keep in mind there is a cable that needs to route all the way to the shunt.
  2. Drill a hole in the center of the planned location and use the jigsaw to cut a hole according to the following picture.
  3. Connect the shielded cable to the shunt and route it such that you can bring it through the hole.
  4. Connect the shielded cable to the remote and snap the remote into place.

Basic Setup

  1. Before doing anything, disconnect all wires from the negative side of the battery.
  2. Cut the negative cable for the battery and crimp on new ring terminals. Alternatively, use a new wire of appropriate gauge to carry the full current demand of your system.
  3. Install the shunt as shown in the wiring diagram above. Note: The negative terminal of the battery must connect directly to the “B-" side of the shunt, and there should be no other connections to the negative terminal of the battery for accurate measurements.
  4. Use the B+ wire included in the package to connect the B+ terminal of the shunt to the positive side of the battery. Note: Do not stack smaller terminals under large ones.
  5. Connect the shunt to the remote display using the included shielded cable.

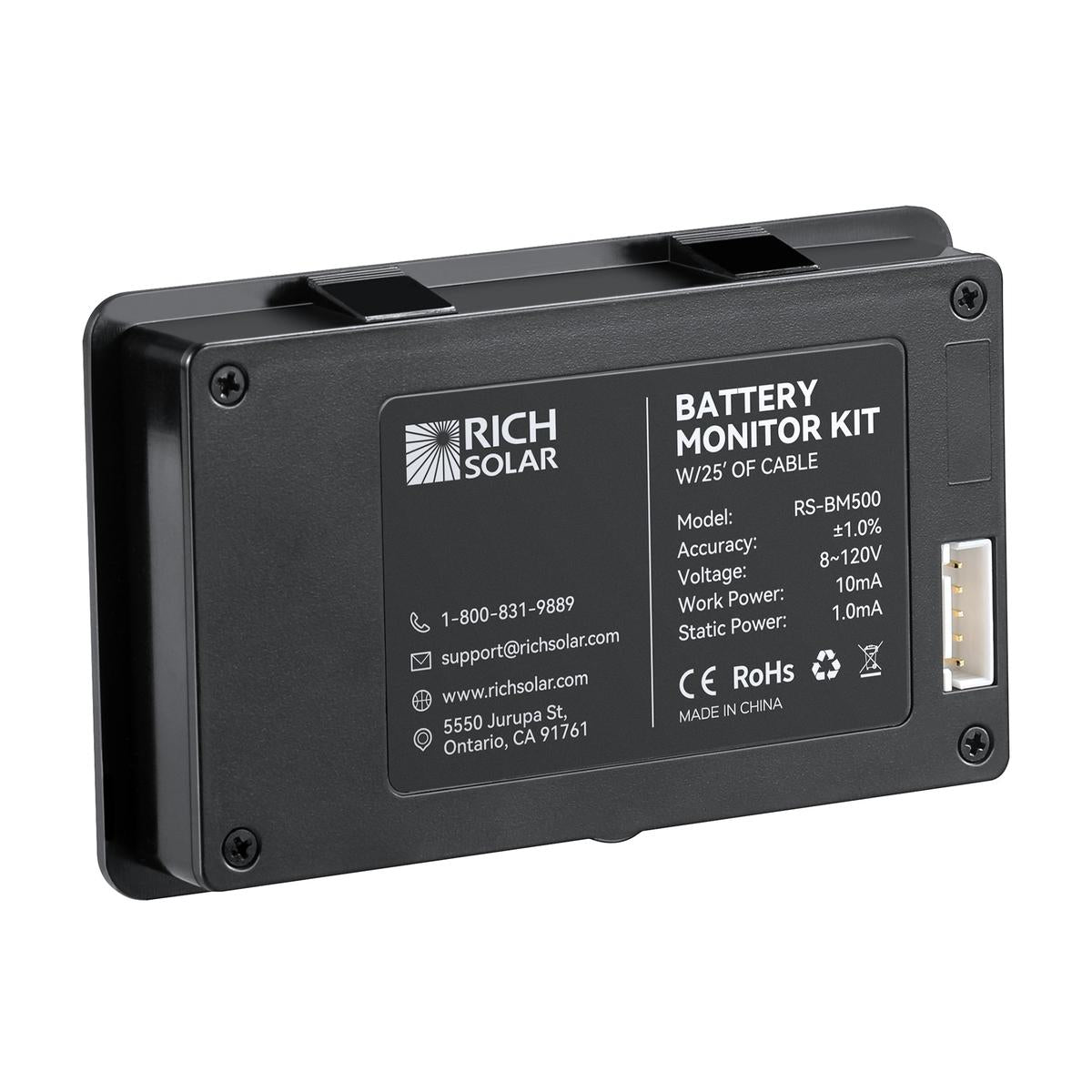

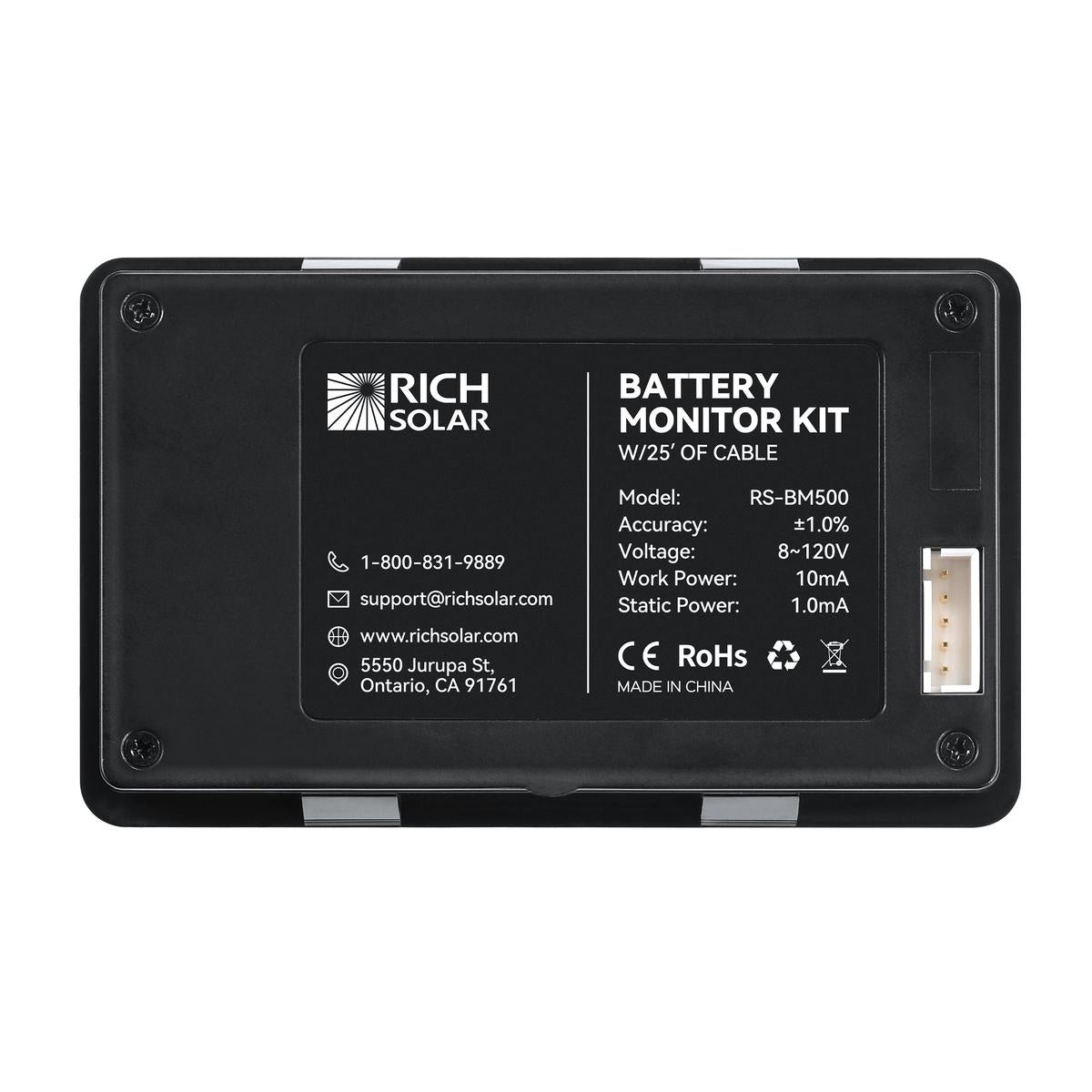

Specifications


Battery Info

Model:

RS-BM500

Battery Voltage Range:

8-120V

Working Dissipation:

10mA

Standby Dissipation:



1mA

Capacity Accuracy:

±1.0%

Voltage Accuracy:

±1.0%

Current Accuracy:

±1.0%

Backlight On Current:

80mA

Capacity Setting Value:

0-500A

Current Range:

0.1-9999Ah
