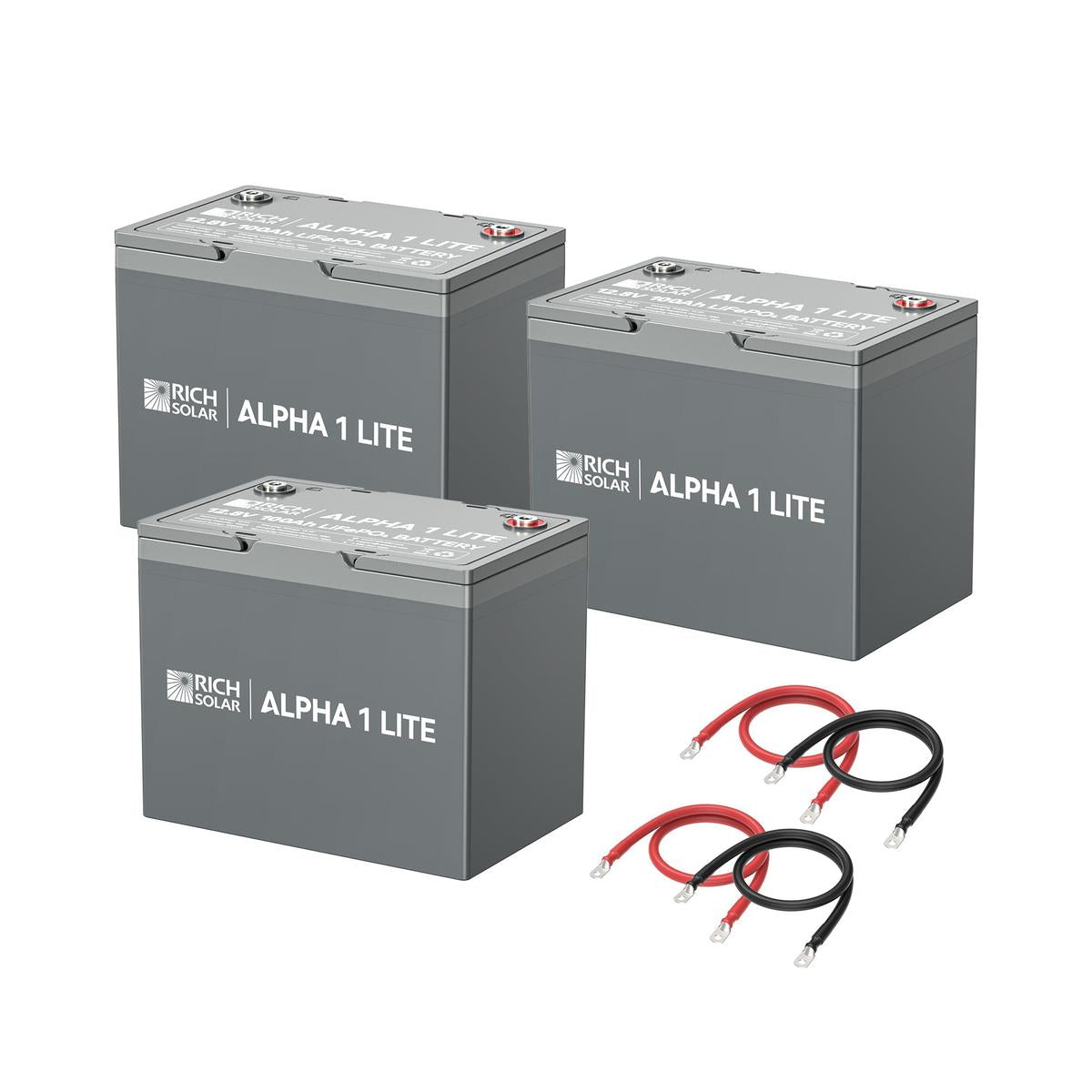

The 300AH 12V 3.8kWh Lithium Battery Bank comes with:
- 3x 12V 100AH LiFePO4 Battery
- 4x 1ft 2 AWG Battery Cables
4,000 Cycles. LiFePO4 Cells. 10+ Years Lifespan. Built with quality materials that are made to last, the ALPHA 1 LITE is a 12V 100Ah battery that is sure to leave its mark. Each ALPHA LITE Battery is packed to the brim with premium lithium-iron-phosphate (LiFePO4) technology to maintain energy efficiency while still in a compact and lightweight Group 24 battery size.
Experience a full day of high-quality power output with the ALPHA 1 LITE’s capacity of 100 amp hours, setting you up for a full day on the open road in your RV or van. With its low-maintenance, deep-cycle capabilities, and RICH SOLAR premium materials, you can store your energy with ease.Â
Features
-
Premium lithium-iron-phosphate cells
-
> 10-Year lifespan with proper maintenance
-
Unsurpassed high-temperature performance
-
Group Size 24
-
Low maintenance
-
High amp capacity
-
Stable output voltage
-
Little self-discharge
-
Overcharge/discharge protection
-
Overcurrent & short circuit protection
-
High & low-temperature disconnects
-
Charge Voltage: 14.4V
-
Max Charge Current: 100A
-
Max Discharge Current: 100A
-
Battery Dimensions(L*W*H): 10.2*6.6*8.3 in
-
Weight: 24.3 lb
Â
BMS Safety Protection
Every LiFePO4 cell is individually fused with safety and efficiency in mind. If any cells fail, the isolated fuse will prevent damage to the other cells and allow the battery to function normally.
Other BMS Features include:
- Convenient removable carry handle
- Lightweight
- Short circuit protection
- Over-charge/discharge protection
- Excessive heat protection
BATTERY
Nominal Voltage:
12.8V
Nominal Capacity:
100Ah
Minimum Capacity:
99.5Ah
Cycle Life:
>4000 cycles
Operating Specifications
Operating Voltage:
12.8V
Capacity:
100Ah
Energy:
1280 Watt Hours
Charge Voltage:
14.4V
Continuous Charge Current:
100A
Continuous Discharge Current:
100A
Self Discharge:
< 5%/month
Temperature
Charge Temperature:
32℉ to 131℉ (0℃ to 55℃)
Discharge Temperature:
-4℉ to 140℉ (-20℃ to 60℃)
Storage Temperature:
14°F-113°F / -10℃~45℃ 90％RH Max (More than 3 months)
Physical Specifications
Battery Dimensions(L*W*H):
10.2x6.6x8.3 in
Weight:
24.3 lb
Overcharge Protection
Overcharge detection voltage:
3.75V±0.03V
Overcharge detection delay time:
1000ms±500ms
Overcharge recovery voltage:
3.55V (Min 3.40V, Max 3.60V)
Over-discharge Protection
Over-discharge detection voltage:
2.20V±0.08V
Over-discharge detection delay time:
1000ms±500ms
Over-discharge recovery voltage:
2.70V±0.10V
Warranty: 5 years
