30 Amp Flush Mount PWM Solar Charge Controller | 30A 12V/24V PWM Controller for RVs, Trailers, Campers, Vans, Boats, Off-Grid | Top Rated

The 30 Amp Flush Mount PWM Solar Charge Controller is a top-rated controller designed to regulate and manage the charging process of your solar panels. It's specifically designed for solar systems with a maximum current capacity of 30 amps, making it suitable for small to medium-sized solar installations.

Features

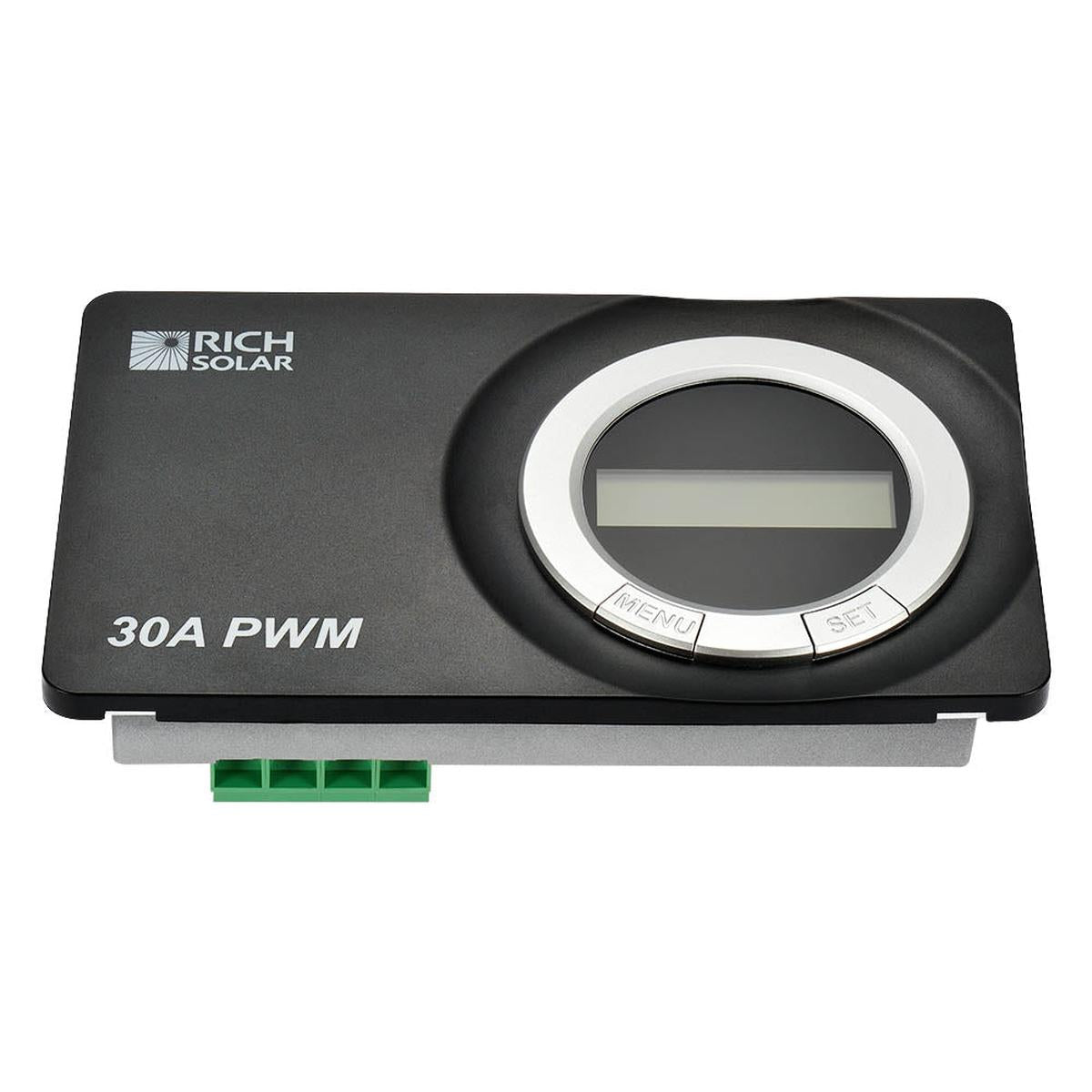

• Flush mounted and embedded installation design
• High quality and low failure rate components (ST/IR) to ensure the product lifetime
• 3-Stage intelligent PWM charging: Bulk, Boost/Equalize and Float
• Battery type: Sealed, Gel, Flooded
• Real-time energy statistics feature

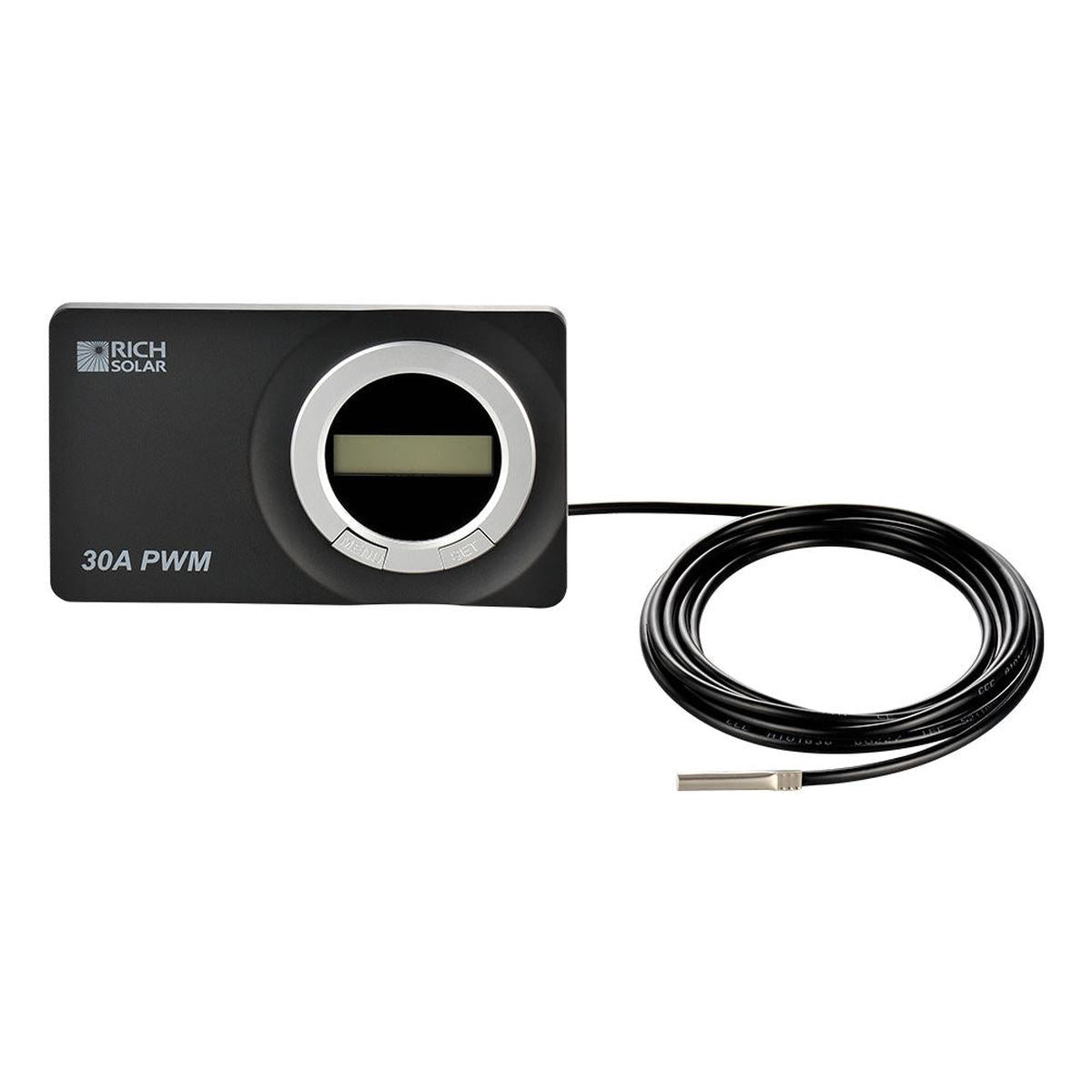

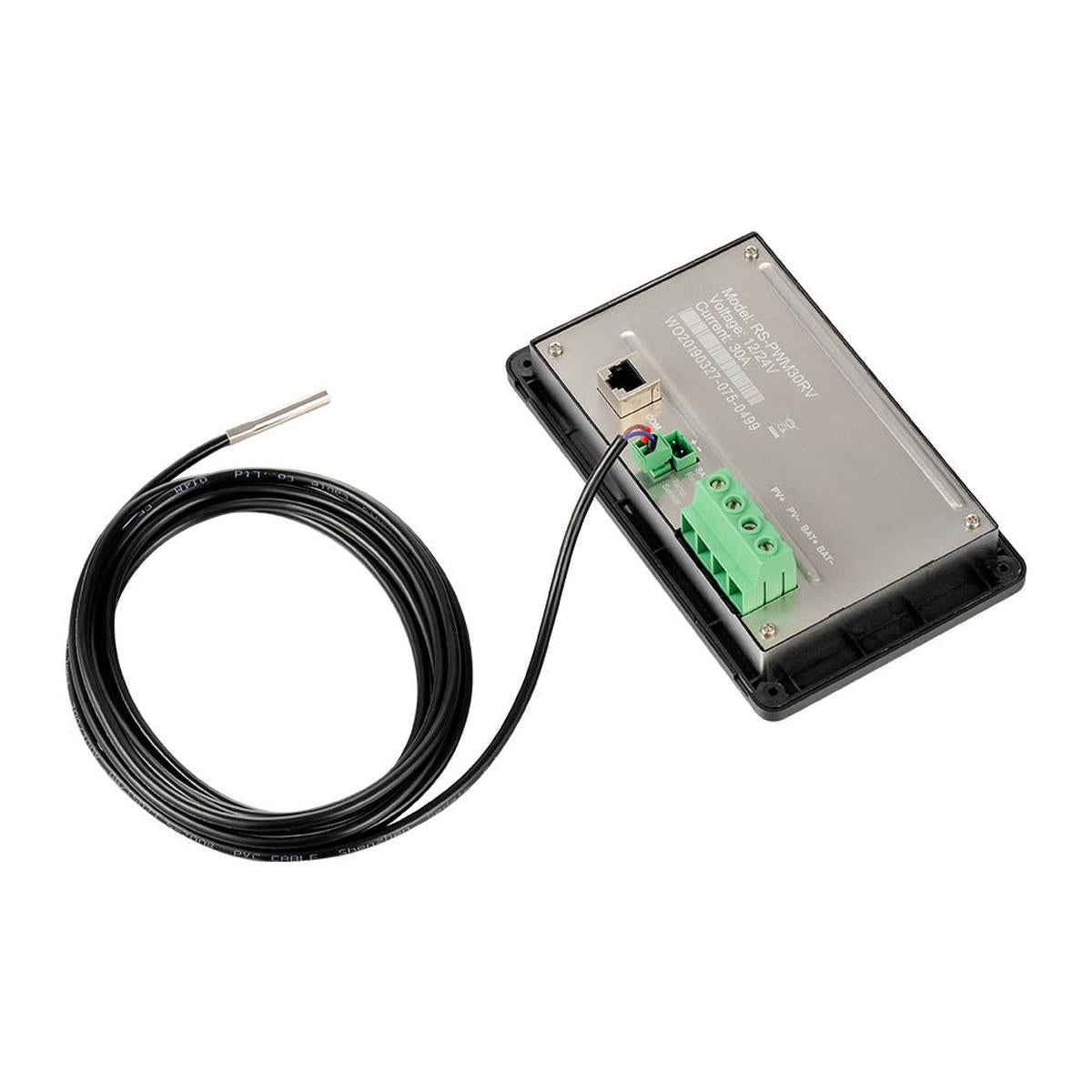

• Battery temperature compensation feature

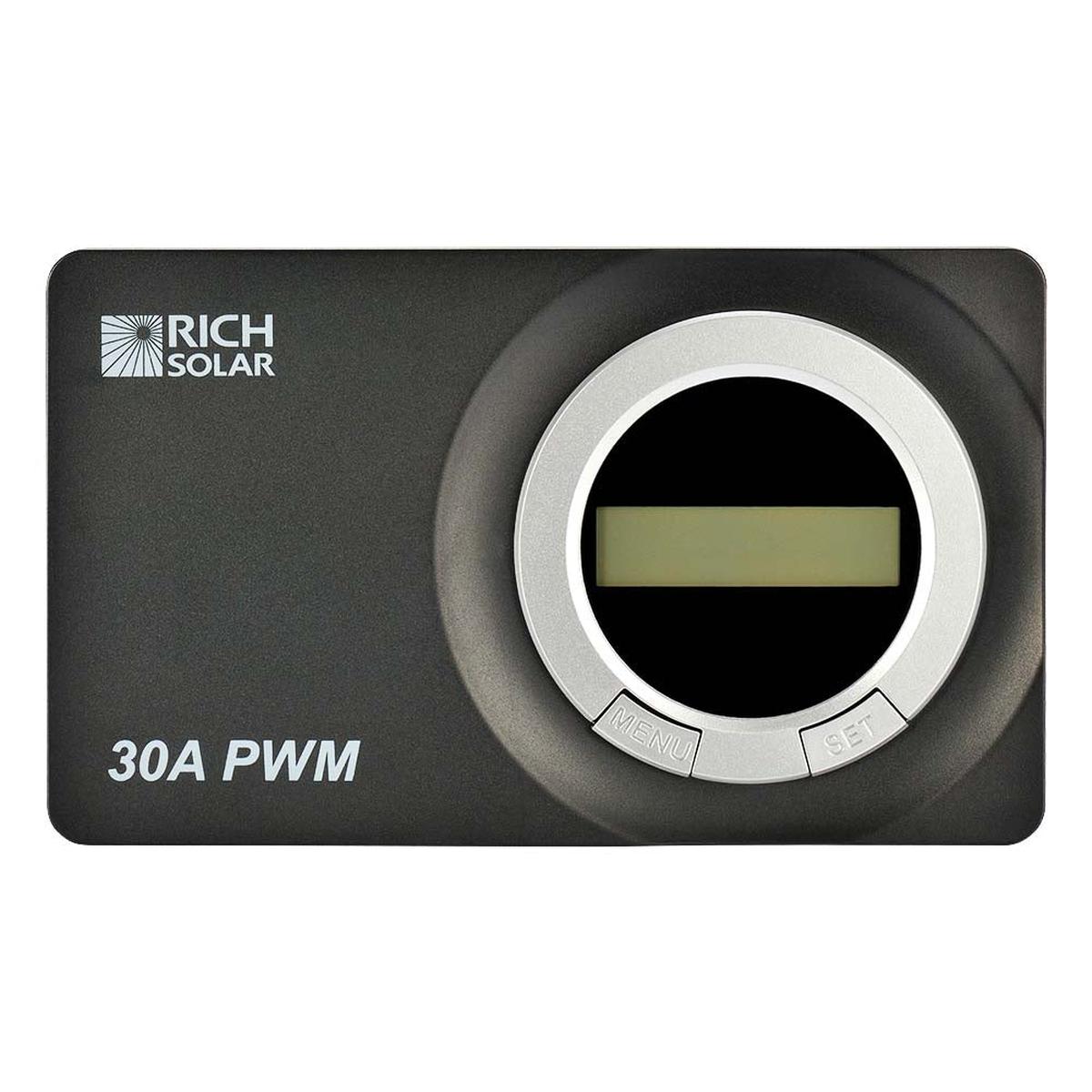

• Digital LCD monitor for informative display of operational parameters and fault messages
• Voltage drop and temperature compensation sampling interface design
• RS485 communication port with Modbus protocol, and short circuit protection for 5V/200mA power supply
• Multiple communication peripherals
• Rated charging current at working temperature without de-rating
• Extensive electronic protections
• Monitor and set the parameters via PC software or APP

Specifications

• Electrical Specifications

• Nominal Voltage: 12/24VDC or Auto
• Battery Input Voltage Range: 8V～32V
• Rated Charge Current: 30A
• Max. PV Short Circuit Current: 30A
• Max. PV Open Circuit Voltage: 50V
• Battery Type: Sealed(default)/Gel/Flooded
• Self-consumption: ≤4.2mA/12V;≤2.6mA/24V
• Temperature Compensation Coefficient: -3mV/°C/2V(Default)
• Charge Circuit Voltage Drop: 0.21V

• Environmental Parameters

• Storage Temperature Range: -30°C～+80°C
• Working Environment Temperature: -20°C～+55°C(100% input and output)
• Relative Humidity: ≤95%, N.C.
• Enclosure: IP30
• Grounding: Common negative
• Altitude: 5000m
• Pollution Degree: PD2

• Mechanical Parameters

• Dimension (L×W×H): 178.5×105.5×48.3mm
• Mounting Dimension: 166.5×93.5mm
• Mounting Hole Size: Φ5mm
• Terminal: 16mm2/6AWG
• Recommended Cable: 6mm2/10AWG
• Net Weight: 0.31kg
