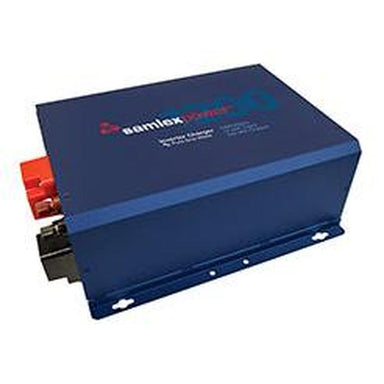

Samlex Evolution F Series EVO-1212F Pure Sine Inverter/Charger, or its hardwired variant, the Samlex EVO-1212F-HW. These are 1200-watt pure sine wave inverter/chargers with a 12VDC input and a 60 ADC charger for 120 VAC systems. They are designed for use in RVs, boats, off-grid cabins, and other applications where reliable AC power is needed.

Product variants

Samlex EVO-1212F Pure Sine Inverter/Charger

: This version includes a duplex GFCI outlet and an AC power cord inlet.
Samlex EVO-1212F-HW Pure Sine Inverter/Charger
: This version is designed for hardwired connections and does not have the GFCI outlets.

Key features

Pure sine wave output: Provides clean and stable AC power suitable for sensitive electronics and inductive loads.

3600-watt surge capability: Handles the high starting surge of demanding appliances like compressors and pumps.
Adaptive battery charging: Features 6 programmable charging profiles for various battery types, including Lead Acid, AGM, Gel, and Lithium.
Built-in transfer relay: The 30-amp automatic transfer relay provides seamless power switching between shore/generator power and the inverter.
Power boost mode: Allows loads to exceed the continuous power output for short durations without triggering an overload fault.
Programmable power-saving mode: Reduces idle power consumption when no loads are present.
Reliable protection: Offers nine points of internal fault monitoring for dependable operation, with features such as over-temperature and low-voltage shutdown.

Technical specifications

According to DonRowe.com and Samlex America:

Features	Specification (EVO-1212F)	Specification (EVO-1212F-HW)
Input Voltage	12 VDC	12 VDC
Output Voltage	120 VAC, 60 Hz	120 VAC, 60 Hz
Continuous Power	1200 Watts	1200 Watts
Surge Power (1 msec)	3600 Watts	3600 Watts
Output Waveform	Pure Sine Wave	Pure Sine Wave
Charger Output	60 ADC, programmable	60 ADC, programmable
Dimensions	12.8" x 16.3" x 5.9"	12.76" x 16.34" x 5.83"
Weight	38.8 lbs	38.3 lbs
AC Outlets	Duplex GFCI	Hardwired
Remote Control	EVO-RC-PLUS (optional)	EVO-RC-PLUS (optional)
