Pick the wrong charge controller and you either overpay for a small setup or leave a real chunk of your solar harvest on the roof. The choice comes down to one question: does your panel voltage closely match your battery voltage, or not? This guide explains how MPPT and PWM controllers differ, when each one makes sense, and the controllers we carry at Krato Power.
A solar charge controller sits between your panels and your battery bank. It regulates the power coming off the panels so the batteries charge fully without being overcharged, then tapers off as they fill. It also blocks current from flowing back into the panels at night. Every battery-based solar system needs one.
A PWM (pulse width modulation) controller acts like a fast on-off switch between the panel and the battery. It pulls the panel's voltage down to the battery's voltage and charges at whatever current the panel produces at that voltage.
That works fine when the two voltages are close, like a 12V panel on a 12V battery. When the panel voltage runs well above the battery, PWM simply throws the extra voltage away.
An MPPT (maximum power point tracking) controller constantly finds the voltage where your panels produce the most power, then converts the extra voltage into extra charging current. Same panels, more amps into the battery.
That conversion is why MPPT controllers commonly harvest 10 to 30 percent more energy, with the biggest gains in cold weather and when panel voltage sits well above battery voltage. It is also why MPPT lets you wire panels in series at higher voltage, which means thinner wire and less loss over long runs.
Choose PWM if your system is small (roughly a few hundred watts or less), your panel voltage matches your battery voltage, and cost matters more than squeezing out every watt. Good fits are RV and trailer maintenance charging, boats, and remote 12V loads.
Choose MPPT for nearly everything else: systems over a few hundred watts, lithium battery banks, 24V and 48V systems, panels wired in series, cold climates, and any off-grid home. At larger sizes the extra harvest pays back the price difference quickly.
Prices are current at Krato Power. Browse the full range in our Solar Charge Controllers collection.
PWM, for small 12V systems:

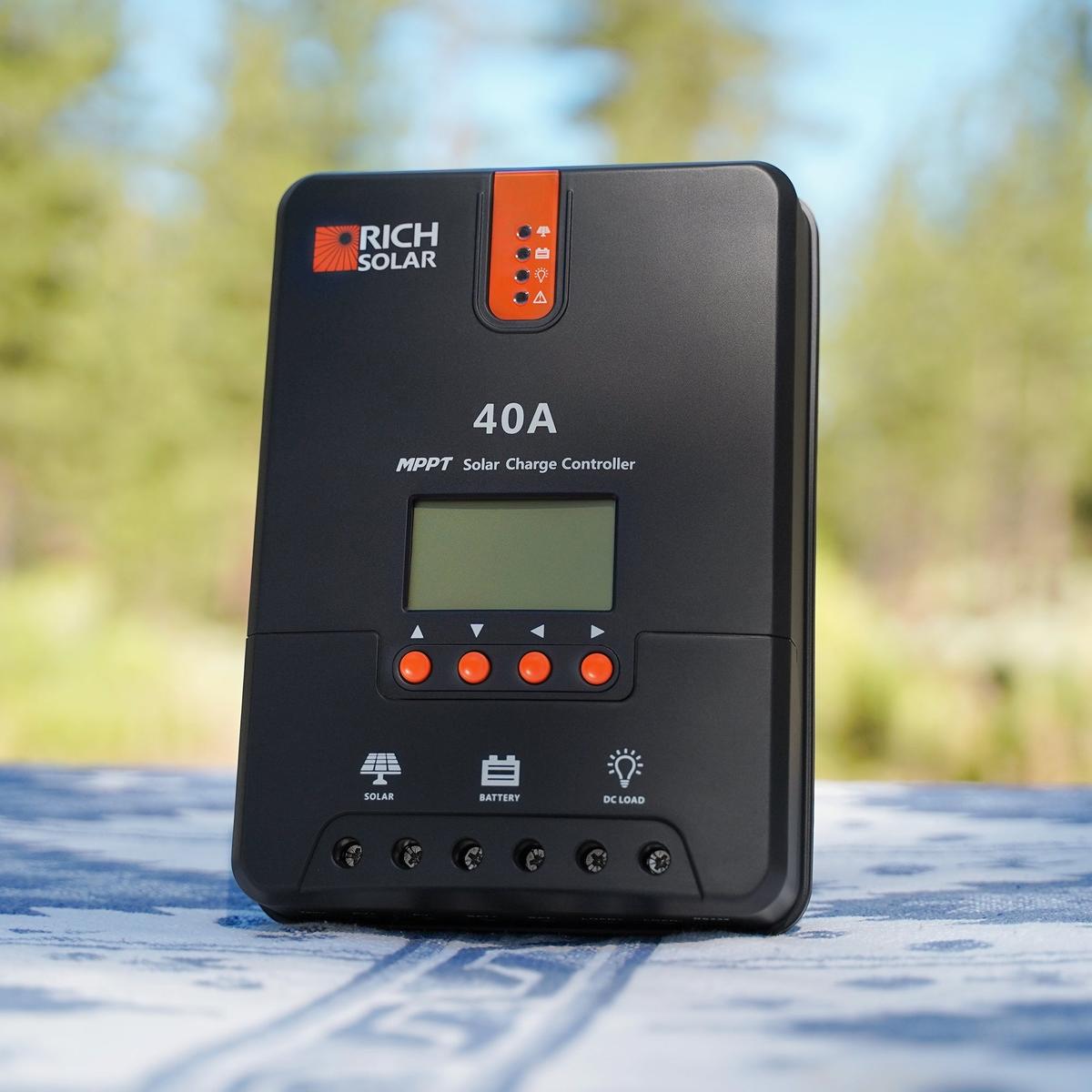

MPPT, for RVs, cabins, and lithium systems:
MPPT, for off-grid homes and 48V systems:
Pair a controller with storage from our 48V Server Rack Batteries, or start with a matched Solar Panel Kit.
For most systems, yes. MPPT converts extra panel voltage into charging current, so it harvests more energy, supports higher-voltage panels, and suits lithium batteries. PWM is still a sensible, low-cost choice for small 12V setups where panel and battery voltage match.
Some PWM controllers include a lithium setting, but MPPT is the better match for LiFePO4. It controls charging voltage more precisely and wastes less of your panel output.
It is possible but not recommended. Two controllers with different charging logic can fight over the bank. If you need more capacity, use two matching MPPT controllers that support parallel operation.
Higher upfront cost and more complex electronics. On a very small 12V system, that extra cost may not pay back. On anything larger, it usually does.
Tell the Krato Power team your panel wattage, panel voltage, and battery voltage, and we will match you to the right controller. Call 888-855-7286 or browse Solar Charge Controllers.
This is general information, not electrical or professional advice. Have a licensed electrician verify wiring, fusing, and installation per local code.
