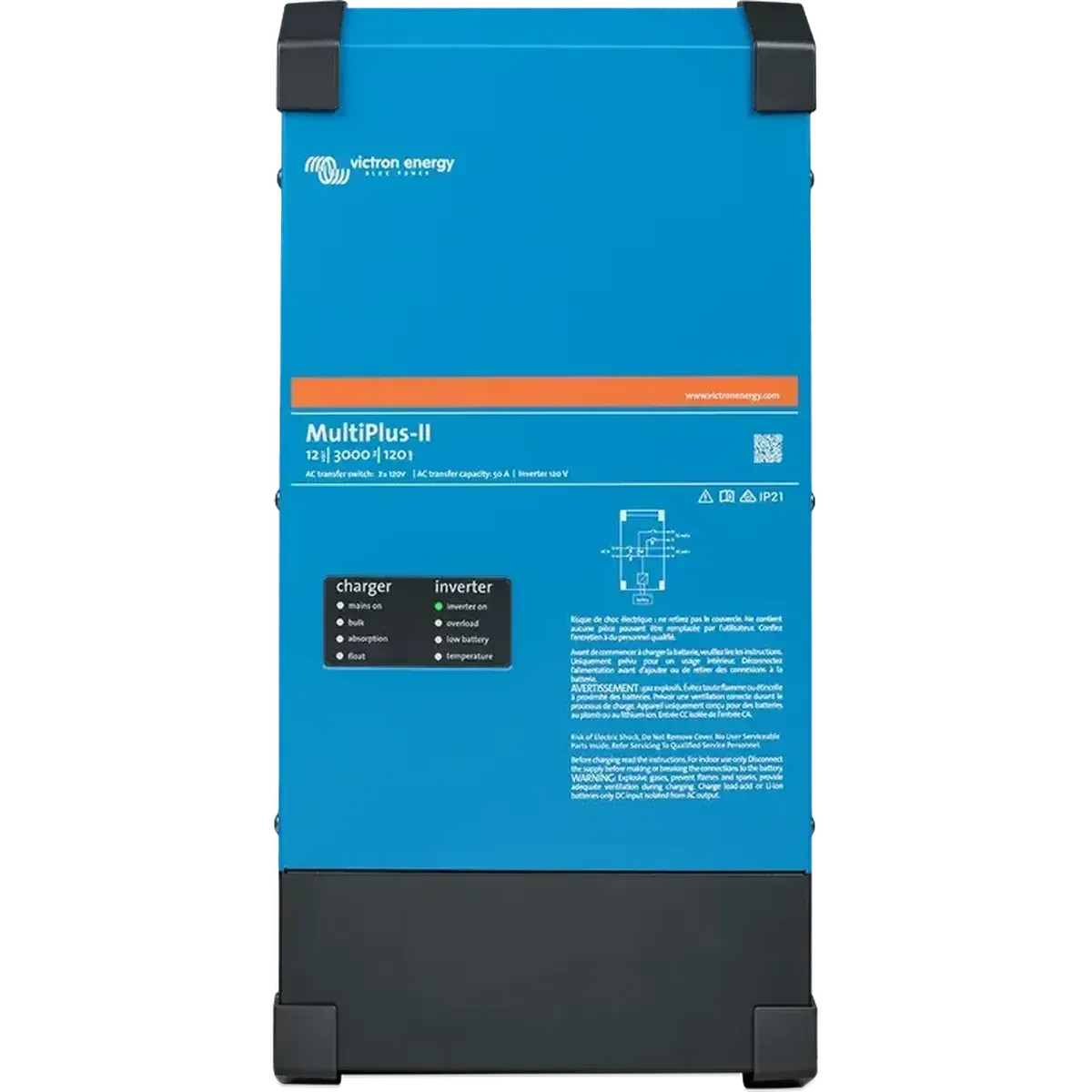

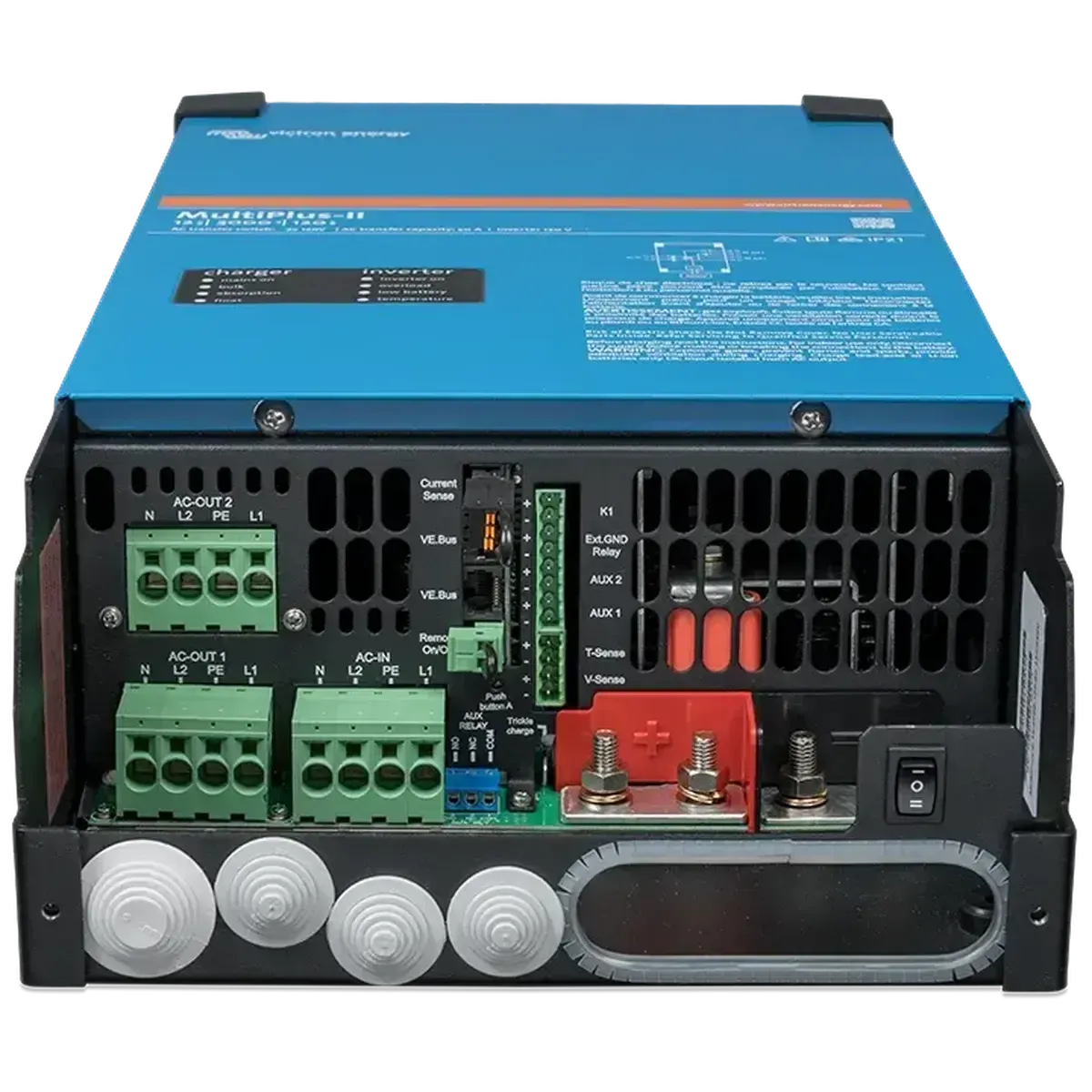

Victron Energy MultiPlus-II 12/3000/120-50 2x120V (UL) Overview
The Victron Energy MultiPlus-II is a top-tier power inverter and charger designed for reliable and efficient energy management. Combining a true sine wave inverter and adaptive battery charger into one compact unit, it’s built for off-grid systems, RV applications, marine setups, and backup power solutions. Certified with UL standards, this model ensures safety and reliability for residential and commercial use.
With PowerAssist technology, it prevents overloads on limited AC sources, like generators or shore power, by supplementing power with stored battery energy when needed. Additionally, the MultiPlus-II guarantees uninterrupted AC power by switching seamlessly to inverter mode during outages, making it a dependable choice for critical systems.
Features of Victron Energy MultiPlus-II 12/3000/120-50
PowerAssist Technology
- Automatically reduces battery charging to prevent generator or shore power overload.
- Supplements power output using energy stored in batteries for added flexibility.
Uninterrupted AC Power
- Ensures seamless power transfer with a 20-millisecond switch from shore or generator power to internal inverter mode, maintaining uninterrupted device operation.
Parallel and Phase Configurations
- Allows for parallel operation with up to six units to increase power output.
- Supports three-phase and split-phase configurations for larger or more complex systems.
Remote Monitoring and Control
- Integrates with a GX device (e.g., Cerbo GX) for access to the VRM app and portal.
- Monitor and control your system globally from any device, with features like automatic generator start and advanced settings adjustments.
Specifications
| Feature |
Details |
| Model Number |
PMP122305102 |
| PowerControl & PowerAssist |
Yes |
| DC Input Voltage Range |
9.5-17V |
| Output Voltage |
2x120V/60Hz |
| Max Battery Charge Current |
120A |
| AC Input Current |
50A |
| Dimensions (H x W x D) |
14.3 x 10.2 x 8.6 inches |
| Weight |
40 lb |
What's in the Box
-
1 x Victron Energy MultiPlus-II Inverter
- Model: 12/3000/120-50 2x120V (UL)
Warranty
-
5-year limited warranty with an option to extend to 10 years for an additional cost.
- Battery warranty details:
-
Lead-acid and AGM batteries: 2 years.
-
Lithium batteries: 3 years.
Applications
The Victron Energy MultiPlus-II is ideal for:
- Off-grid solar power systems.
- Backup power in homes and businesses.
- Marine and RV energy solutions.
- Industrial energy management systems.
Why Choose Victron Energy MultiPlus-II?
With advanced features like PowerAssist, uninterrupted power supply, and remote monitoring, the Victron Energy MultiPlus-II stands out as a reliable, efficient, and versatile power solution for various applications. Certified with UL standards, it ensures long-term performance and safety for your energy needs.
