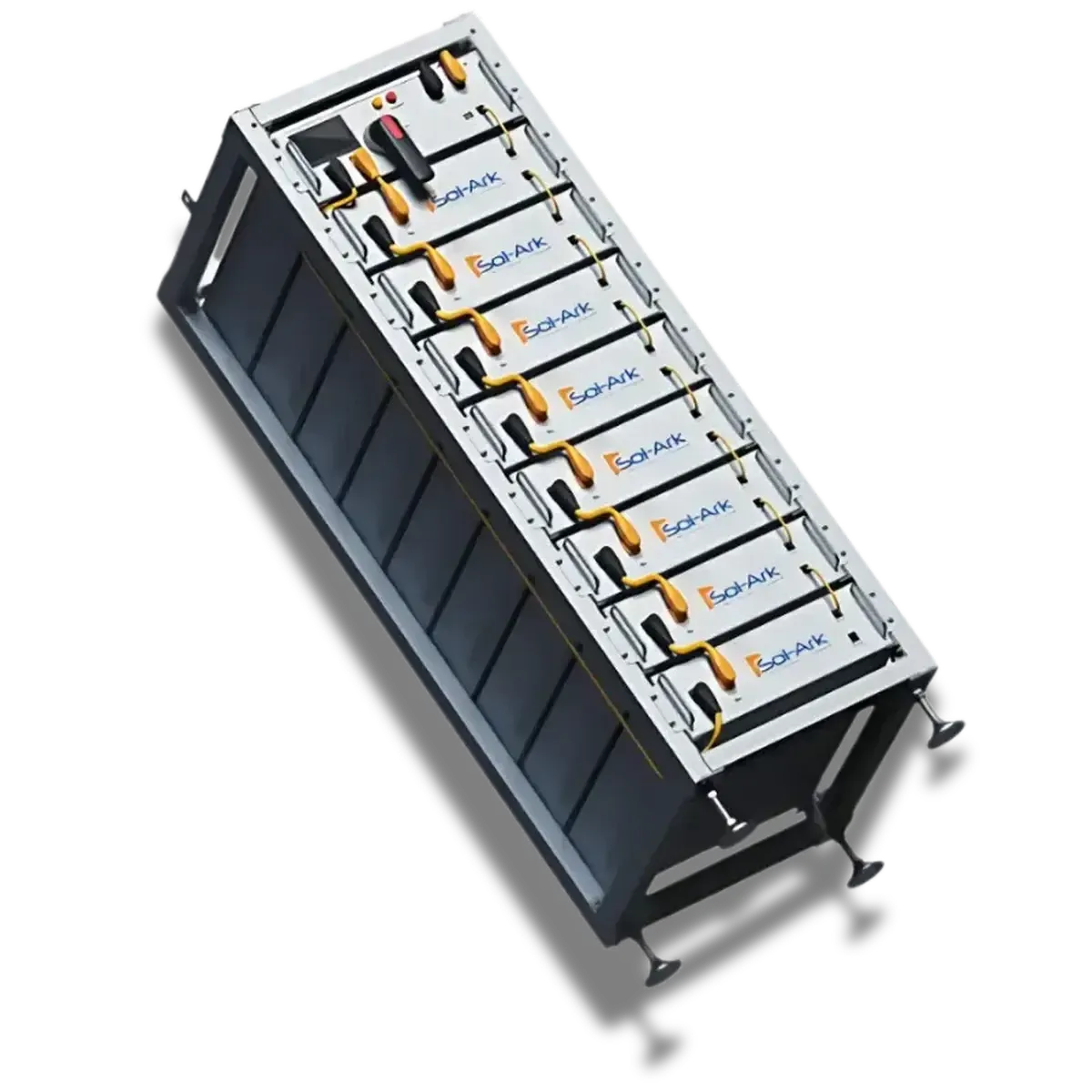

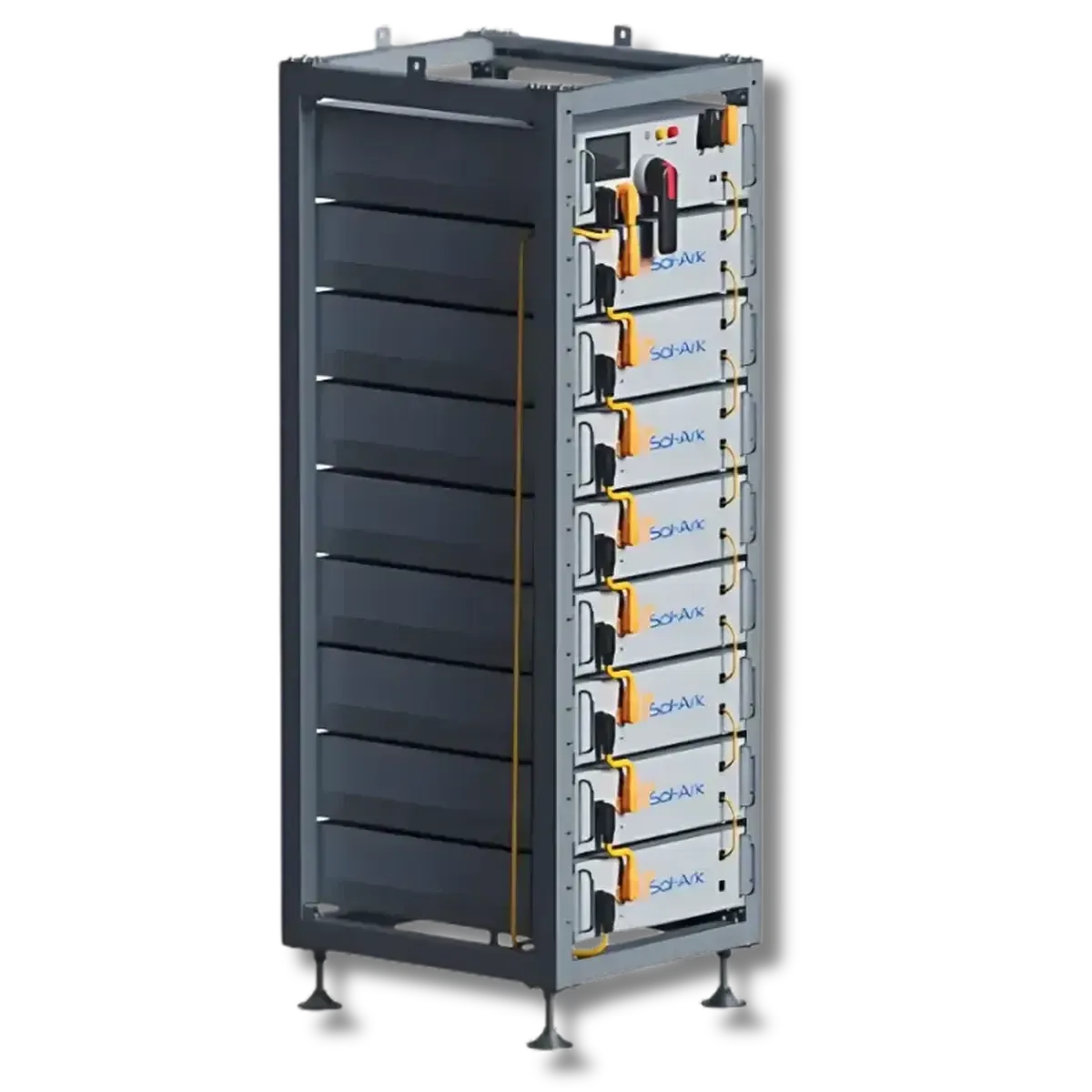

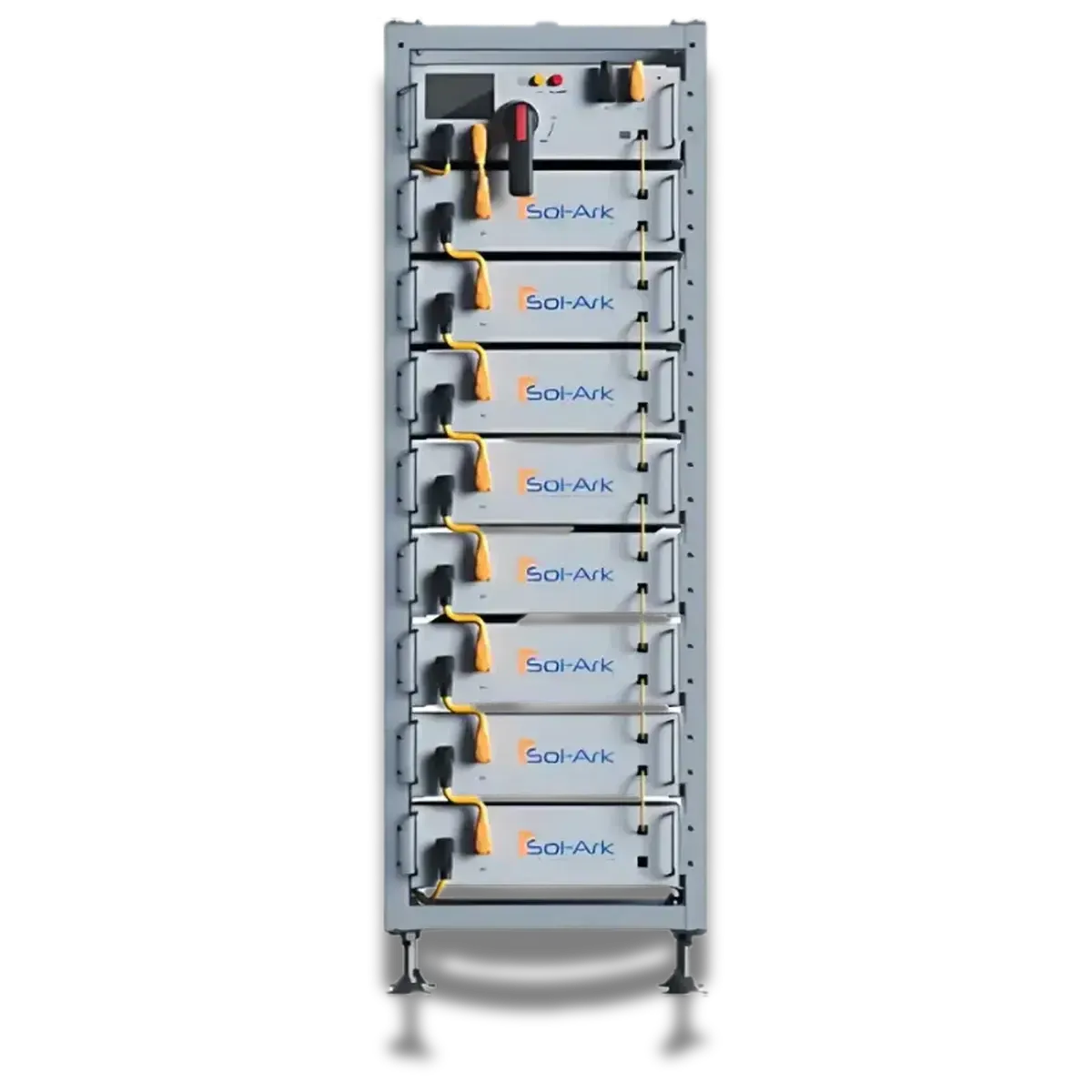

Sol-Ark High Voltage 40kWh - 60kWh Battery Bank - IP20 Indoor

Sol-Ark High Voltage 40kWh - 60kWh Battery Bank - IP20 Indoor

SKU L3 30K-HV-40-IP20
$21,380.00
Battery Banks

Notify me when back in stock

✅ FREE REPLACEMENT PARTS FOR LIFE ⚙️

Find a better price somewhere else?

Well... we will BEAT their price to get you the lowest pricing, we will find and SPEAK with a local installer, AND you get our post-purchase customer support.

Call/Text Us: 1-888-855-7286
Live Chat With an Expert

  • US Based Authorized DuroMax Dealer

    Full manufacturer warranty included

  • 4-5 Day Free Shipping + No Sales Tax

    More savings on every purchase and ships in 4-5 business day

  • Easy 30-Day Returns & Price Beat Guarantee

    Risk-free shopping + best price guaranteed

  • Post-Purchase Customer Support

    Dedicated help whenever you need it


ESTIMATED DELIVERY BETWEEN

Order within to get it by the earliest date.


Sol-Ark High Voltage 40kWh - 60kWh Battery Bank - IP20 Indoor

The Sol-Ark L3 Series Limitless Lithium is a cutting-edge, high-voltage lithium-ion battery system designed for efficient energy storage and seamless integration with solar and backup power solutions. Engineered with scalability in mind, it allows users to customize their storage capacity with 5.12 kWh battery modules, offering 40.96 kWh or 61.44 kWh configurations. Built with a robust Battery Management System (BMS), it ensures safety, reliability, and long-term performance. Whether for residential backup, commercial peak shaving, or off-grid applications, this battery bank delivers high-efficiency energy storage in a compact, indoor-rated design.

Sol-Ark High Voltage 40kWh - 60kWh Battery Bank - IP20 Indoor Features

  • Modular Design
  • Expandable storage with 5.12 kWh lithium iron phosphate (LiFePOâ‚„) battery modules, offering a customizable solution to meet energy demands.
  • High Voltage Operation
  • Operates at high voltage, minimizing energy losses and improving overall efficiency for solar and backup power systems.
  • IP20 Indoor Rating
  • Designed for safe indoor installation with protection against solid objects larger than 12.5 mm.
  • Advanced Battery Management System (BMS)
  • Actively monitors battery health, preventing overcharging, overheating, and short circuits while maximizing longevity.
  • Seamless Solar Integration
  • Compatible with Sol-Ark inverters and other high-voltage solar systems, making it an ideal solution for solar energy storage.
  • Scalable Energy Storage
  • Expandable up to 61.44 kWh, allowing users to scale their energy storage as needs grow.
 Placeholder Image

Sol-Ark High Voltage 40kWh - 60kWh Battery Bank - IP20 Indoor Applications

  • Residential Backup Power:

Ensures homes remain powered during outages, reducing reliance on the grid and enhancing energy independence.

  • Commercial Peak Shaving:

Helps businesses lower electricity costs by storing energy during off-peak hours and using it during peak demand periods.

  • Solar Energy Storage:

Stores excess solar energy generated during the day for use at night, increasing the efficiency and ROI of solar installations.

  • Microgrid & Off-Grid Solutions:
  • Provides stable energy storage for microgrid applications, remote locations, and off-grid living where consistent power is needed.
 Placeholder Image

What's Included

Everything you need is included with your product.
  • Sol-Ark High Voltage 40kWh - 60kWh Battery Bank - IP20 Indoor
  • User manual

Sol-Ark High Voltage 40kWh - 60kWh Battery Bank - IP20 Indoor Specifications
Specification Details
Compatible Inverter Sol-Ark 30K-3P-208V-N
Environmental Rating Indoor
Cell Chemistry Lithium Iron Phosphate
Battery Cabinet Capacity 40.96 kWh
System Usable Energy 36.86 kWh
Built-In DC Disconnect Rating 200A
Internal Fuse Rating 160A
Real Power (backup) Per Inverter 30 kWac
Max DC-Coupled Solar Per Inverter 39 kWac
Max AC-Coupled Solar Per Inverter 54 kWac
Max Battery Cabinets Per Inverter 16
Maximum Inverters Per System 10
Recommend Depth of Discharge 90%
System Nominal Voltage 410V
System Operating Voltage 392V — 448V
Product Dimensions (WxDxH) 58x58x163 cm (23x23x64 in)
Net Weight 628 kg (1,384 lbs)
Mounting Type Freestanding Rack Mount
Operating Temperature 4°C — 43°C (40°F — 110°F)
Humidity 5% — 85% RH
Operating Altitude 3000m (9,843 ft)
Product Warranty 10 Years

FAQs

What is the advantage of a modular battery system?

A modular system allows flexible expansion of energy storage by adding or removing 5.12 kWh battery modules. This provides a scalable, cost-effective solution that grows with energy needs. Additionally, it enables easier maintenance and upgrades, as individual modules can be replaced without disrupting the entire system.

Is the Sol-Ark High Voltage Battery compatible with existing solar power systems?

Yes, the battery is designed to work with new or existing solar installations, enhancing energy storage and backup power capabilities. Its seamless integration ensures optimized performance and adaptability for various energy setups.

What safety features are included in the battery system?

The integrated Battery Management System (BMS) monitors voltage, temperature, and performance to prevent issues such as overcharging, overheating, and electrical faults. It also includes built-in redundancy and failsafe mechanisms, ensuring reliable operation even in demanding conditions.
