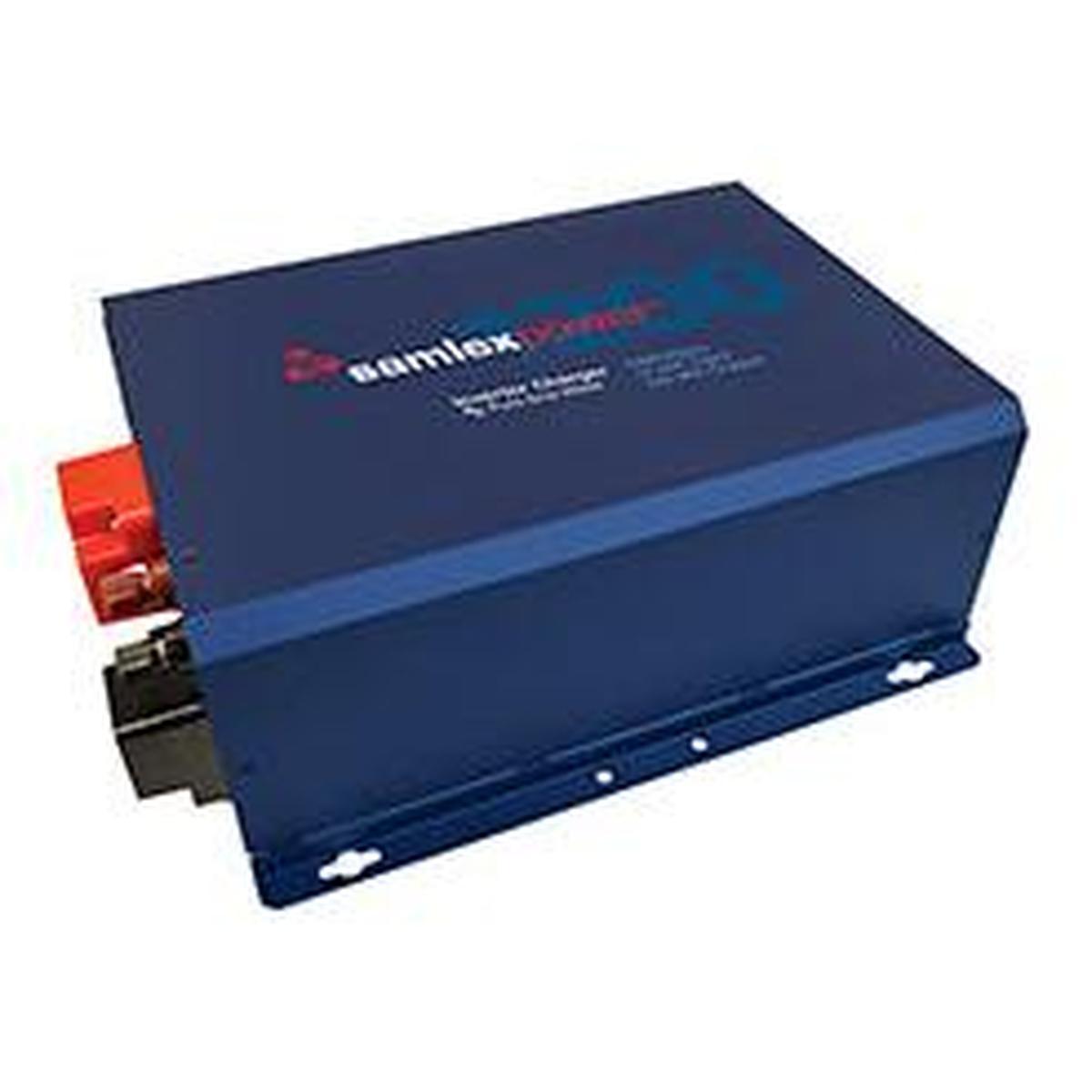

The Samlex Evolution Series EVO-2224E is the specific model that matches your description. It is an export version inverter/charger that provides 2200 watts of pure sine wave power from a 24VDC input and features an integrated 70ADC battery charger and a 40A transfer relay. This model is designed for use in regions requiring 230VAC at 50Hz.
Product features
According to DonRowe.com and Samlex America, the EVO-2224E includes the following features:
Pure sine wave output: Provides clean and stable AC power for sensitive electronics, audio equipment, and appliances.
Adaptive battery charger: Uses an intelligent, multi-stage charging algorithm to assess the battery's condition and adjust the charging process to prolong battery life.
Two AC inputs: Can accept power from a grid source and a generator simultaneously, with the grid as the priority input.
Solar charge controller input: Offers seamless integration with a solar charging system by connecting a solar charge controller directly to the EVO unit.
Built-in transfer relay: The 40A transfer relay automatically switches between power sources, with a transfer time of less than 16 milliseconds when switching from the grid to the inverter.
Advanced protection: Features "Bullet-Proof Intelligence" with nine physical monitoring points scanned thousands of times per second to detect and protect against faults before damage occurs.
Power boost: Provides a 3x surge capacity on startup for inductive loads, along with power boost features for sustained overloads (140% for 30 seconds, 120% for 5 minutes).
Optional remote control: An optional EVO-RC remote control, sold separately, can be used for programming parameters, viewing real-time performance data, and logging history on an
SD card.
Specifications
Below are the key specifications for the Samlex EVO-2224E, based on information from DonRowe.com:
Specification Details
Inverter input voltage 24 VDC
Inverter output voltage 230 VAC, 50 Hz
Continuous power 2200 VA (10 A)
Surge power (5 sec) 3300 W (15 A)
Charger input 230 VAC, 50 Hz
Charger output current 70 ADC
Transfer relay 40 A
Output waveform Pure sine wave
Weight 57.0 lbs (25.9 kg)
Dimensions (L x W x H) 12.8 x 16.8 x 8.1 inches (325 x 426 x 207 mm)
