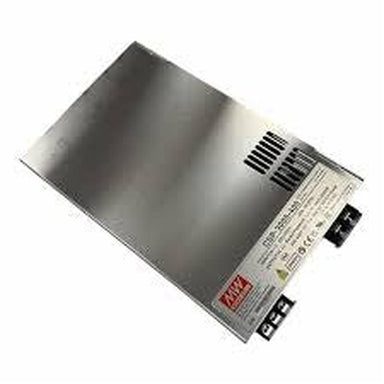

The Meanwell power supply with 3000W output, 250V nominal voltage, and 12A current is the CSP-3000-250 model. It is an enclosed, industrial-grade power supply featuring programmable output and active current sharing capabilities.

Product specifications

Model number:

CSP-3000-250
Output power: 3000W
Output voltage: 250V DC
Output current: 12A
Input voltage range: 180–264V AC
Efficiency: Up to 93%
Cooling: Forced air cooling with built-in DC fans
Operating temperature: -20°C to +60°C (with derating)
Protections: Short circuit, overload, over-voltage, over-temperature, and fan failure
Warranty: 5 years

Key features

Programmable output: The output voltage and current levels can be externally programmed.
Active current sharing: Up to three units can be connected in parallel for a combined output of up to 9000W.
Active Power Factor Correction (PFC): This function helps to improve the efficiency of the power supply.
Remote control: It includes built-in remote ON-OFF control, an auxiliary power source, and a power-good signal.
Conformal coating: An optional conformal coating on the internal components minimizes the risk of failure from moisture.

Typical applications

The CSP-3000-250's features make it suitable for various industrial and high-power applications:

Factory automation
Test and measurement instruments
Laser-related machinery
UV curing equipment
Burn-in facilities
