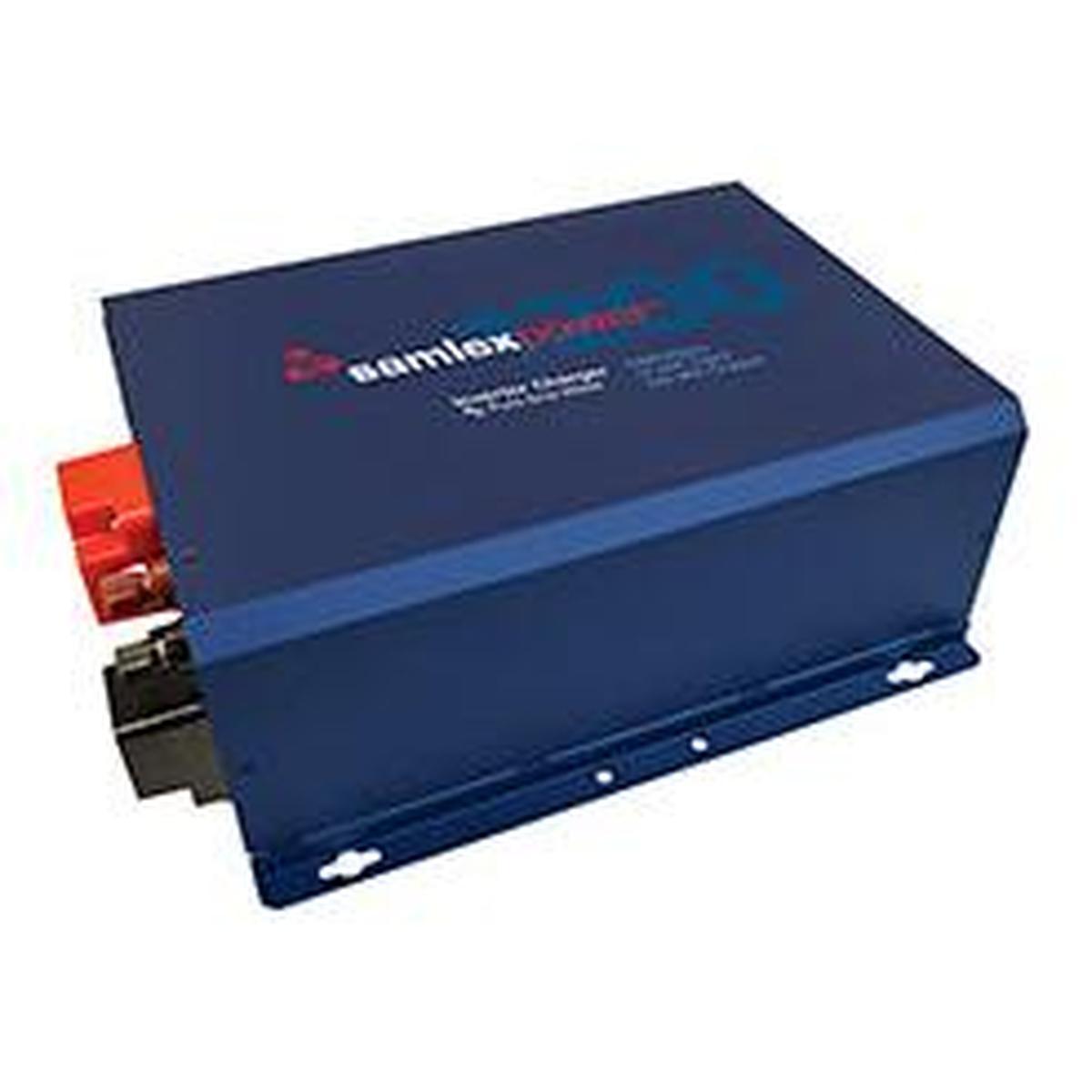

The Samlex Evolution Series EVO-2212E is a 2200 Watt pure sine wave inverter, 12 VDC input, and 230 VAC output export version. It is a combined unit that also features a 100 Amp adaptive battery charger and a 40 Amp transfer relay, making it a comprehensive off-grid power solution. The "E" designation in the model number denotes that it is the export version designed for use in regions with 230 VAC power.
Key features
Integrated system: The EVO-2212E combines a pure sine wave inverter, a multi-stage battery charger, and a 40A automatic transfer relay in a single, affordable unit.
Multiple AC inputs: It has two separate AC inputs, allowing you to connect both the grid and a generator simultaneously without needing an external transfer relay. The unit prioritizes the grid connection.
Adaptive battery charging: The advanced 4-stage charger uses an adaptive algorithm during the bulk stage to assess the battery's condition and adjust the remaining charging stages accordingly. This minimizes charging time and extends battery life.
High surge power: The inverter offers a high surge capacity, with a 5-second rating of 3300 W, allowing it to handle heavy loads from starting motors and other appliances.
Advanced protection: It features "Bullet-Proof Intelligence," which continuously monitors for fault conditions, such as low voltage, over-voltage, and overheating, and initiates a healthy shutdown to prevent damage.
Temperature-controlled cooling: The internal fans are controlled by five temperature sensors, reducing unnecessary fan noise and conserving energy.
Remote monitoring (optional): With the separately sold EVO-RC remote control, you can view real-time performance, log data, and program parameters.
Durable design: The circuit board is conformally coated to protect against vibration and corrosion, making it suitable for high-humidity and marine environments.
Technical specifications
Feature Specification Source
Model EVO-2212E
Inverter Continuous Power 2200 VA
Inverter Surge Power (5 sec) 3300 W
Inverter Input 12 VDC
Inverter Output 230 VAC, 50 Hz
Inverter Waveform Pure sine wave
Battery Charger Input 230 VAC, 50 Hz
Battery Charger Output Current 100 ADC
Battery Charger Output Voltage 12 VDC
Transfer Relay 40 Amp
Dimensions (LxWxH) 12.8 x 16.8 x 8.1 inches (325 x 426 x 207 mm)
Weight 59.0 lbs (26.8 kg)
Safety Certifications CE marked and RoHS Compliant
