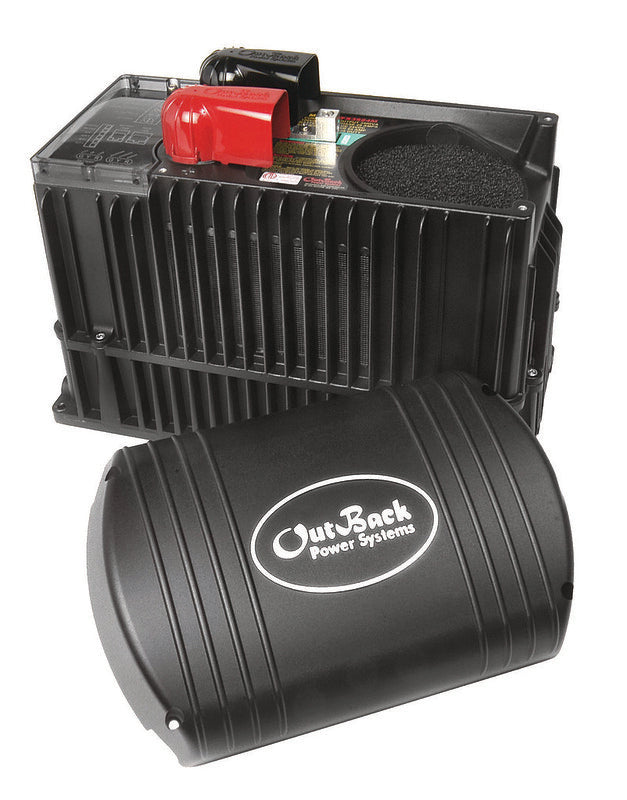

OutBack Power VFXR3648A-01 3.6kW 48VDC 120VAC Vented Grid/Hybrid Inverter/Charger. This versatile unit can be configured for either grid-interactive or off-grid systems and features a modular design for future expansion.
Product features
Dual functionality: Capable of both off-grid and grid-connected operation in a single unit, providing flexibility for system designers and users.
Pure sine wave output: Delivers clean, reliable AC power for sensitive electronics, appliances, and critical systems.
Modular and stackable: Can be expanded for increased power output. Up to nine inverters can be combined for three-phase systems, or ten for grid-tied systems.
Rugged chassis: The vented model features a NEMA type 1 die-cast aluminum chassis, designed to operate in harsh environmental conditions like high temperatures, humidity, or corrosive salt air.
Programmable modes: Features seven different operational modes, including a "GridZero" mode to minimize dependence on the utility grid.
Advanced battery charging: The Advanced Battery Charging (ABC) profile supports advanced battery chemistries, such as lithium-ion, with expanded voltage and timing controls.
Generator assist: The programmable modes include generator assist functionality to supplement power when needed.
Remote monitoring: When paired with an optional MATE3s, it supports remote monitoring and control via internet-connected devices.
Software updates: The software is field-upgradable to ensure your system is always up-to-date with the latest features.
Electrical specifications
Continuous power rating: 3600 VA.
Nominal DC input voltage: 48 VDC.
AC output voltage: 120 VAC (100–130 VAC).
AC output frequency: 60 Hz (50 Hz selectable).
Continuous battery charge output: 45 ADC.
Typical efficiency: Up to 93%.
AC input: 60 Amp AC input.
