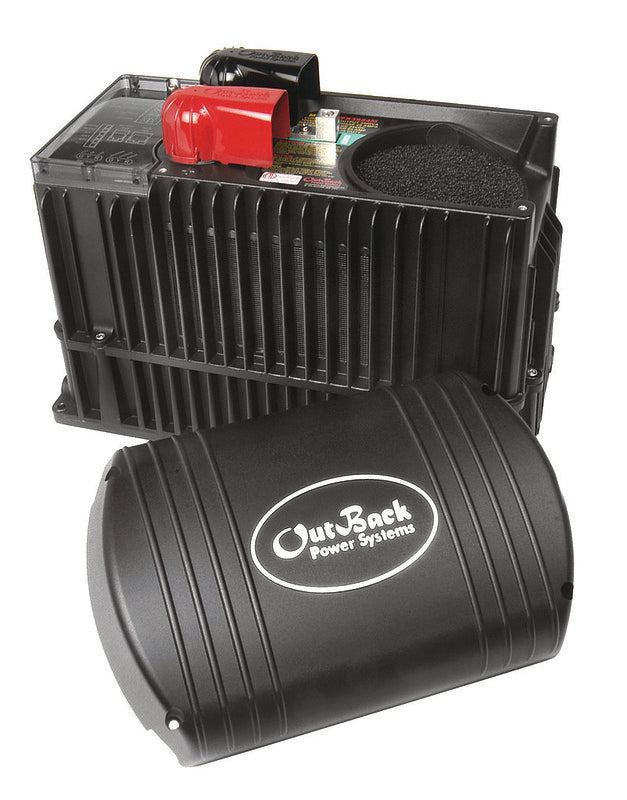

The OutBack VFXR3524A-01 is a 3.5 kW (3,500 VA), 24 VDC, 120 VAC inverter/charger from OutBack Power's FXR Vented Series. It is a versatile "Grid/Hybrid" device that can be programmed for both off-grid and grid-interactive operations.
Specifications
According to Solar Electric Supply, OutBack Power, and SunWatts, the VFXR3524A-01 inverter has the following specifications:
Model: VFXR3524A-01
Maximum AC power output: 3,500 VA at 25°C
Nominal DC input voltage: 24 VDC
Nominal AC output voltage: 120 VAC at 60 Hz (50 Hz selectable)
Continuous AC RMS output current: 29.2 AAC
Continuous battery charge output: 82 Amps DC
Input voltage range: 85 to 140 VAC, adjustable with the MATE3s system controller
Peak efficiency: 92%
Battery compatibility: Advanced Battery Charging (ABC) features support lithium-ion and other advanced battery technologies.
Warranty: Standard 5-year, with an optional 10-year warranty available.
Dimensions (H x W x L): 13 x 8.25 x 16.25 inches
Weight: 61 lbs
Key features
Flexible grid/hybrid design: Can be used in multiple applications, including off-grid, grid-interactive, and backup power. It is field-programmable to switch between modes.
Programmable operating modes: Includes GridZero mode, which minimizes grid dependence, and Support Mode for integrating a generator.
Modular and stackable: Multiple FXR units can be stacked to increase output power. Up to nine units can be combined for three-phase systems, and up to ten units for grid-tied applications.
Durable chassis: Built with a vented, die-cast aluminum chassis designed to withstand harsh environmental conditions.
Advanced monitoring: When paired with a separate MATE3s system controller, it can use OPTICS RE for remote system monitoring.
