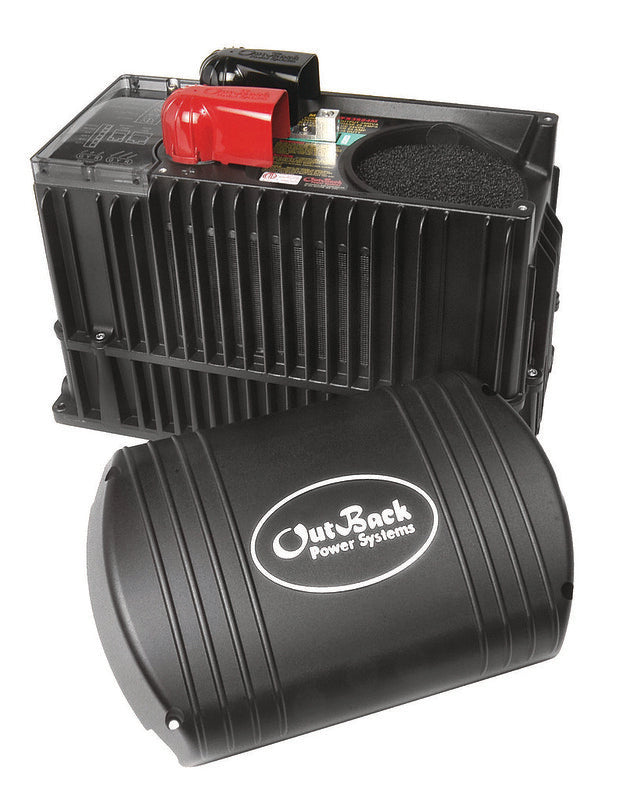

The OutBack VFXR3048E is the specific model number for the 3.0 kW, 48 VDC, 230 VAC inverter/charger in the OutBack Power FXR Vented series. As a "Grid/Hybrid" device, it can be configured for both grid-tied and off-grid battery-based systems.
Features and benefits
Dual functionality: The VFXR3048E provides the flexibility to be used in either an off-grid or grid-interactive configuration. It can feed excess power back to the grid in grid-tied mode and automatically provide backup power during an outage by switching to the battery bank.
Multiple operating modes: The inverter has seven programmable operating modes, including a "GridZero" mode that prioritizes minimizing grid dependence.
High efficiency: According to the official OutBack Power specifications, the VFXR3048E has a typical operating efficiency of 93%.
Modular and stackable: The design is modular, allowing multiple units to be stacked. This feature makes it possible to increase power output over time or to configure a three-phase system.
Advanced battery charging: The Advanced Battery Charging (ABC) feature supports modern battery chemistries like Lithium-Ion, Aqueous Ion, and Flow, with expanded charging voltages and parameters.
Remote monitoring: When paired with a MATE3 device, the system can be monitored and controlled remotely through OPTICS RE.
Durable design: The vented unit features a NEMA type 1 die-cast aluminum chassis, designed to withstand harsh environmental conditions, including high temperatures.
Key specifications
Below are some key technical specifications for the VFXR3048E, according to the OutBack Power FXR/VFXR E-Series datasheet.
Attribute Specification
Continuous Power Rating (@ 25°C) 3000 VA
Nominal DC Input Voltage 48 VDC (Range: 42 to 68 VDC)
AC Output Voltage (selectable) 230 VAC (Range: 200 to 260 VAC)
AC Output Frequency (selectable) 50 Hz (60 Hz selectable)
Continuous Battery Charge Output 45 ADC
Maximum AC Input Current 30 AAC
Peak Power (30 min) 3300 VA
Weight Unit: 61 lb (28 kg)
Dimensions (H x W x L) Unit: 12" x 8.25" x 16.25"
