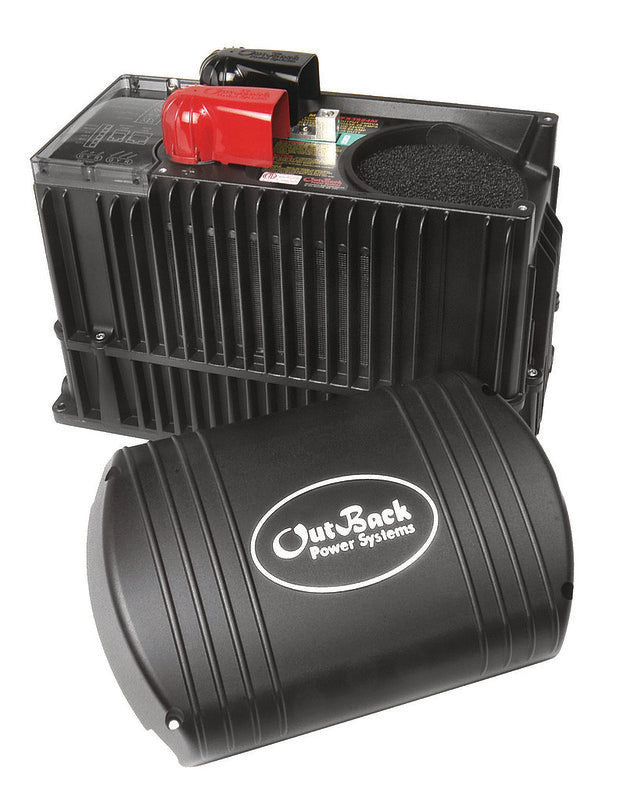

The product matching your description is the Outback Power VFXR3024E Grid-Interactive Inverter/Charger, a 3.0 kW vented unit that provides 230 VAC output from a 24 VDC battery bank. The "V" in the model number designates it as a vented unit, suitable for higher-temperature applications, while the "E" indicates it is the 230 VAC international export model.
Key features
Dual-purpose functionality: The VFXR3024E is a versatile "Grid/Hybrid" unit that can be programmed for both off-grid stand-alone systems and grid-interactive applications. This allows you to either sell excess power back to the utility or use it for battery backup power.
Programmable modes: The inverter is programmable with seven different modes, including GridZero mode, which minimizes grid dependence, and Support Mode, which allows for parallel connection with another inverter.
Modular and expandable: It has a modular, stackable design, allowing you to expand your system by adding more inverters. Up to nine units can be combined for three-phase operation, and up to ten units for single-phase grid-tied systems.
Advanced battery charging: The unit features Advanced Battery Charging (ABC) capabilities with customizable voltage and time parameters. This allows it to accommodate various advanced battery types, such as lithium-ion.
Built for harsh conditions: The vented, NEMA Type 1 die-cast aluminum chassis is designed to operate in high-temperature, humid, or corrosive environments.
Specifications
According to the official specs sheet from Outback Power and multiple retailers:
Model Number: VFXR3024E
Continuous Power Rating: 3000 VA/3.0 kW at 25°C
Nominal DC Input Voltage: 24 VDC
AC Output Voltage: 230 VAC, selectable (200 to 260 VAC)
AC Output Frequency: 50 Hz, selectable (60 Hz)
Battery Charge Output: Up to 85 ADC
AC Input Current: 30 AAC maximum
Efficiency: Up to 92% maximum
System components
The Outback Power VFXR3024E works as part of a larger system. To utilize the unit's full capabilities for monitoring and control, it needs to be paired with other Outback Power electronics:
MATE3s: This is the system controller and display required to program and monitor the VFXR3024E. Newer FXR series inverters require a MATE3s, not the older MATE or MATE B models.
OPTICS RE: By pairing the VFXR3024E with a MATE3s, you can add OPTICS RE, a cloud-based system that allows you to monitor and control your system from any location.
FLEXpower systems: For a pre-wired, out-of-the-box solution, the VFXR3024E is also available as part of Outback's FLEXpower systems. For example, the FLEXpower One VFXR system includes the VFXR3024E inverter along with pre-wired AC and DC boxes, a charge controller, and other accessories.
