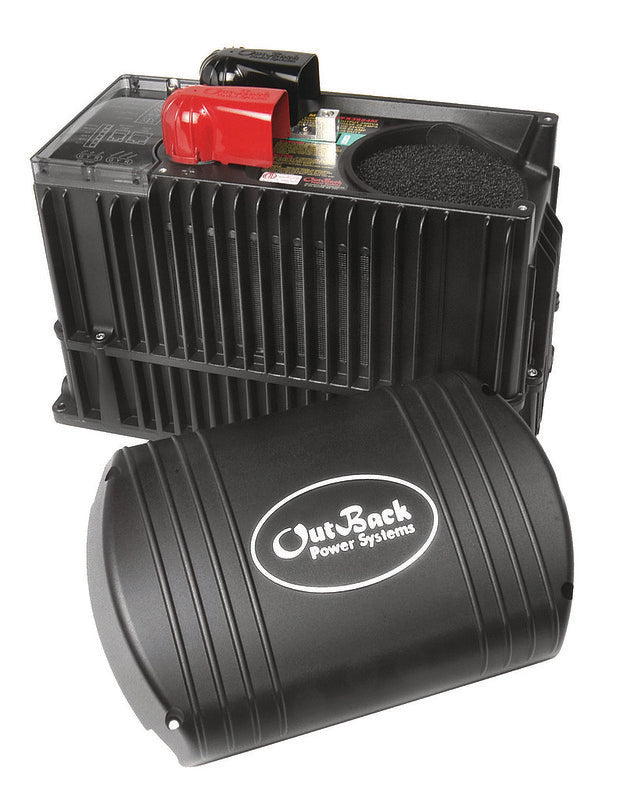

The OutBack Power FXR2348E is a sealed 2.3 kW inverter/charger designed for both grid-interactive (hybrid) and off-grid applications. It is part of the FXR E-Series and has a continuous output of 230 VAC at 50/60 Hz, with a 48 VDC input. The sealed, die-cast aluminum chassis is designed for harsh environments, protecting the internal components from humidity, salt air, and dust.
Key features
Dual functionality: The unit can be field-configured to operate as either an off-grid or a grid-interactive inverter, offering flexibility for different power system designs.
GridZero mode: A programmable operating mode that minimizes reliance on the utility grid by prioritizing power from renewable sources and batteries.
Advanced Battery Charging (ABC): With expanded charging voltage and time parameters, the FXR2348E can support a variety of battery chemistries, including traditional lead-acid, as well as newer lithium-ion and flow batteries.
Scalable and modular: For more complex or larger systems, multiple FXR units can be stacked. Up to nine inverters can be combined for three-phase operation, and up to ten can be used in a single-phase grid-tied application.
Remote monitoring: When paired with a MATE3 device, you can monitor and control system performance from a remote location using OPTICS RE software.
Built for harsh conditions: The sealed chassis prevents contamination, making the unit suitable for marine and other extreme environments.
Generator assist: The inverter has a programmable "generator assist" mode to manage backup power.
Software updates: The firmware is field-upgradable to support future features.
Specifications
According to documentation from OutBack Power, the specifications for the FXR2348E model include:
Specification Details
Continuous Power Rating 2300 VA @ 25°C
Nominal DC Input Voltage 48 VDC
AC Output Voltage 230 VAC (selectable from 200 to 260 VAC)
AC Output Frequency 50 Hz (selectable to 60 Hz)
Maximum AC Input Current 30 AAC
Continuous Battery Charge Output 35 ADC
Typical Efficiency 93%
Dimensions (H x W x L) 13 x 8.25 x 16.25 in (Unit)
Weight 62 lbs / 29 kg (Unit)
Operating Temperature -40 to 60°C
