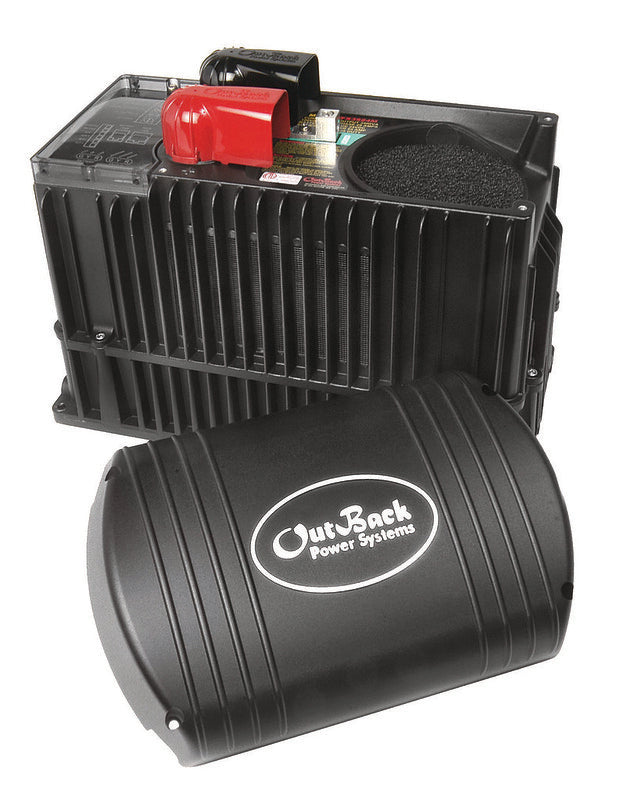

The OutBack Power FXR2024E is a 2.0 kW, 24 VDC, 230 VAC inverter/charger from the FXR Sealed Series, designed for both grid-interactive and off-grid applications. It is built with a sealed chassis, making it suitable for harsh environments with high humidity or dust.
Key product features
According to product listings from retailers and specification sheets from OutBack Power, the FXR2024E has the following features:
Dual-purpose functionality: It operates as both an off-grid and grid-connected inverter/charger in a single unit.
Sealed chassis: The die-cast aluminum chassis is sealed and corrosion-resistant, protecting the internal components from the elements.
Advanced battery charging (ABC): Supports an expanded range of battery types and charging profiles, including flooded, gel, AGM, lithium-ion, and flow batteries.
Programmable modes: Includes seven programmable modes, such as GridZero and Support Mode, which allow for a variety of power management strategies.
Modular and scalable: Multiple units can be stacked to increase power output. You can combine up to nine units for a three-phase setup or up to ten in parallel for grid-tied, single-phase operation.
Remote monitoring: When paired with a MATE3 control panel, you can use the OPTICS RE system to monitor and control the unit remotely.
True sine wave output: Provides clean, reliable power for sensitive electronics.
High efficiency: Features an operating efficiency of up to 93%.
Technical specifications
According to the FXR/VFXR E-Series specification sheet from OutBack Power, here are the detailed specs for the FXR2024E model:
Continuous power rating (@ 25°C): 2000 VA
Surge power (5 sec): 5175 VA
Nominal DC input voltage: 24 VDC
DC input voltage range: 21 to 34 VDC
Nominal AC output voltage: 230 VAC (selectable 200 to 260 VAC)
AC output frequency: 50 Hz (60 Hz switch selectable)
Continuous battery charge output: 55 ADC
Maximum AC input current: 30 AAC
Idle power: ~34 W (full) / ~9 W (search) / ~3 W (off)
Dimensions (H x W x L): 13 x 8.25 x 16.25 in / 21.75 x 13 x 22 cm
Weight (shipping): ~67 lb / ~30 kg
