Grundfos 22SQ15-220 Well Pump | 22 GPM | 1.5 HP | 220 Ft | 240 VAC

Grundfos 22SQ15-220 Well Pump | 22 GPM | 1.5 HP | 220 Ft | 240 VAC

Description

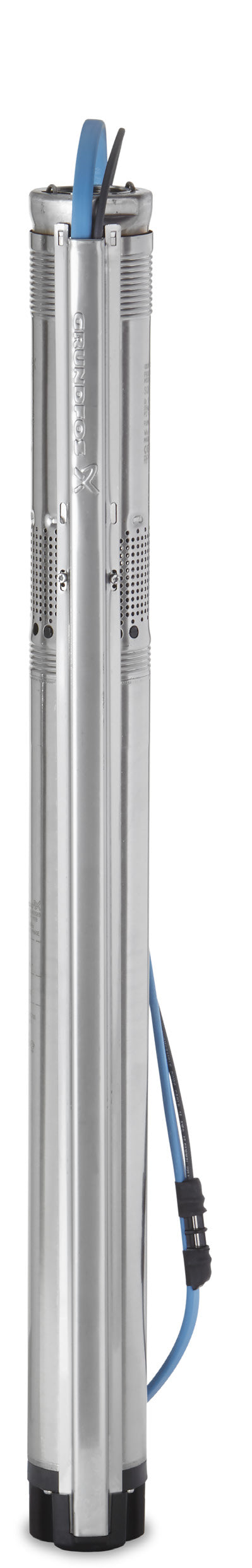

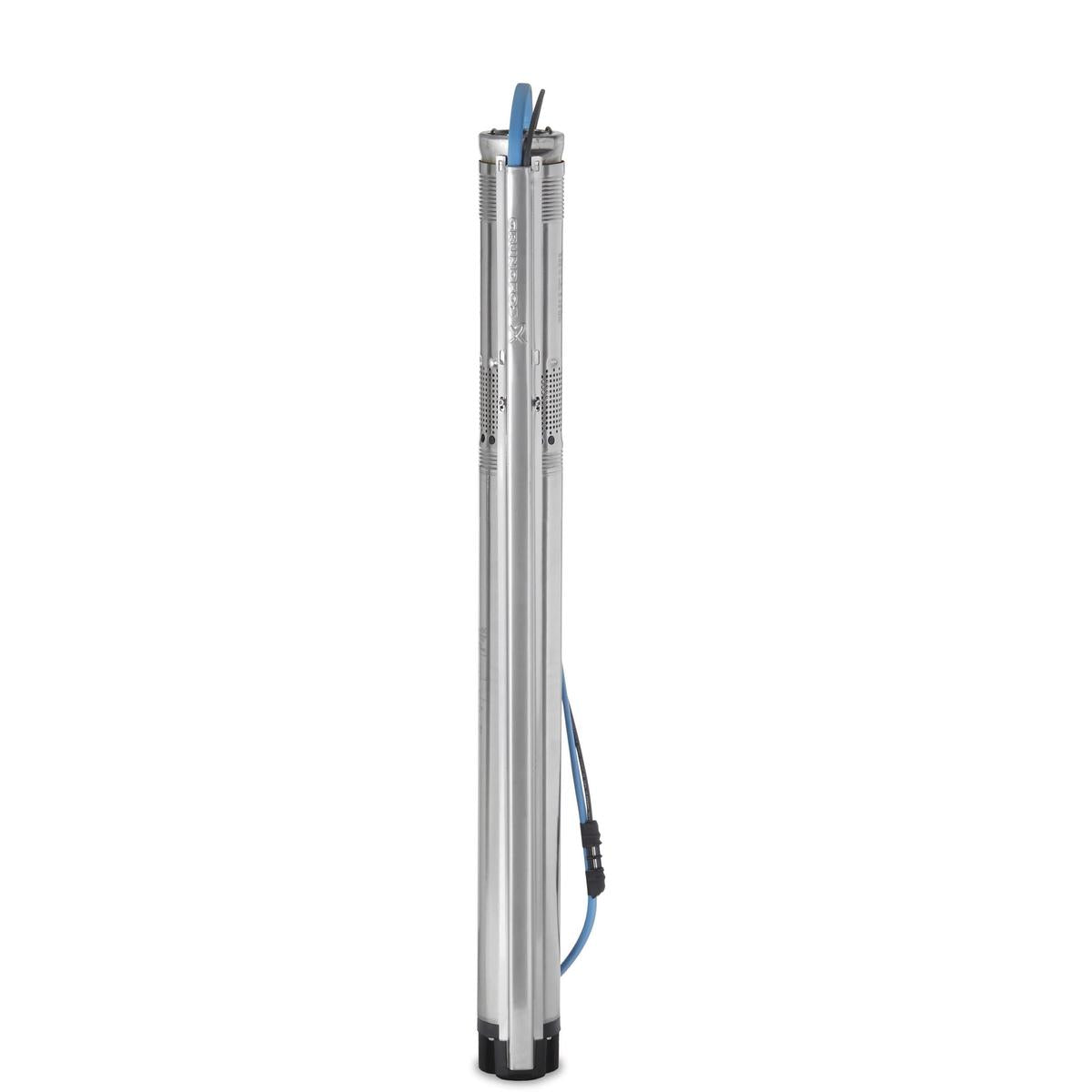

Grundfos 22SQ15-220 - SQ Series 3" Submersible Well Pump (2W - 200-240V)

• Ideal for use with 3" I.D. or larger boreholes

Rated 15 GPM @ 250' Head Lift

• Please see documents for sizing / pump curve information

1-1/2 HP Permanent-Magnet (PM) Stainless Steel Motor (2-Wire - 200-240V)

• Highly-efficient design with thermal overload protection for added safety
• Fitted with a replaceable cable plug for ease of use

Soft Start Design

• Allows for a low starting current with a smooth and steady acceleration
• Low current draw helps reduce wear & provides ability to use smaller gauge wire

Dry-Running Protection

• Helps extend pump life by preventing pump damage due to lack of water in well

Highly-Efficient Stainless Steel Pump

• Polyamide reinforced hydraulic pump components for more efficient energy use

"Floating" Impellers w/ Tungsten Carbine/Ceramic Bearings

• Allows for high wear resistance to sand which extends pump life

Top-Bearing Upthrust Protection

• Provides added protection to motor/pump during start-up

Overvoltage & Undervoltage Protection

• Prevents damage to the motor if voltage moves outside rated range

Overload Protection

• Reduces Motor RPM or turns off power to motor to prevent damage to motor

Overtemperature Protection

• Built-in temperature sensor ensures optimum operating conditions for the motor

2-Year Warranty
