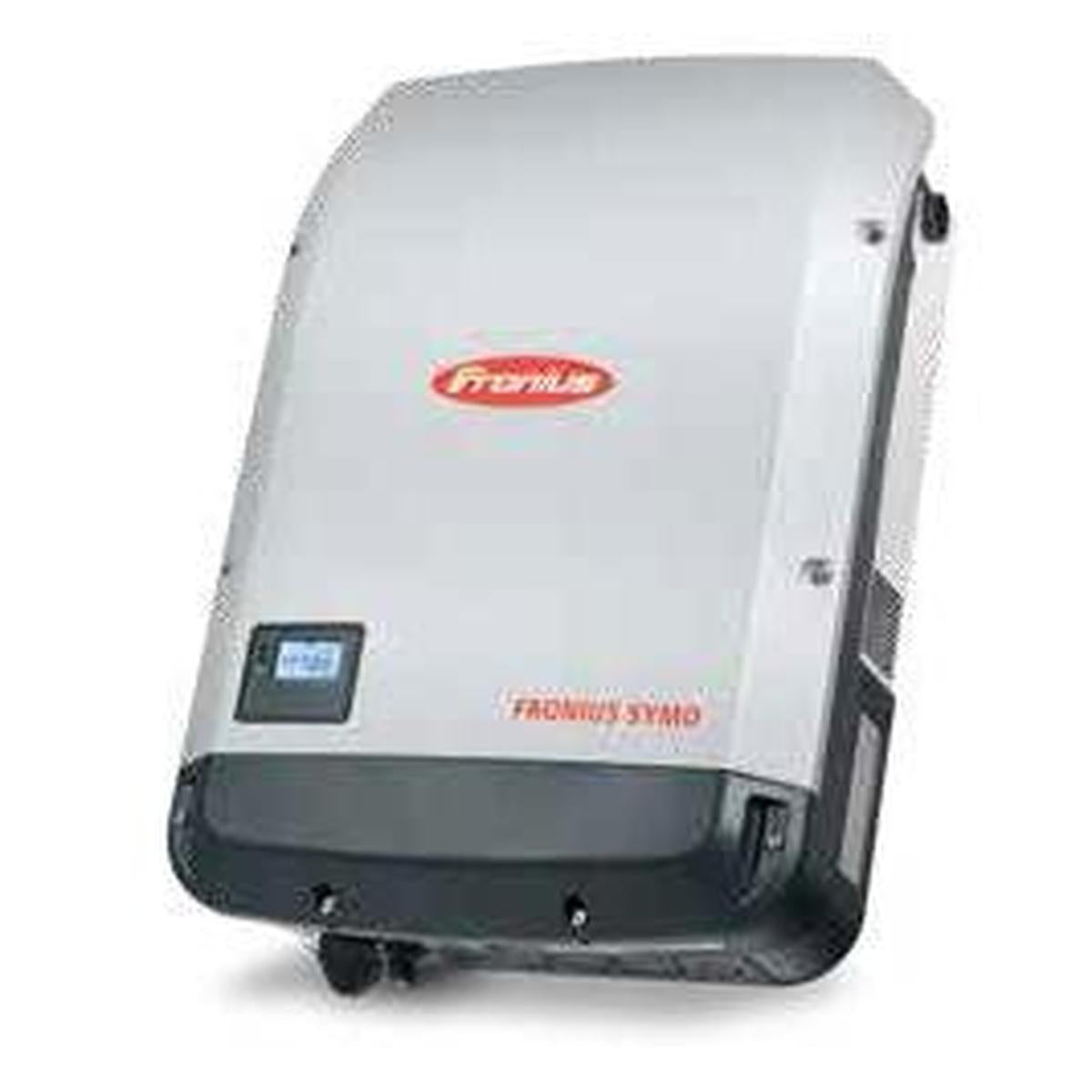

Fronius Inverter 10.0kW Symo Advanced Inverter

Name: Fronius Inverter 10.0kW Symo Advanced Inverter
Brand: Fronius Inverter
SKU: 4,210,090,801
Price: 3752.7 USD
Availability: InStock

SKU 4,210,090,801

$3,752.70

Quantity

✅ FREE REPLACEMENT PARTS FOR LIFE ⚙️

¡También ofrecemos atención al cliente en español!

Find a better price somewhere else?

Well... we will BEAT their price to get you the lowest pricing, we will find and SPEAK with a local installer, AND you get our post-purchase customer support.

Call/Text Us: 1-888-855-7286

Live Chat With an Expert

US Based Authorized DuroMax Dealer

Full manufacturer warranty included
4-5 Day Free Shipping + No Sales Tax

More savings on every purchase and ships in 4-5 business day
Easy 30-Day Returns & Price Beat Guarantee

Risk-free shopping + best price guaranteed
Post-Purchase Customer Support

Dedicated help whenever you need it

ESTIMATED DELIVERY BETWEEN

Order within to get it by the earliest date.

Description
Shipping
Why Buy From Us

Description

The Fronius Symo Advanced 10.0kW inverter is a robust, high-performance three-phase solar inverter tailored for both residential and commercial applications. It delivers 10kW of AC power and features dual MPPTs to maximize energy extraction. Equipped with Fronius Arc Guard for enhanced safety and a flexible SuperFlex Design, it allows for versatile installation options. The inverter includes built-in Wi-Fi for effortless monitoring via Fronius Solar.web and supports external systems through SunSpec Modbus. Its SnapINverter hinge design facilitates quick, straightforward installation, making it a reliable choice for efficient solar energy management.

Input data

Number of MPPT	2
Maximum input current (I _{dc max} )	27.0 / 16.5 A
Maximum short-circuit current*	55.7 / 34.0 A
DC input voltage range (U _{cc min.} - U _{cc max.} )	200 - 1000 V
Minimum DC start-up voltage (U _{dc start} )	200 V
Nominal input voltage (U _dc,r )	600 V
MPP voltage range (U _{mpp min.} - U _{mpp max.} )	270 - 800 V
Maximum usable yield point voltage range	200 - 800 V
Number of CC inputs	3 + 3
Maximum output of the PV generator (P _{cc max.} )	15 kWpeak

Output data

AC nominal power (P _ac,r )	10 kW
Maximum output power (P _{ac max} )	10 kVA
AC output current (I _{ca nom} )	14.4 A
Network coupling (U _ca,r )	3~ NPE 400/230, 3~ NPE 380/220 V
AC voltage range (U _min - U _max )	150 - 280 V
Frequency (f _r )	50/60 Hz
Frequency range (f _min - f _max )	45 - 65 Hz
Power factor (cos φ _ac,r )	0 - 1 ind./cap.

General information

Main frequency	Hz
Dimension (width)	510 mm
Dimension (height)	725 mm
Dimension (depth)	225 mm
Weight	32.1 kg
Weight with packaging	38.5 kg
Protection class	IP 66
Protection class	1
Overvoltage category (DC/AC) ¹⁾	23
Consumption in night mode	< 1 W
Cooling	Regulated air cooling
Facility	Indoor and outdoor installation
Ambient temperature range	-25°C - +60°C
Permissible air humidity	0 - 100 %
Maximum altitude	3400 m
DC connection terminal	Connection of 6x DC+, 6x DC- screw terminals 2.5 mm² - 16 mm²
AC connection terminal	5-pole AC connection screw terminals 2.5 - 16 mm²
Certificates and compliance with standards	IEC 62109-1/-2, IEC 62116, IEC 61727, VDE 0126-1-1/A1, VDE AR-N 4105, G98/1, G99/1, AS/NZS 4777.2, UNE 206007-1, CEI 0-21, CEI 0-16, NRS 097-2-1, TOR Erzeuger Typ A, EN 50549-1/-2, IEC 61683, IEC60068, IEC 63027:2023
Interference emission class	B

Performance

Maximum performance (PV - grid)	97.8%
European Performance (ηEU)	95.5 / 97.1 / 96.3%
η with 5% P _ac,r³⁾	89.0 / 91.5 / 87.1%
η with 10% P _ac,r³⁾	92.6 / 94.8 / 92.6%
η with 20% P _ac,r³⁾	94.8 / 96.7 / 95.5%
η with 25% P _ac,r³⁾	95.3 / 97.0 / 96.1%
η with 30% P _ac,r³⁾	95.7 / 97.3 / 96.5%
η with 50% P _ac,r³⁾	96.2 / 97.6 / 97.1%
η with 75% P _ac,r³⁾	96.2 / 97.8 / 97.4%
η with 100% P _ac,r³⁾	96.2 / 97.8 / 97.5%
MPP adaptation performance	>99.9%

Safety equipment

DC insulation measurement	Yeah
Overload behavior	Working point shift, power limitation
DC Disconnect	Yeah
DC Reverse Polarity Protection	Yeah
Arc detection - AFCI (Fronius Arc Guard)	Yeah

Interfaces

Wi-Fi / Ethernet LAN	Fronius Solar.web, Modbus TCP SunSpec, Fronius Solar API (JSON)
6 inputs and 4 digital I/O	Wave control receiver interface, power management
USB (Connector A) ⁴⁾	Datalogging, inverter update via USB
2 RJ 45 connectors (RS422) ⁴⁾	Fronius Solar Net
Warning exit ⁴⁾	Power management (potential-free relay output)
Datalogger and Web Server	Integrated
External input ⁴⁾	SO-Meter/Input interface for overvoltage protection
RS485	Modbus RTU SunSpec or meter connection
