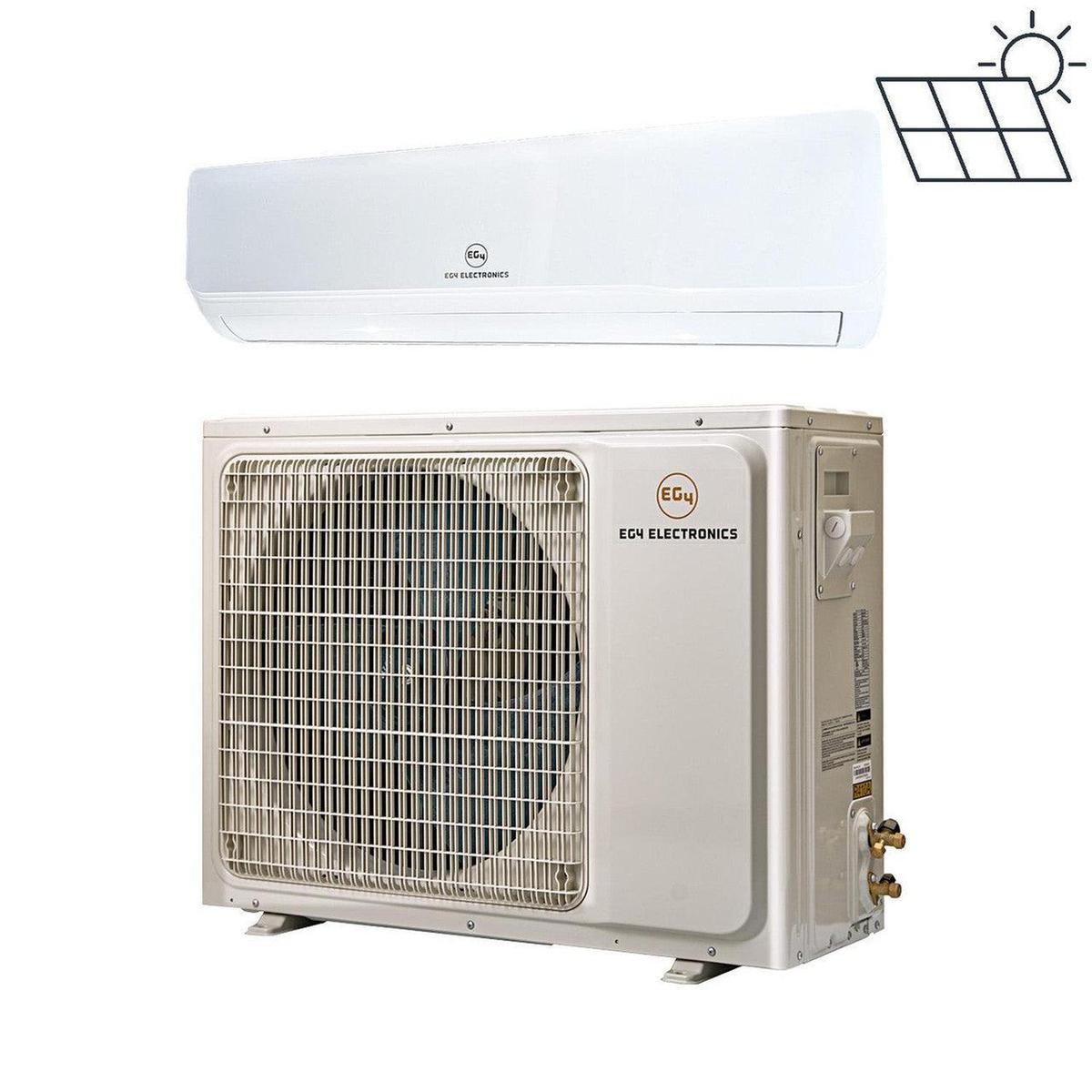

EG4 Hybrid AC/DC Solar Mini Split Air Conditioner Heat Pump 12000 BTU | SEER2 22 | Plug-N-Cool Do-It-Yourself Installation

SKU EG4MISPH12K
$2,149.95

Notify me when back in stock

Find a better price somewhere else?

Well... we will BEAT their price to get you the lowest pricing, we will find and SPEAK with a local installer, AND you get our post-purchase customer support.

  • US Based Authorized DuroMax Dealer

    Full manufacturer warranty included

  • 4-5 Day Free Shipping + No Sales Tax

    More savings on every purchase and ships in 4-5 business day

  • Easy 30-Day Returns & Price Beat Guarantee

    Risk-free shopping + best price guaranteed

  • Post-Purchase Customer Support

    Dedicated help whenever you need it


ESTIMATED DELIVERY BETWEEN

Order within to get it by the earliest date.


EG4 Hybrid AC/DC Solar Mini Split Air Conditioner Heat Pump 12000 BTU | SEER2 22 | Plug-N-Cool Do-It-Yourself Installation

The EG4 Solar Mini-Split AC is a cutting-edge ductless mini split system designed to provide efficient climate control while reducing energy costs. This ductless mini split air conditioner can plug directly into solar panels, drawing DC power during the day and automatically switching to AC power from the grid at night or on overcast days. With the innovative Plug-N-Cool technology, installation of this mini split heat pump is incredibly easy—no special tools or training required. It’s an ideal solution for homes, offices, or off-grid properties looking to save on cooling and heating costs.

Recommended Solar Input: 1000-1600W (90VDC-380VDC)

Upgrade to the EG4 Solar Mini-Split AC today and experience energy-efficient, solar-powered heating and cooling.

Placeholder Image

EG4 Hybrid AC/DC Solar Mini Split Features

  • Hybrid AC/DC Operation – Runs on solar power during the day and grid power at night.
  • 100% Solar-Powered Cooling & Heating – No inverter, battery, or charge controller needed.
  • Plug-N-Cool DIY Installation – Quick-connect self-sealing valves eliminate the need for vacuum pulling.
  • MC4 Solar Connector Compatibility – Directly connects to PV wires for easy integration.
  • AC Grid Power Limiter – Adjustable from 0-600W for optimized efficiency.
  • Versatile Power Supply Options – AC mode, DC mode, or a combination (AC/DC Auto Balance).
  • Wide Operating Temperature Range – Functions in temperatures from -10°C to 58°C.
  • Compact & Sleek Design – Ideal for off-grid, solar, and energy-efficient projects.
Placeholder Image

EG4 Hybrid AC/DC Solar Mini Split Applications

  • Off-grid homes & cabins – Efficient climate control without full grid reliance.
  • Grid-tied energy savings – Reduces utility costs by running on solar power.
  • RV, camper, and tiny home cooling & heating – Off-grid comfort with direct solar operation.
  • Workshops, garages, and offices – Climate control for indoor workspaces.
  • Emergency backup cooling & heating – Works during outages using solar power.
Placeholder Image

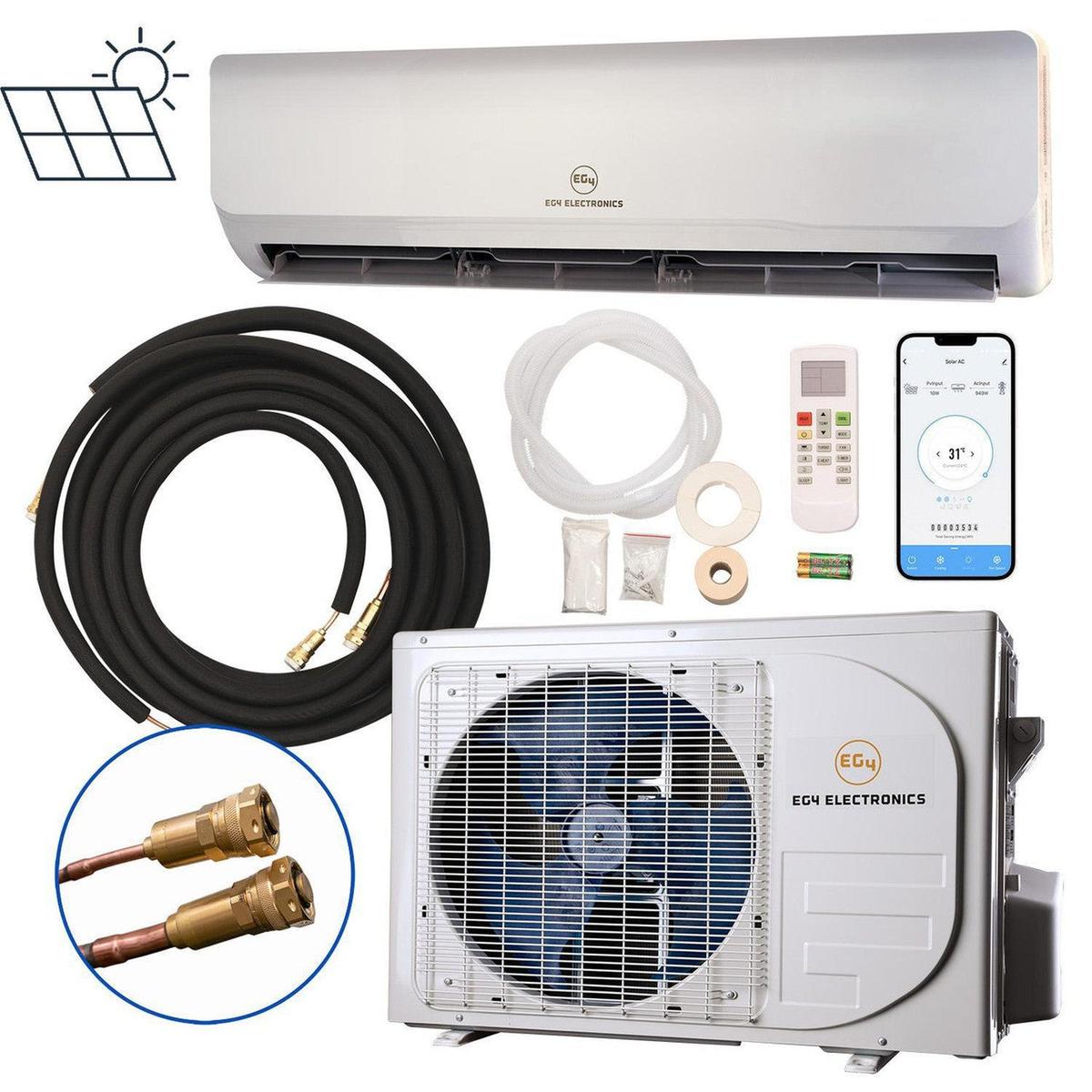

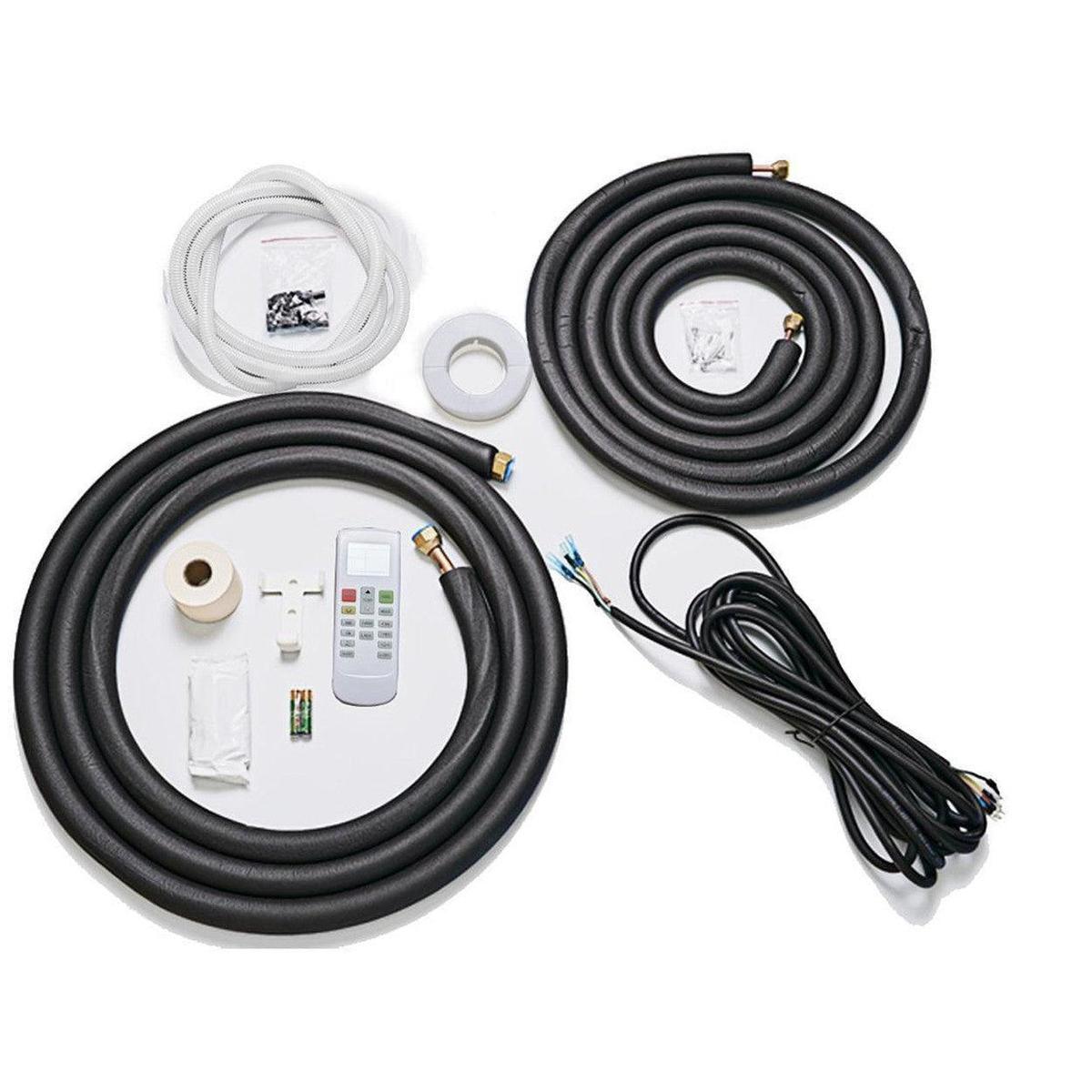

What's Included

Everything you need is included with your product.

  • Indoor Head Unit
  • Outdoor Unit
  • Pre-Charged 16.4Ft Lineset & Electrical Wire
  • LCD Remote Control
  • Installation Accessories
  • User Manual

EG4 Hybrid AC/DC Solar Mini Split Specifications

Specification Details
RATED VOLTAGE 115VAC
RATED CURRENT COOLING 8.1A
RATED CURRENT HEATING 8.26A
RATED INPUT POWER 190W – 1100W
FREQUENCY 60Hz
MINIMUM CIRCUIT AMPACITY 19.05A
MAXIMUM BREAKER SIZE 20A
MAXIMUM STARTING CURRENT 4A

ELECTRICAL (DC)

Specifications Details
RATED VOLTAGE 90VDC – 380VDC
MAXIMUM PV VOLTAGE 380VOC
MAXIMUM PV AMPERAGE (ISC) 12A
RATED PV WATTAGE 1100

RATED COOLING

Specifications Details
NOMINAL CAPACITY 12,000 BTU/h
OPERATING RANGE 3,000 – 13,000 BTU/h
EER 13.04 BTU/W
SEER2 22 BTU/W

RATED HEATING

Specifications Details
NOMINAL CAPACITY 12,500 BTU/h
OPERATING RANGE 3,000 – 13,000 BTU/h
HSPF2 10.5

EG4 Hybrid AC/DC Solar Mini Split Video

Frequently-Asked Questions

Can this AC run completely off-grid?

Yes! The EG4 Hybrid Mini Split can run directly from solar panels without an inverter or batteries.

What happens if there is not enough solar power?

The unit automatically switches to AC grid power, ensuring continuous operation.

Is installation DIY-friendly?

Yes! The Plug-N-Cool design includes pre-charged refrigerant lines, making installation quick and easy.

How many solar panels are required?

Typically, 4-6 solar panels (depending on wattage) are needed for full solar operation.

Can this unit be used in extreme temperatures?

Yes! The heat pump function provides year-round heating and cooling, even in colder climates.
