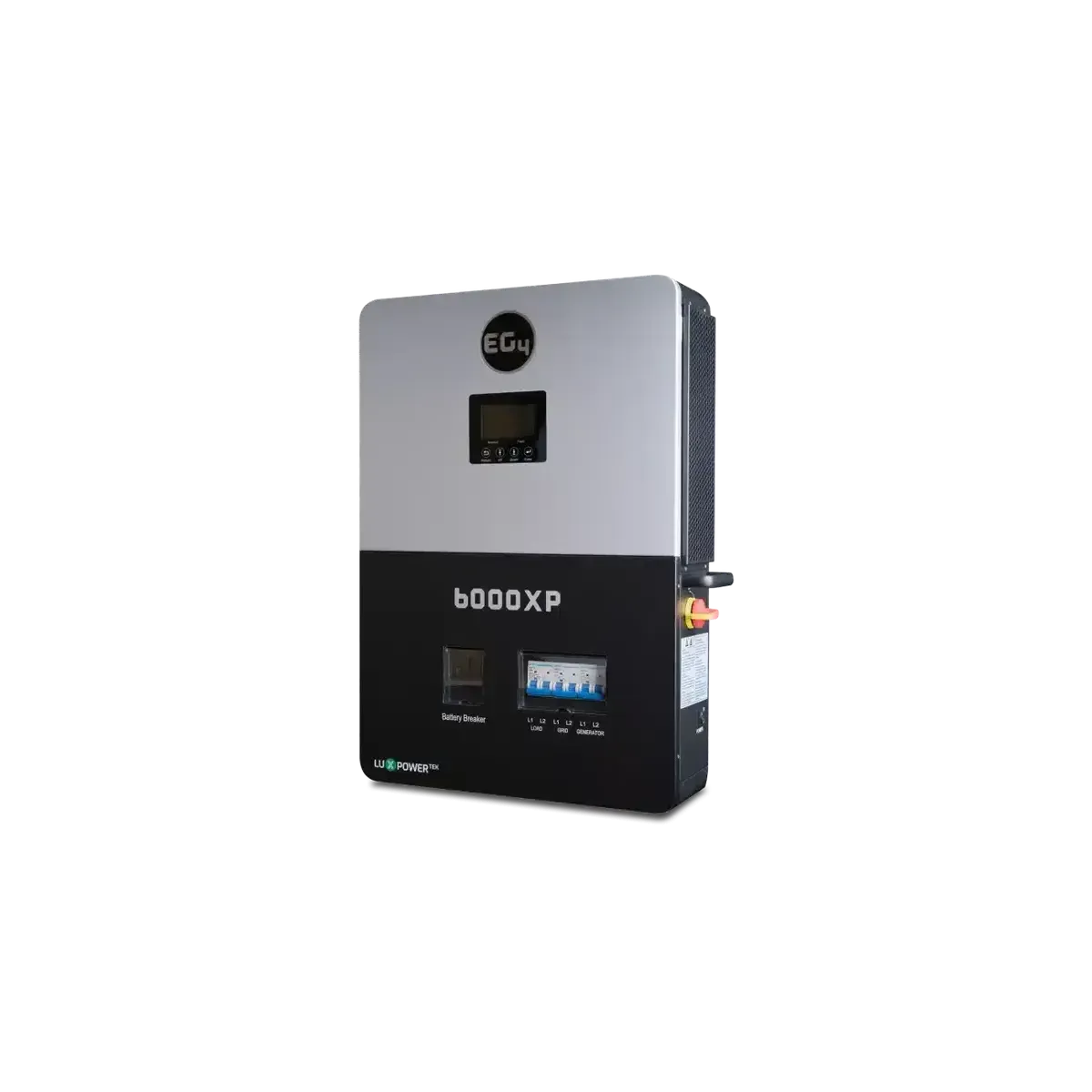

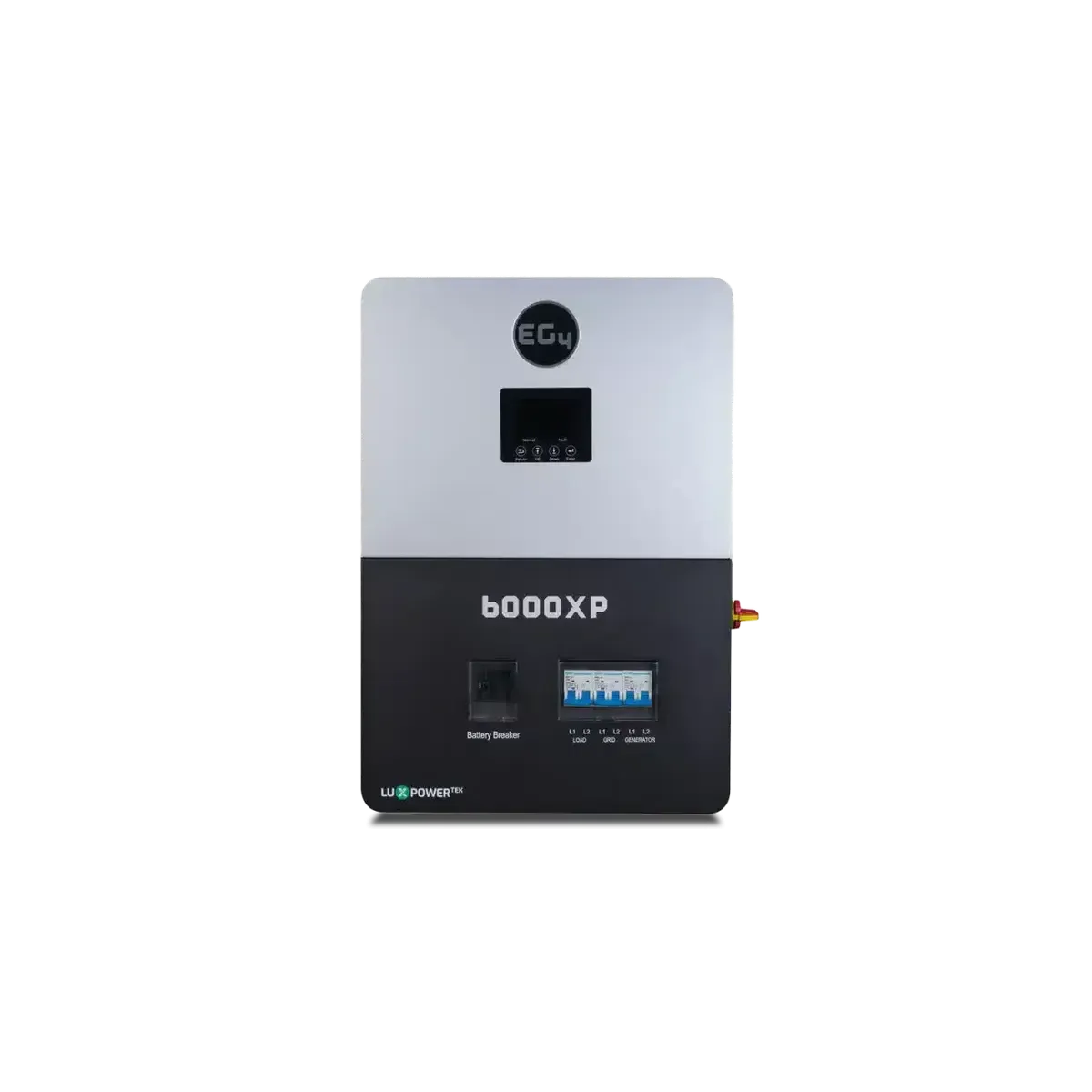

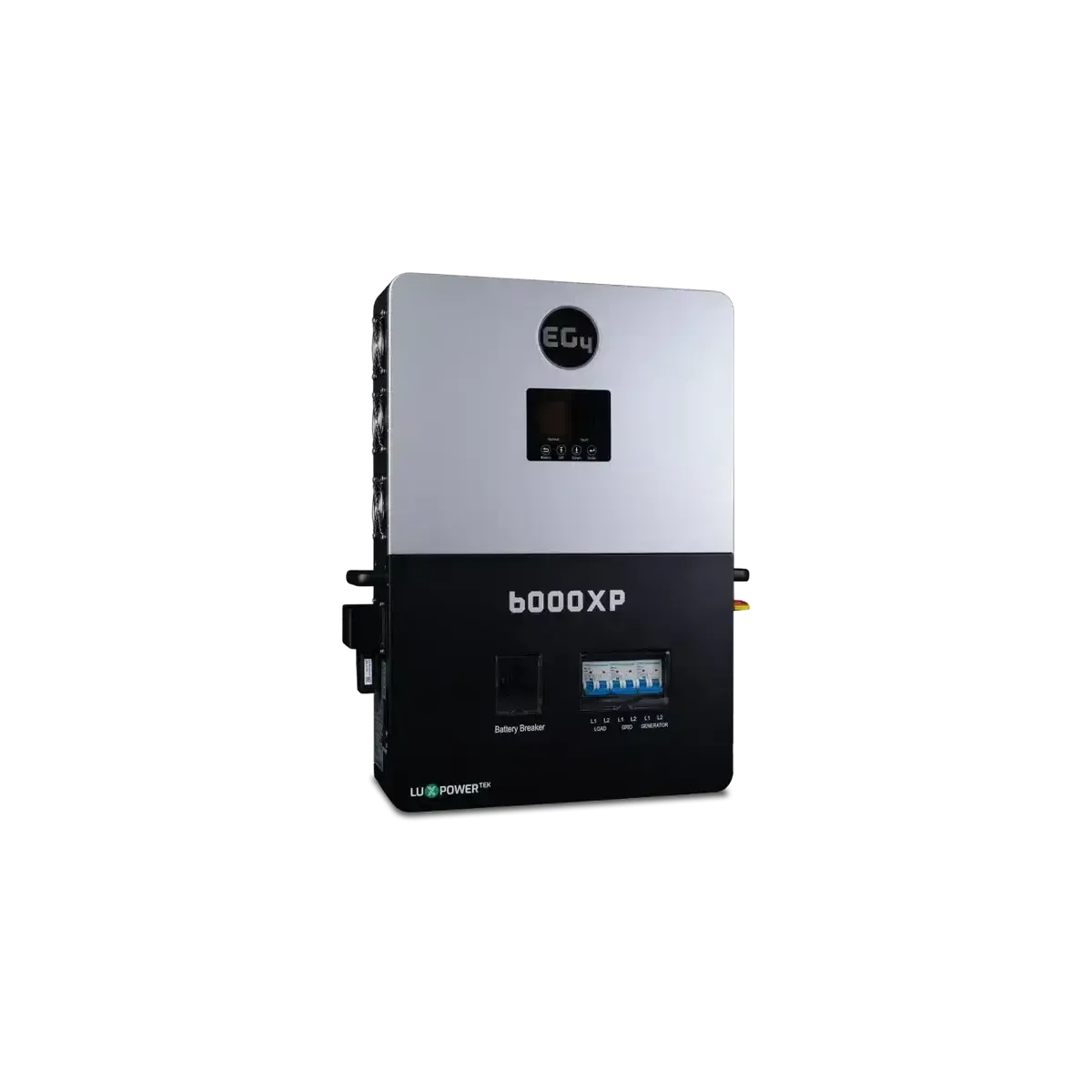

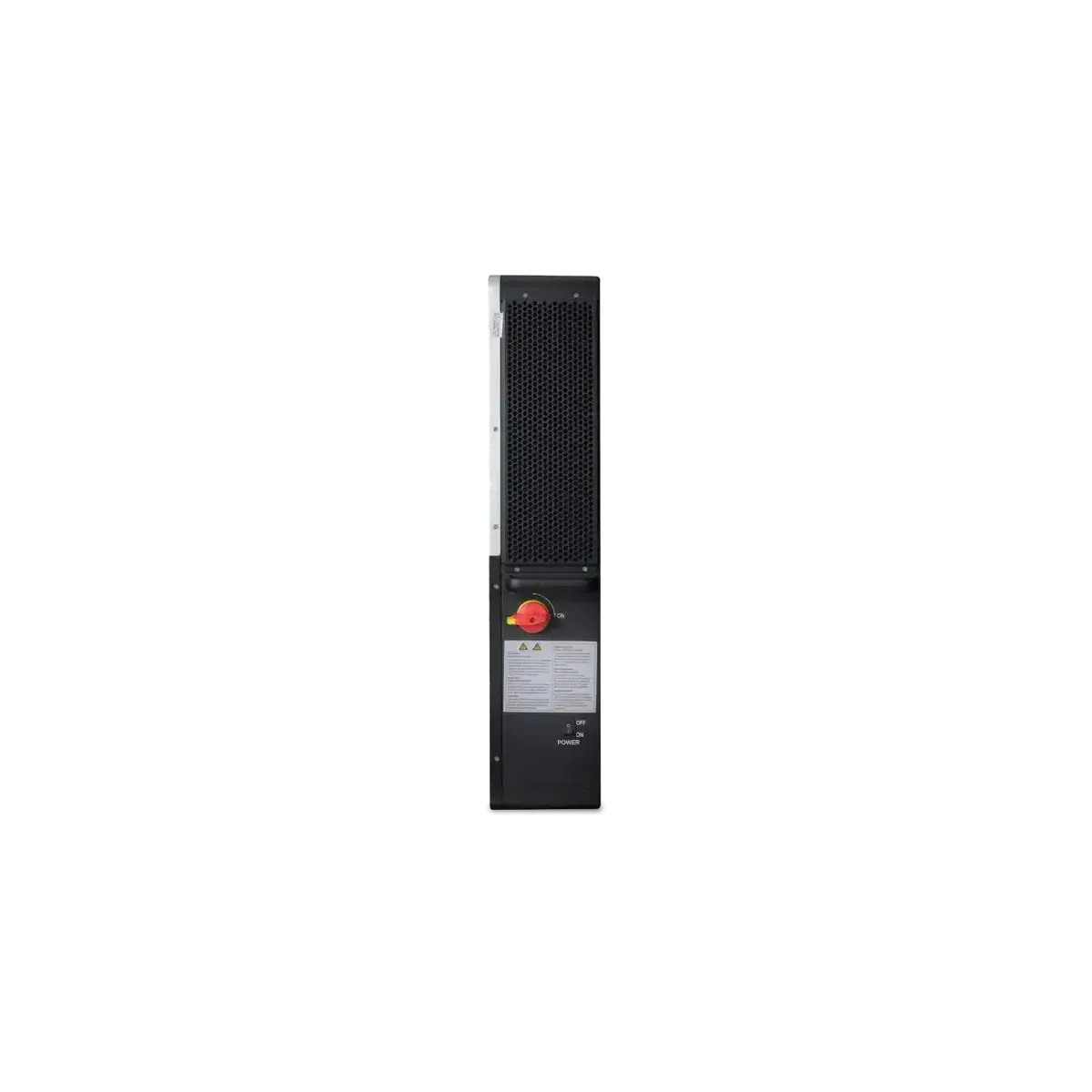

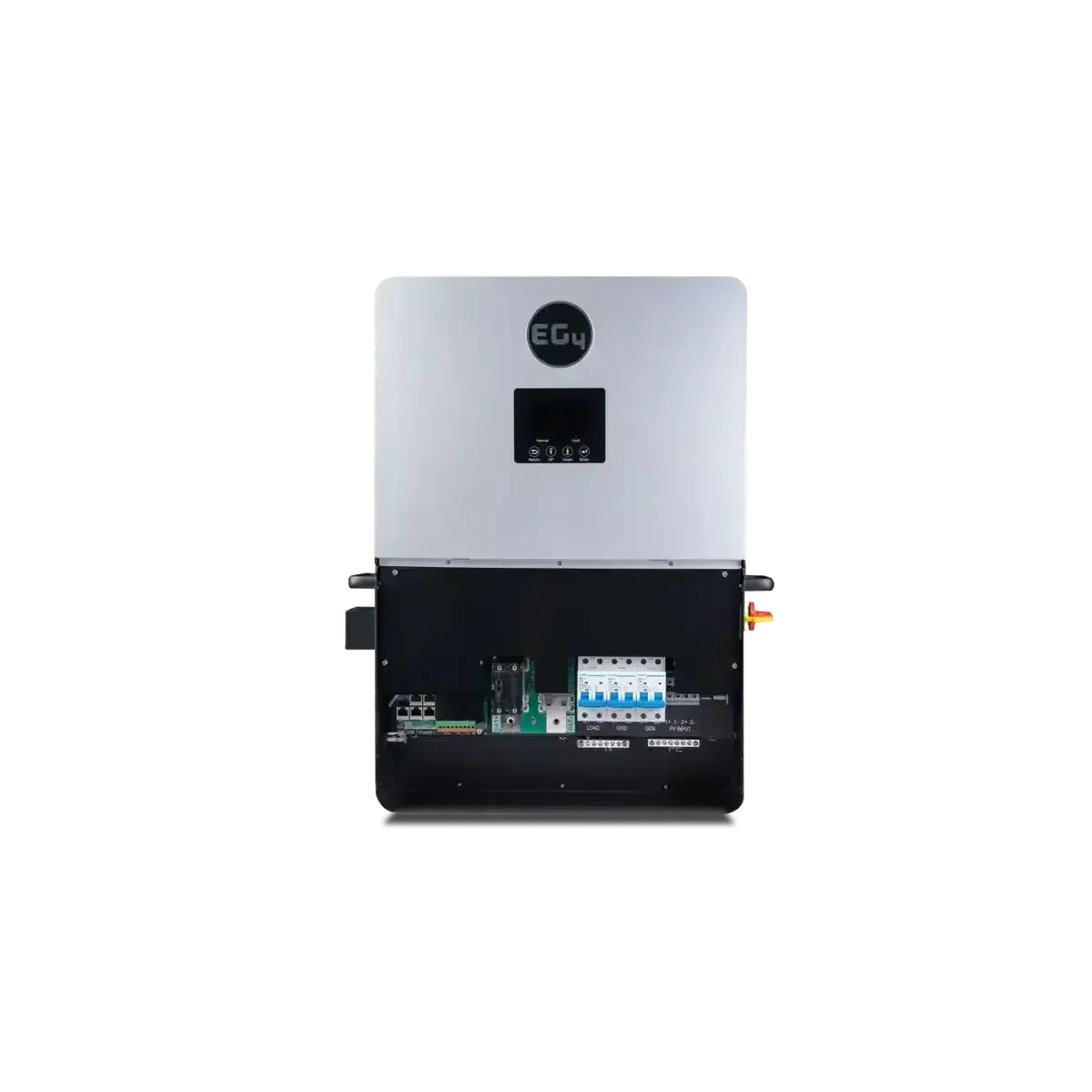

EG4 6000XP Off-Grid Inverter 8000W PV Input 6000W Output 480V VOC Input

EG4 6000XP Off-Grid Inverter 8000W PV Input 6000W Output 480V VOC Input

SKU INV026

✔ US Based Authorized EG4 Dealer

✔ No Sales Tax - Except IN

✔ Ships in 4-5 Business Days with Free Shipping

✔ Dealer Warranty Included

✔ Post-Purchase Customer Support & 30-Day Returns

✔ CALL US NOW! We will BEAT any Price!

✔ Need someone to install? We find you the LOWEST PRICE FOR INSTALLS.

Save $300.05
$2,000.00
$1,699.95

Notify me when back in stock

All items are in stock and ready to ship. All items ship in 1 business day. The estimated time of arrival is 4-5 business days.

Find a better price somewhere else? Well... we will BEAT their price to get you the lowest pricing, we will find and SPEAK with a local installer, AND you get our post-purchase customer support. CALL US NOW for all of these benefits! CALL NOW!

Achieve Off-Grid Power.

The EG4 6000XP Off-Grid Inverter offers high-performance with 8000W PV input and 6000W output, perfect for off-grid systems. Equipped with a 480V VOC input, this inverter is capable of handling a wide range of voltages, ensuring reliable and efficient power conversion.

Tech Specs
SKU: INV026

AC INPUT
AC Voltage: 120V AC / 240V AC
AC Frequency: 50 Hz / 60 Hz
Max. Continuous AC Current: 37.5A @ 240V
Max. AC Input Power: 9000W
AC Bypass: 50A

AC OUTPUT
Output Voltage: 120V AC / 240V AC
Output Frequency: 50 Hz / 60 Hz
Max. Continuous Output Current: 25A @ 240V
Output Power: 6000W
Surge Capacity: 12000W (3.5 sec) / 11000W (5 sec)
Power Factor: 0.99 (Full Load)
Reactive Power Adjustment Range: -0.8 - 0.8 Leading Adjustable
Total Harmonic Distortion: <3%
Switching Time: <15 ms (Single) / <30 ms (Parallel)

PV INPUT
No. of MPPTs (Inputs per MPPT): 2 (1)
Max. Input Current: 17A / 17A
Max. Short Circuit Input Current: 25A / 25A
DC Input Voltage Range: 100 - 480V DC
Start Up Voltage: 100V DC ± 10V DC
MPPT Operating Voltage Range: 120 - 385V DC
MPPT Voltage: 320V DC
Max. PV Array Power: 8000W (4000W per MPPT)
MPPT Efficiency: 99%

BATTERY
Nominal Voltage: 48V DC
Battery Voltage Range: 46.4 - 60V DC
Max. Discharge Current: 140A
Max. Charge Current: 125A
DC Cut-Off Voltage: 59V DC
DC Recovery Voltage: 57.4V DC
Charge Cut-Off Voltage: 58.4V DC

OPERATING ENVIRONMENT
Operating Temperature: 32ºF - 113ºF (0ºC - 45ºC)
Storage Temperature: 5ºF - 140ºF (-15ºC - 60ºC)
Altitude: <6,561 ft (2000 m)
Relative Humidity: 5 - 95%
Typical Noise Emission: <58 dB
Protection Rating: IP20
Max. Parallel Connections: 16

DIMENSIONS
Weight: 52.9 lbs (24 kg)
Depth: 5.25 in (132 mm)
Width: 18 in (457 mm)
Height: 25.5 in (648 mm)
Spec Sheet: Click Here
User Manual: Click Here
Monitoring System Guide: Click Here
Monitoring Adapter Installation Guide: Click Here
UL1741 Certificate: Click Here
Warranty: Click Here

Features
  • 2 MPPT Inputs
  • Smart Load Control
  • Variable Working Modes
  • AC Coupling Function
  • Peak Shaving Function
  • Built-In Circuit Breakers
  • Integrated UPS Module
  • LCD Touch Screen Interface
  • Seamless Switching In Under 15ms
  • Advanced Parallel ability up to 96kW

Suitable For
  • 48V Battery Systems
  • Off-Grid Backup Systems
  • Residential Solar Systems
  • Emergency Power Systems
  • AC Coupled UPS Systems
