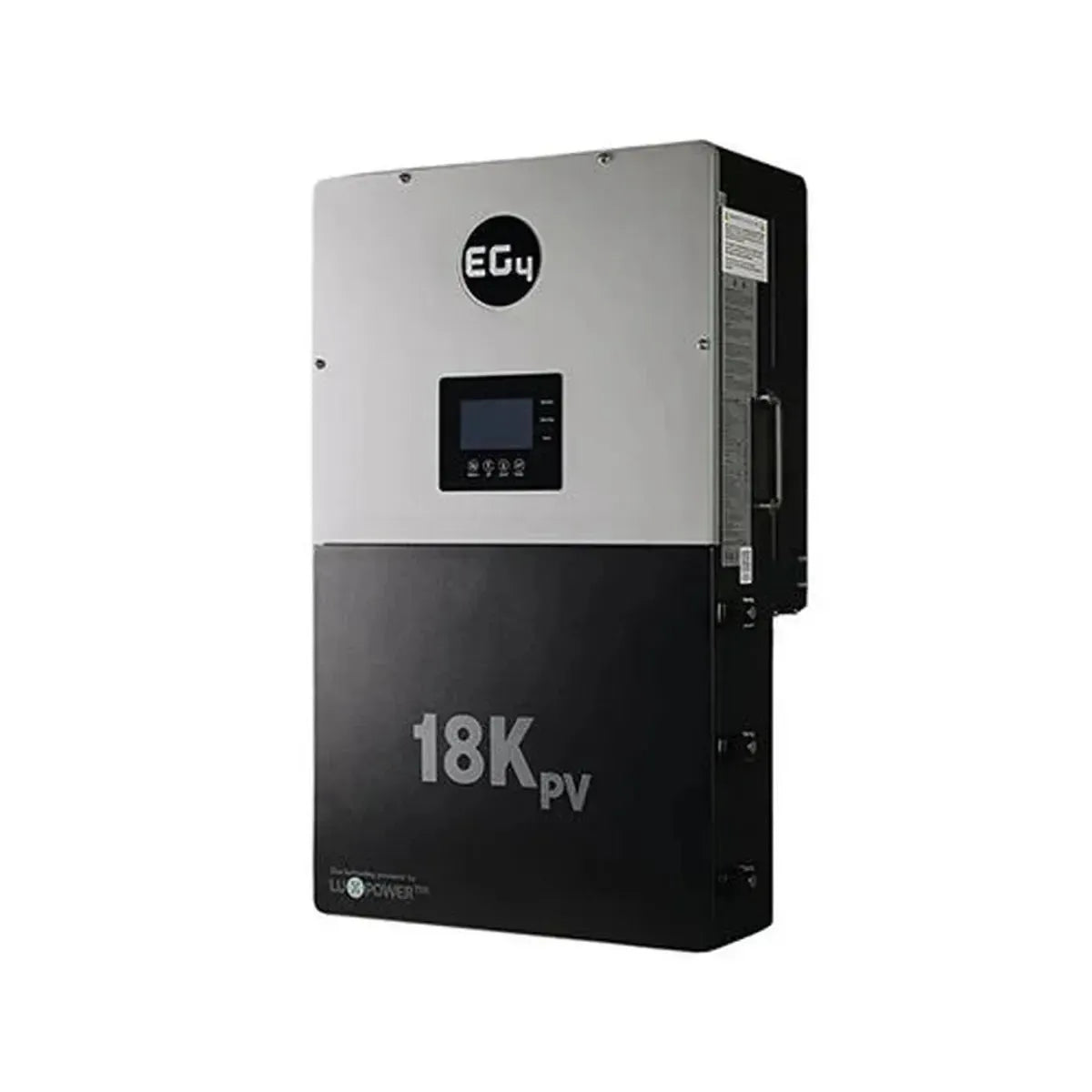

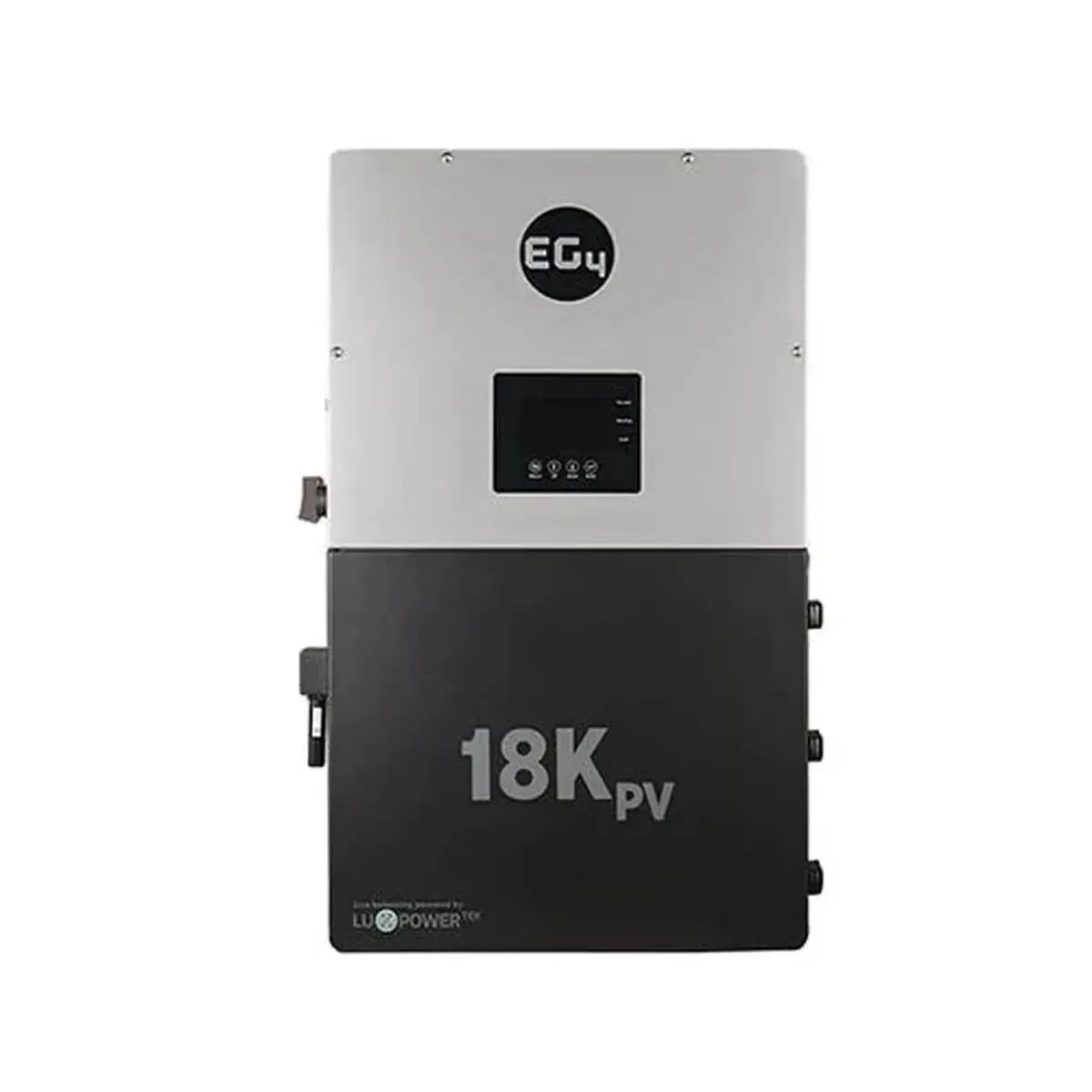

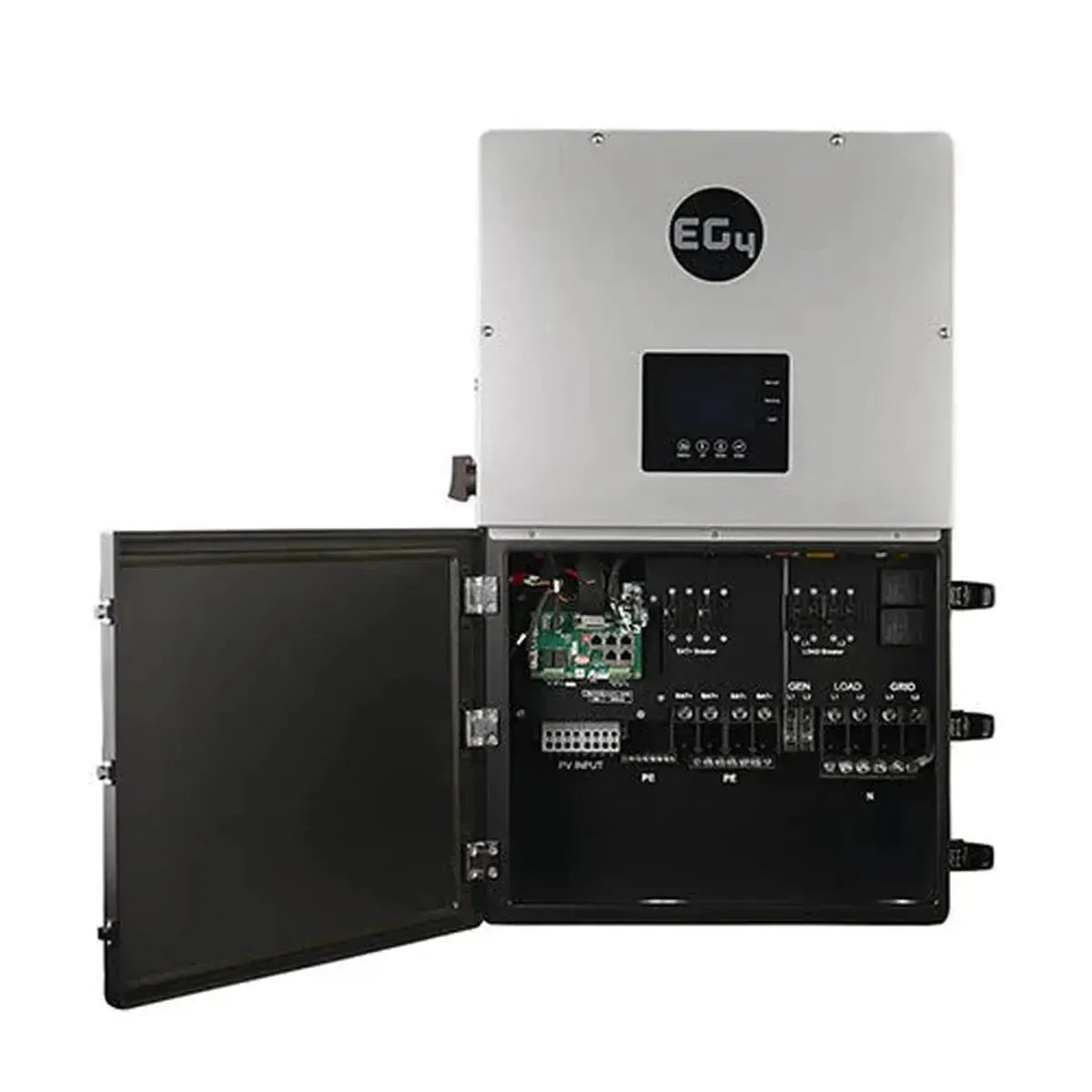

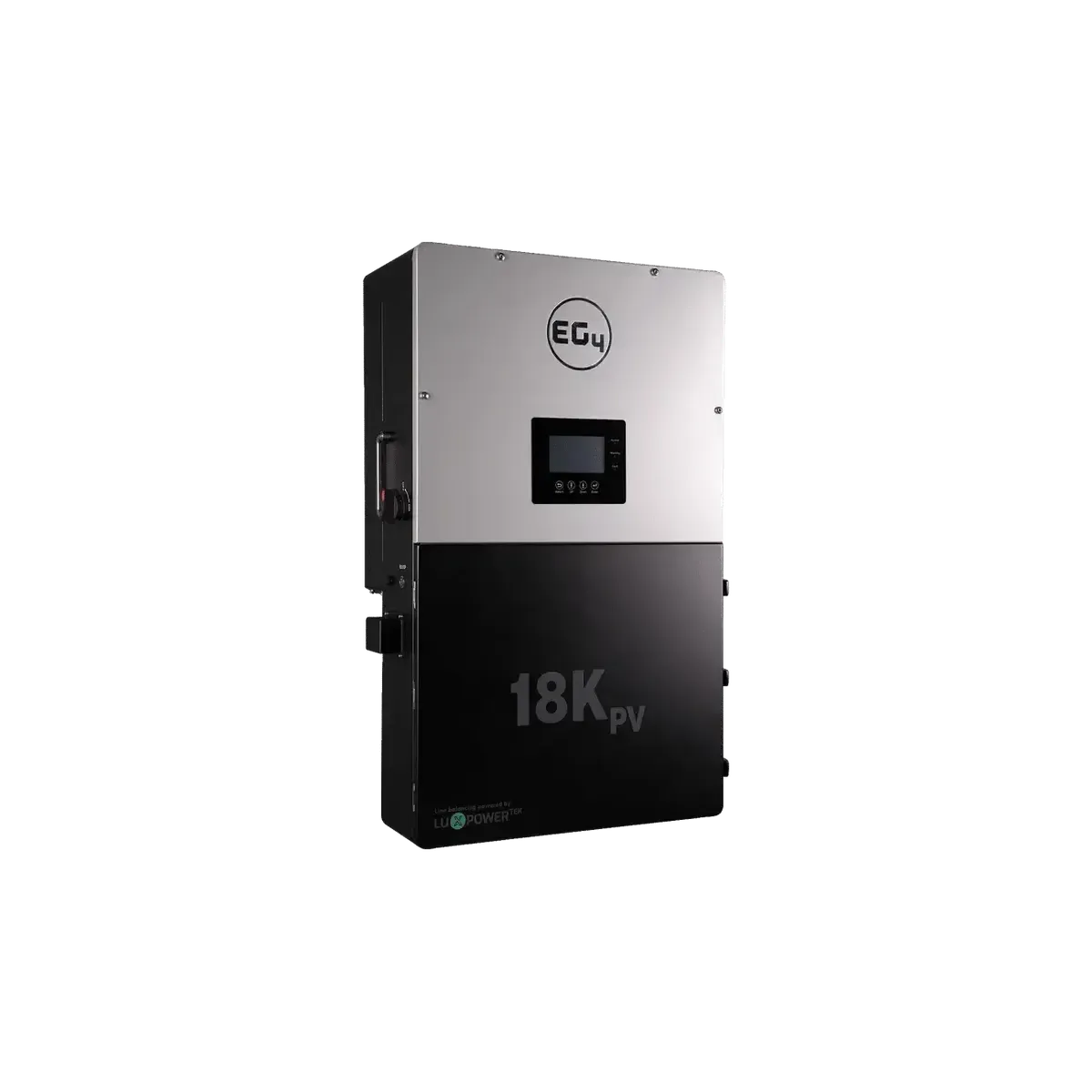

EG4 12kW (18kPV) Hybrid Inverter INV024

EG4 12kW (18kPV) Hybrid Inverter INV024

SKU INV024
$4,799.97

Notify me when back in stock

Find a better price somewhere else?

Well... we will BEAT their price to get you the lowest pricing, we will find and SPEAK with a local installer, AND you get our post-purchase customer support.

Call/Text Us: 1-888-855-7286
Live Chat With an Expert

  • US Based Authorized DuroMax Dealer

    Full manufacturer warranty included

  • 4-5 Day Free Shipping + No Sales Tax

    More savings on every purchase and ships in 4-5 business day

  • Easy 30-Day Returns & Price Beat Guarantee

    Risk-free shopping + best price guaranteed

  • Post-Purchase Customer Support

    Dedicated help whenever you need it


ESTIMATED DELIVERY BETWEEN

Order within to get it by the earliest date.


EG4 18kPV Hybrid Inverter | EG4-18kPV-12LV | 48V Split Phase 120/240VAC | UL1741, CEC

Meet the EG4 18kPV All-In-One Hybrid Inverter – the ultimate power solution for your solar needs!

This advanced hybrid inverter seamlessly integrates both grid-tied and off-grid functionality, eliminating the need for additional charge controllers or transformers. Designed for versatility and independence, it meets key electrical regulations with a robust set of certifications and compliance standards.

With the ability to simultaneously utilize solar energy, battery storage, and grid power, the EG4 18kPV delivers a continuous output of up to 12,000W, ensuring reliable energy for homes, RVs, and various solar projects. In the event of a power outage, it also functions as a backup power source—even without solar input.

 

Featuring remote monitoring, an enhanced user interface, and a sleek, modern design, this inverter offers intuitive operation via an LCD display with customizable settings, including battery charging current, AC/solar charger priority, and adjustable input voltage for different applications.

Thanks to its easy plug-and-play installation, extensive certifications, and efficient power management, the EG4 18kPV All-In-One Hybrid Inverter is the ideal choice for any solar power system. Experience seamless energy integration and unparalleled reliability with the EG4 18kPV!


EG4 18kPV Hybrid Inverter | EG4-18kPV-12LV | 48V Split Phase 120/240VAC | UL1741, CEC

EG4 18kPV-12LV Hybrid Inverter Specs

  • AC Output: 12kW continuous
  • PV Input: 18kW PV
  • Number of MPPTs: 3 (600VDC max input each)
  • Parallel: Up to 10 units for a combined 120kW outpu
  • DC Input Voltage Range: 100–600 VDC
  • Dimensions: 34.3×20.5×11.2 in
  • Weight: 121.25 lbs


EG4 18kPV-12LV Hybrid Inverter Features

All-In-One Hybrid Inverter: Capable of running entirely off the grid, using grid electricity, or selling power back to the grid

  • 18,000W PV input, 12,000W continuous output
  • Stackable - Parallel multiple units together
  • Closed loop communication with EG4 batteries
  • Overload, short circuit & over temperature protection
  • Line Balancing

Dual Functionality: Utilize both grid-tie and off-grid modes simultaneously

  • Simple plug-and-play install and inverter management
  • Manages power from energy storage systems, and grid simultaneously
  • 120/240V split phase
  • Fully outdoor rated
  • Remotely Monitor & View Your System
  • View solar yield, battery charging/discharging rate & import consumption

High Frequency, Split-Phase Output: Allows for 120/240V single unit or 120/208 service operation

  • Displays live energy data, battery charge and discharge limitations, and battery warning or fault.
  • View the power curve from each day
  • Displays key parameters over a 24-hour period
  • Get historical data about your system for analysis and maintenance
  • Update firmware remotely anywhere at anytime


Your Satisfaction with EG4 is Guaranteed:

  • 10-Year Limited Warranty
  • Lowest Price Guarantee



Tech Specs
SKU: INV024

AC INPUT
AC Voltage: 120V AC / 240V AC
AC Frequency: 50 Hz / 60 Hz
Max. Continuous AC Current: 50A @ 240V AC
Max. AC Input Power: 12000W
Max. AC Bypass: 200A

AC GRID OUTPUT
Operating Voltage Range: 180 - 270V AC
Output Voltage: 120V AC / 240V AC
Max. Continuous Output Current: 50A
Output Frequency: 50 Hz / 60 Hz
Output Power: 12000W
Surge Capacity (with PV): 14700W (10 min) / 15500W (5 min)
Surge Capacity (without PV): 13500W (10 min)
Max. Continuous Line Wattage: 6000W
Power Factor: 0.99 (Full Load)
Reactive Power Adjustment Range: -0.8 ~ 0.8 Leading Adjustable
Total Harmonic Distortion: <5% (Full Load)
Transfer Time: 10 - 20 ms (Single) / 20 ms (Parallel)

AC BACKUP / UPS OUTPUT
Max. Continuous Output Current: 50A
AC Bypass (Generator): 90A
Output Voltage: 120V AC / 240V AC
Output Power: 12000W
Max. Continuous Line Wattage: 8000W (per 120V)
Operating Voltage Range: 180 - 270V AC
Output Frequency: 50 Hz / 60 Hz
Max. Output Power (with PV): 14700W (10 min) / 15500W (5 min)
Max. Output Power (without PV): 13500W (10 min)
Total Harmonic Distortion Voltage: <5%
Switching Time: 10 ms

PV INPUT
No. of MPPTs: 3
Inputs per MPPT: 2 (MPPT 1) / 1 (MPPT 2 & 3)
Max. Input Current: 25A (MPPT 1) / 15A (MPPT 2 & 3)
Max. Short Circuit Input Current: 31A (MPPT 1) / 19A (MPPT 2 & 3)
DC Input Voltage Range: 100 - 600V DC
Start Up Voltage: 100V DC
MPPT Operating Voltage Range: 140 - 500V DC
MPPT Voltage: 360V DC
Max. PV Array Power: 18000W
Max. Efficiency: 94 - 99.9%
Idle Consumption: ~70W (Normal) / ~18W (Standby Mode)

BATTERY
Nominal Voltage: 48V DC
Voltage Range: 40 - 60V DC
Max. Charge / Discharge Current: 250A
Recc. Battery Capacity per Inverter: >200 Ah

OPERATING ENVIRONMENT
Operating / Storage Temperature Range: -13ºF - 140ºF (-25ºC - 60ºC)
Altitude: <6,561 ft (2000 m)
Relative Humidity: 0 - 100%
Typical Noise Emission: 68 dB @ 3 ft
Protection Rating: IP65 / NEMA 4X
Communications: RS485 / CANBus / WiFi
Max. Parallel Connections: 10

DIMENSIONS
Weight: 121 lbs (55 kg)
Depth: 11.2 in (285 mm)
Width: 20.5 in (520 mm)
Height: 34.3 in (871 mm)
Spec Sheet: Click Here
User Manual: Click Here
Rapid Shut Down Wiring Guide: Click Here
UL1741 Certificate: Click Here
