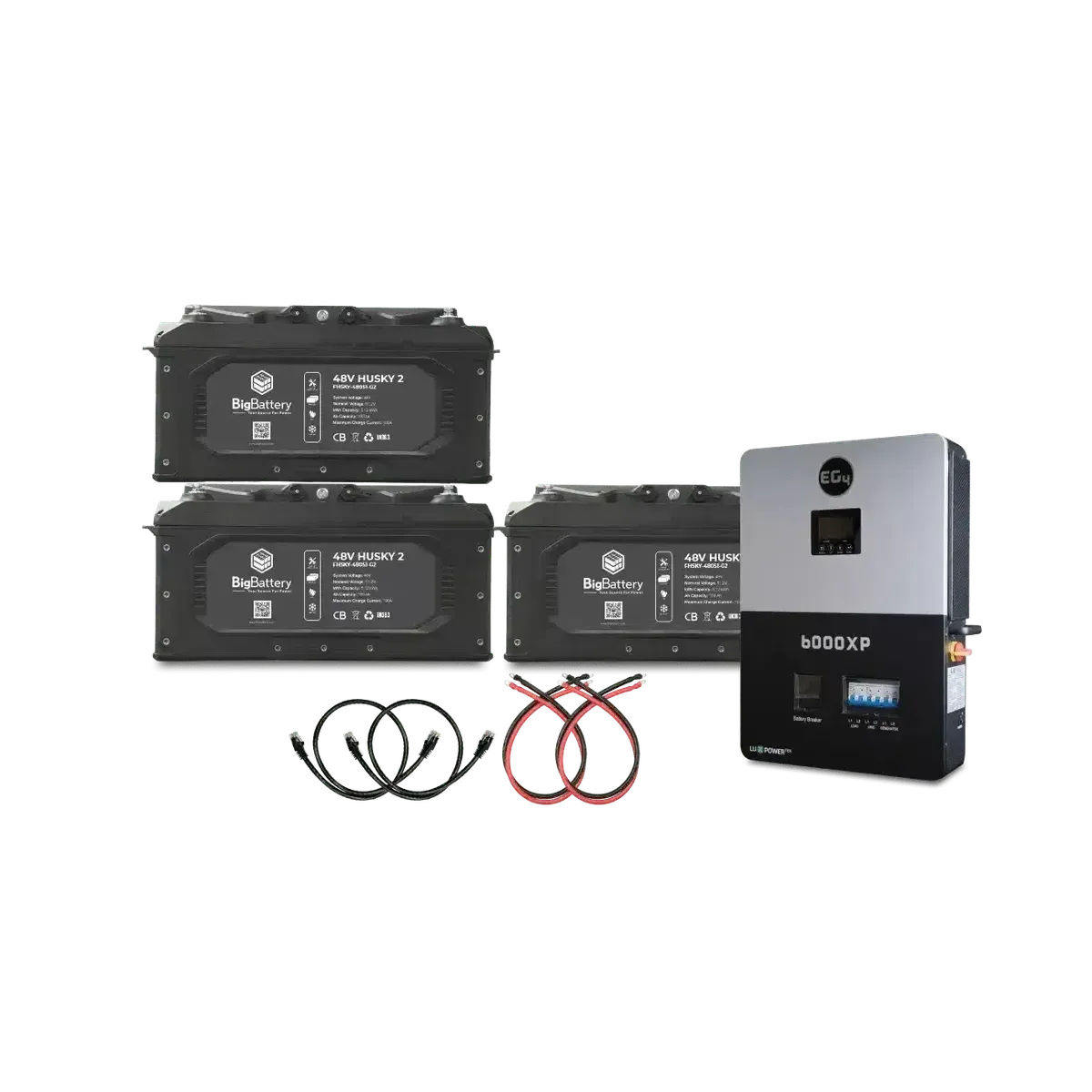

48V 3X HUSKY 2 KIT – EG4 6K OFF-GRID INVERTER

48V 3X HUSKY 2 KIT – EG4 6K OFF-GRID INVERTER

SKU
Save $590.00
$7,890.00
$7,300.00

Notify me when back in stock

Find a better price somewhere else?

Well... we will BEAT their price to get you the lowest pricing, we will find and SPEAK with a local installer, AND you get our post-purchase customer support.

Call/Text Us: 1-888-855-7286
Live Chat With an Expert

  • US Based Authorized DuroMax Dealer

    Full manufacturer warranty included

  • 4-5 Day Free Shipping + No Sales Tax

    More savings on every purchase and ships in 4-5 business day

  • Easy 30-Day Returns & Price Beat Guarantee

    Risk-free shopping + best price guaranteed

  • Post-Purchase Customer Support

    Dedicated help whenever you need it


ESTIMATED DELIVERY BETWEEN

Order within to get it by the earliest date.

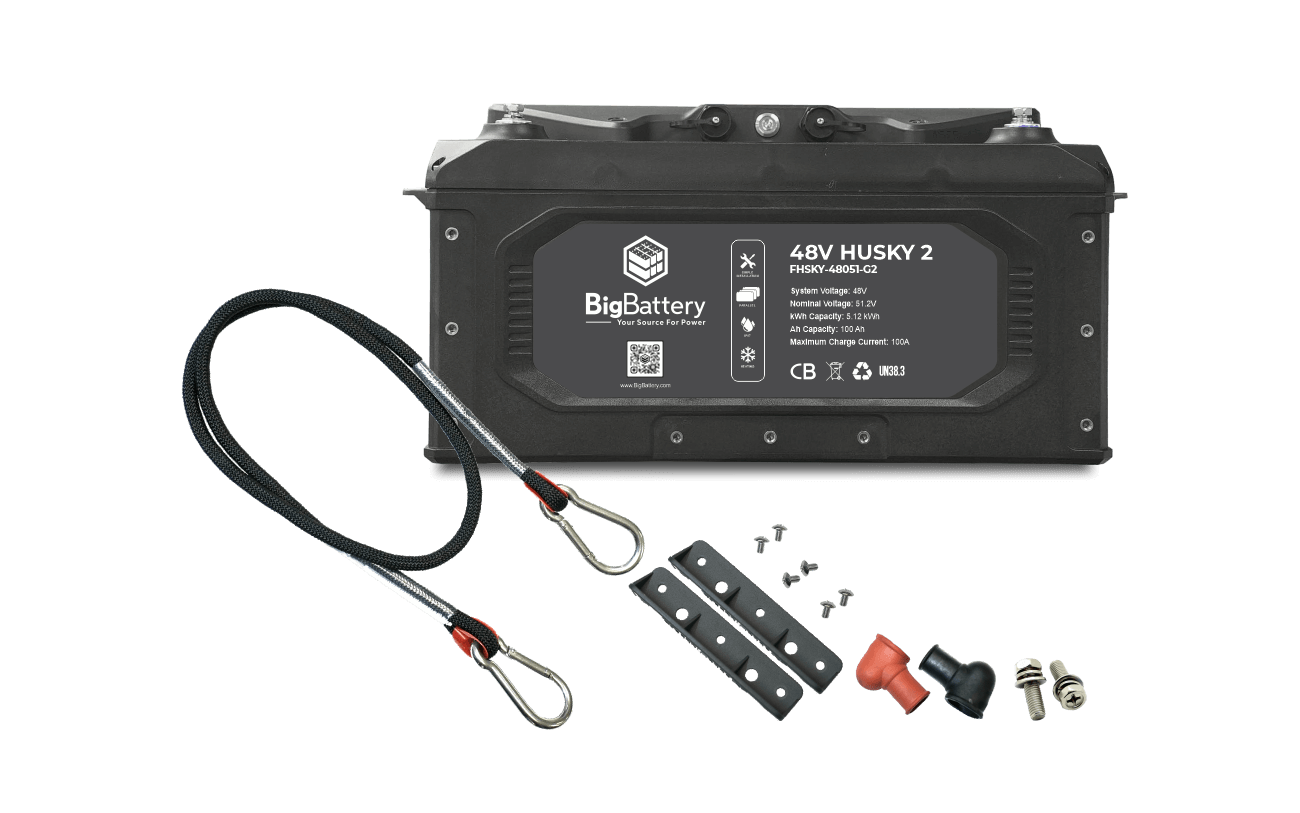

Single Battery Tech Specs
SKU: FHSKY-48051-G2
System Voltage: 48V
Nominal Voltage: 51.2V
Chemistry: LiFePO4
kWh Capacity: 5.12kWh
Ah Capacity: 100Ah
Charging Voltage Range: 55.6 – 57V
Max Charge Voltage: 58.8V
Operating Voltage Range: 48 – 57V
Suggested Low Voltage Cutoff: 48 – 50.8V
BMS Cutoff Range: 42 – 47V
Cell Configuration: 16S
Max Continuous Discharge Current: 150A
Recommended Continuous Discharge Current: 100A
Max Continuous Power: 7500W
Recommended Continuous Power: 4000W
Max Discharge Peak Current: 225A (Max 5 seconds)
Max Charge Current: 100A
Charge Temperature Range: -4°F – 113°F (-20°C – 45°C)
Discharge Temperature Range: -4°F – 122°F (-20°C – 50°C)
Optimal Discharge Temperature Range: 59°F – 95°F (15°C – 35°C)
Storage Temperature Range: -4°F – 122°F (-20°C – 50°C) (Max 6 months)
Weight: 100 lb (45.4 kg)
Depth: 12.6 in (320 mm)
Width: 18.1 in (460 mm)
Height: 9.8 in (249 mm)
Max Connections: Up to (16) Parallel
Protection Rating: IP65 / NEMA 4X
Communications: CANBus / RS485 (Parallel only)
Self-Heating: Yes
Spec Sheet: Spec Sheet
User Manual: User Manual
Safety Data Sheet: Safety Data Sheet
CE Certificate: CE Certificate
UN38.3 Certificate: UN38.3 Certificate

Inverter Specs

AC INPUT & OUTPUT
AC Voltage: 120V AC / 240V AC
AC Frequency: 50 Hz / 60 Hz
Max. Continuous AC Current: 37.5A @ 240V
Max. AC Input Power: 9000W
AC Bypass: 50A
Output Voltage: 120V AC / 240V AC
Output Frequency: 50 Hz / 60 Hz
Max. Continuous Output Current: 25A @ 240V
Output Power: 6000W
Surge Capacity: 12000W (3.5 sec) / 11000W (5 sec)
Power Factor: 0.99 (Full Load)
Reactive Power Adjustment Range: -0.8 – 0.8 Leading Adjustable
Total Harmonic Distortion: <3%
Switching Time: <15 ms (Single) / <30 ms (Parallel)

PV INPUT
No. of MPPTs (Inputs per MPPT): 2 (1)
Max. Input Current: 17A / 17A
Max. Short Circuit Input Current: 25A / 25A
DC Input Voltage Range: 100 – 480V DC
Start Up Voltage: 100V DC ± 10V DC
MPPT Operating Voltage Range: 120 – 385V DC
MPPT Voltage: 320V DC
Max. PV Array Power: 8000W (4000W per MPPT)
MPPT Efficiency: 99%

BATTERY
Nominal Voltage: 48V DC
Battery Voltage Range: 46.4 – 60V DC
Max. Discharge Current: 140A
Max. Charge Current: 125A
DC Cut-Off Voltage: 59V DC
DC Recovery Voltage: 57.4V DC
Charge Cut-Off Voltage: 58.4V DC

OPERATING ENVIRONMENT & DIMENSIONS
Operating Temperature: 32ºF – 113ºF (0ºC – 45ºC)
Storage Temperature: 5ºF – 140ºF (-15ºC – 60ºC)
Altitude: <6,561 ft (2000 m)
Relative Humidity: 5 – 95%
Typical Noise Emission: <58 dB
Protection Rating: IP20
Max. Parallel Connections: 16
Weight: 52.9 lbs (24 kg)
Depth: 5.25 in (132 mm)
Width: 18 in (457 mm)
Height: 25.5 in (648 mm)
Spec Sheet: Spec Sheet
User Manual: User Manual
Monitoring System Guide: Monitoring System Guide
Monitoring Adapter Installation Guide: Monitoring Adapter Installation Guide
UL1741 Certificate: UL1741 Certificate
Warranty: Warranty

Designed For 48V Applications

  • LEAD ACID REPLACEMENT
  • OFF-GRID SYSTEMS
  • EMERGENCY BACKUP
  • CLASS A, B, & C RVs
  • CAMPER VANS
  • FOOD TRUCKS
  • COMMERCIAL VEHICLES
  • MOBILE POWER SETUPS
