2 x Victron MultiPlus-II 48V 10,000W Inverter [EU Model]/Charger 20kW of overall output power | 2 x ETHOS 48V 30.8KWH Stackable Battery (6 Modules) | 48 x 410W Rigid Solar Panels

2 x Victron MultiPlus-II 48V 10,000W Inverter [EU Model]/Charger 20kW of overall output power | 2 x ETHOS 48V 30.8KWH Stackable Battery (6 Modules) | 48 x 410W Rigid Solar Panels

SKU 2XVICMP10K-2XETHOS3-48X410WRSP
Save $3,222.25
$37,111.25
$33,889.00

Notify me when back in stock

Find a better price somewhere else?

Well... we will BEAT their price to get you the lowest pricing, we will find and SPEAK with a local installer, AND you get our post-purchase customer support.

Call/Text Us: 1-888-855-7286
Live Chat With an Expert

  • US Based Authorized DuroMax Dealer

    Full manufacturer warranty included

  • 4-5 Day Free Shipping + No Sales Tax

    More savings on every purchase and ships in 4-5 business day

  • Easy 30-Day Returns & Price Beat Guarantee

    Risk-free shopping + best price guaranteed

  • Post-Purchase Customer Support

    Dedicated help whenever you need it


ESTIMATED DELIVERY BETWEEN

Order within to get it by the earliest date.


We've considered every aspect of this complete hybrid solar kit, so you can sit back and enjoy a hassle-free experience.

Discover the ultimate solution for achieving complete power independence and long-term reliability with this solar kit. This meticulously crafted solar power system offers exceptional quality at an affordable price, empowering you to take control of your own power generation and storage. Whether your goal is to go entirely off-grid, stay connected to the grid, or enjoy a combination of both, the kit stands as the most comprehensive solar power system available today.

What's Included With Your Order?

  • Ships from the US!

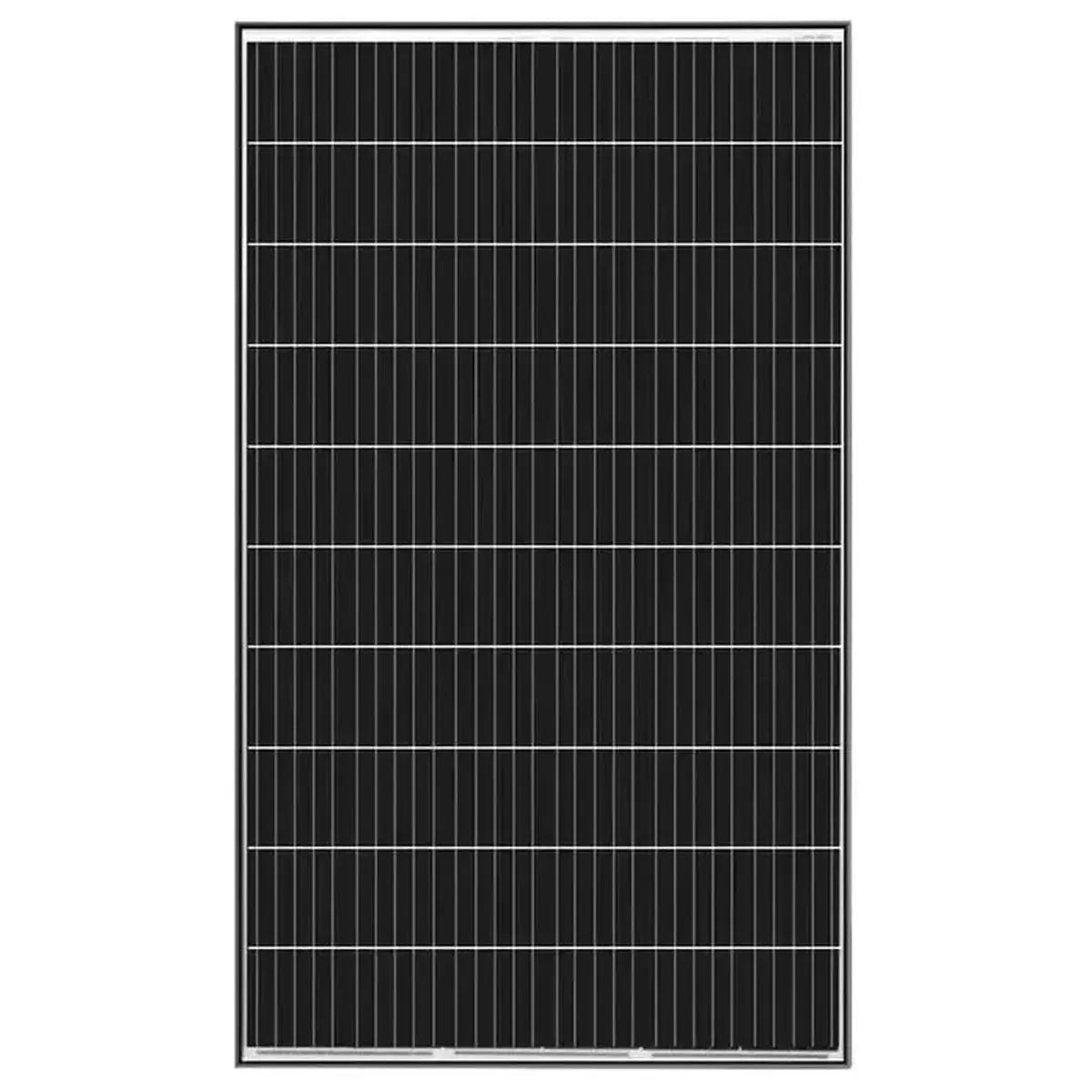

  • 48 x 410W Monocrystalline Solar Panels (19,200 Watts) - 12-Year Power Output Warranty
  • 2 x Victron MultiPlus-II 48/10000/140-100 230V

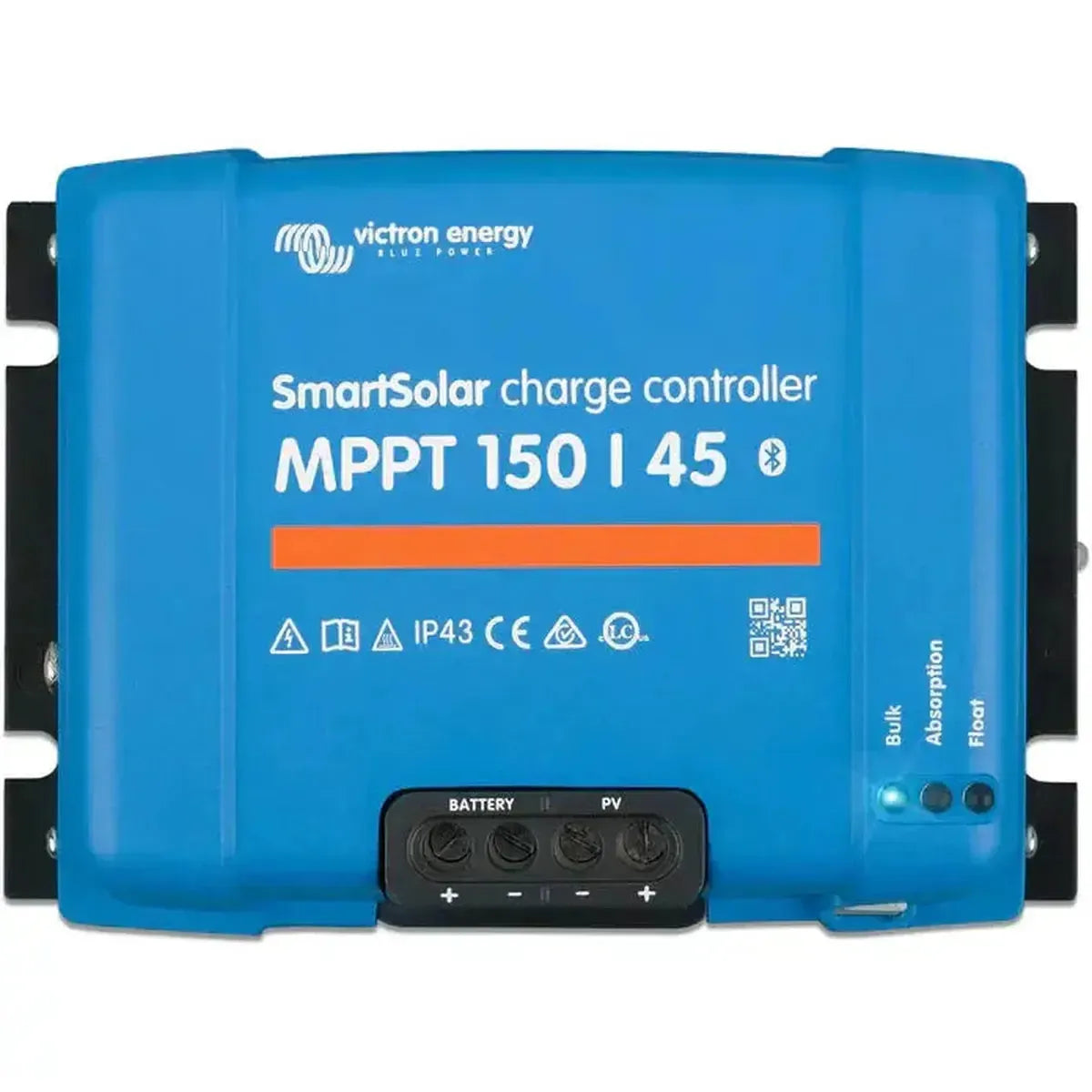

  • 2 x Victron SmartSolar Charge Controller MPPT 150/45
  • 2 x 48V ETHOS 15.4KWH Stackable Battery (10 Years Warranty)

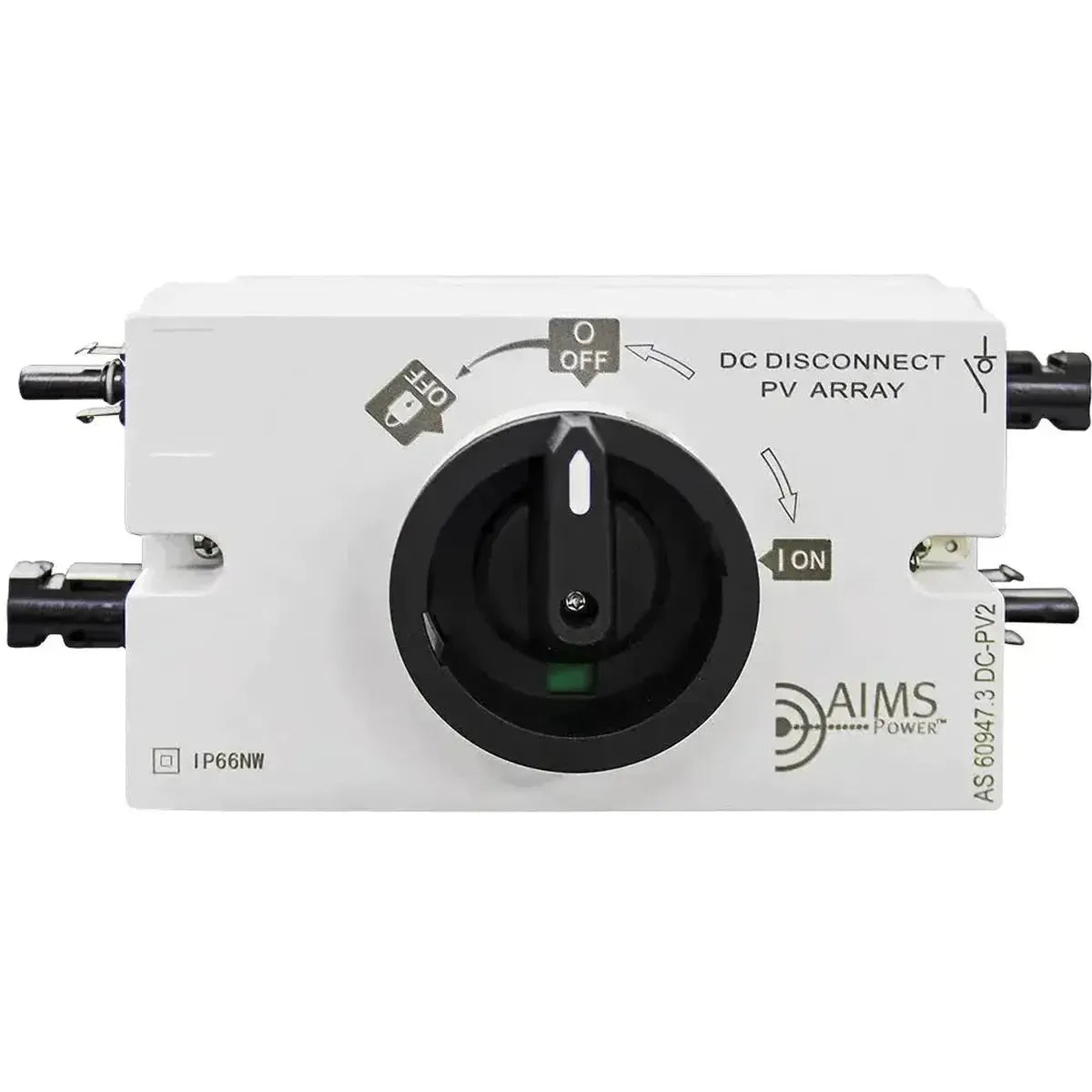

  • 4 x DC Disconnect Switch
  • 6 x PV Inline Fuse Kit
  • 6 x 8AWG Solar Extension Cables PV, approx. 10ft, SET
  • 6 x 8AWG Solar Extension Cables PV, approx. 100ft, SET
  • 4 x 4/0AWG Inverter Cable, approx. 3ft, SET
  • 1 x 4/0AWG Parallel Cable, approx. 1ft, SET
  • 2 x 1/0AWG SB175 Cable Anderson-Lugs, approx. 3ft, Assy
  • 4 x 600Amps, 4 stud Bus Bar (Black)
  • FREE SHIPPING

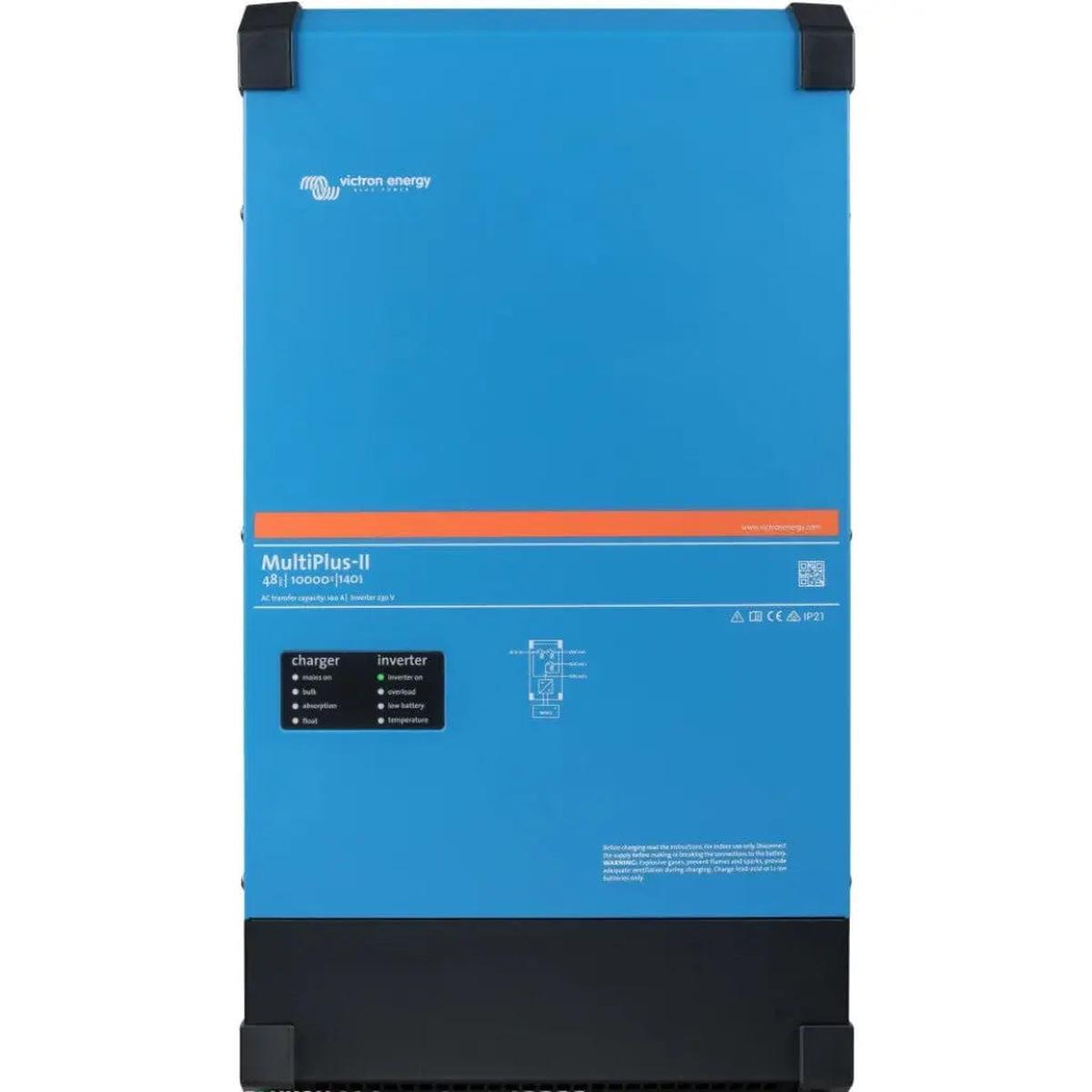

Victron MultiPlus-II Specs

Specification

Value
Input voltage range 38-66 VDC
Output voltage 230VAC ±2%
Output frequency 50 Hz or 60 Hz
Continuous output power 10000 W
Peak power 18000 W
Battery voltage 48 VDC
Charger current up to 140 A
Dimensions (H x W x D) 362 x 258 x 218 mm
Weight 21.8 kg

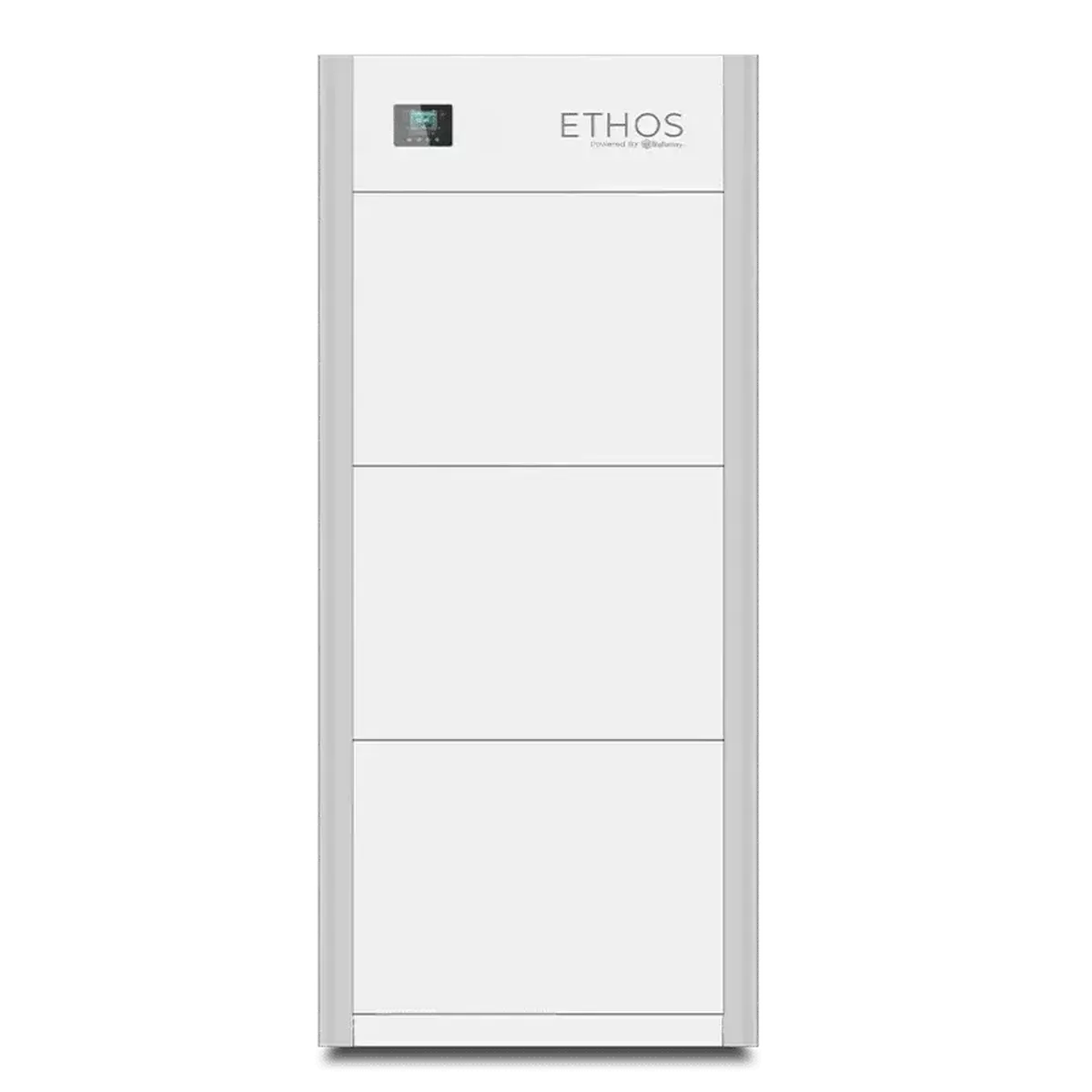

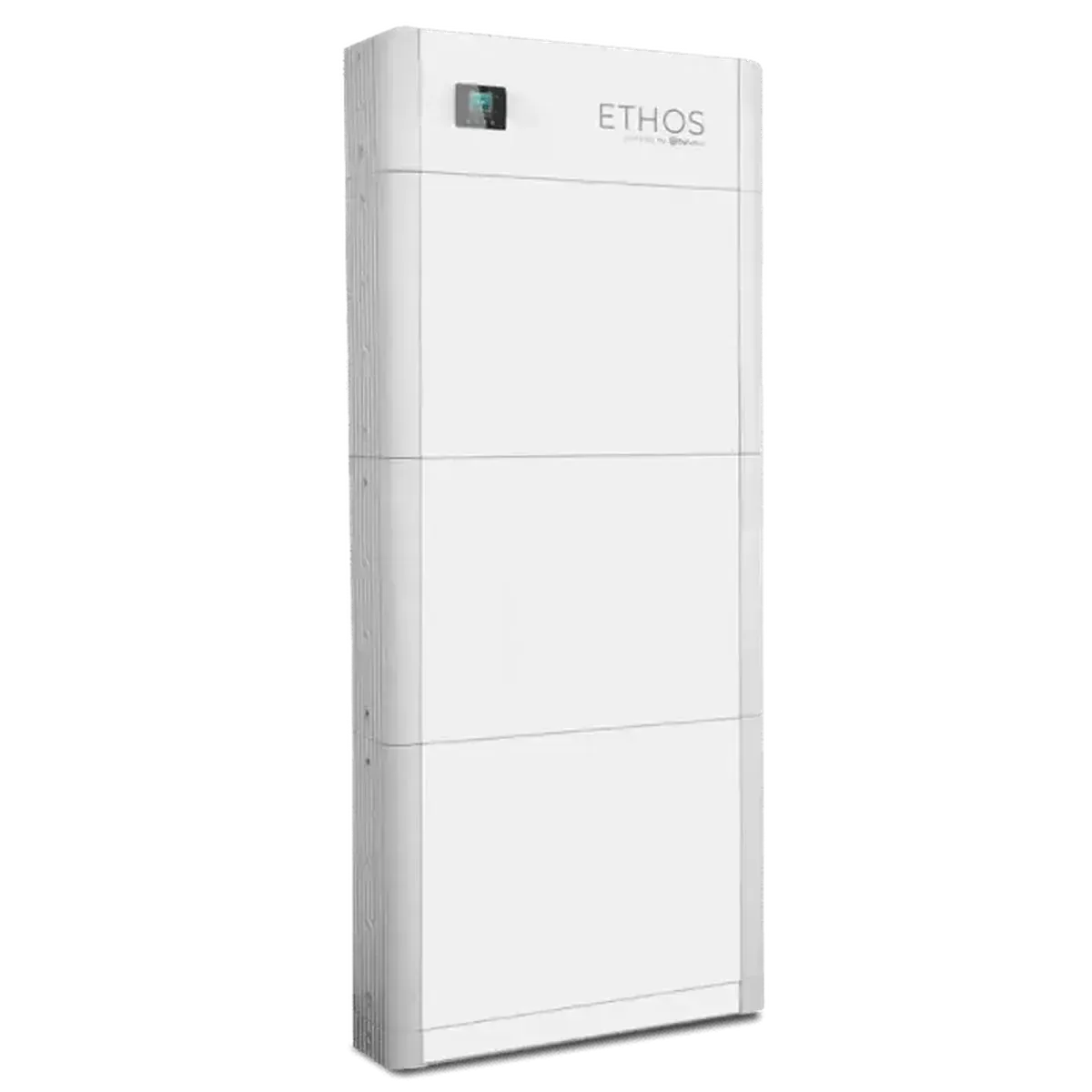

Battery Bank Specs

Lithium Battery Bank

ETHOS 15.4kWh
System Voltage 48V
Nominal Voltage 51.2V
Chemistry LiFePO4
kWh Capacity 15.36kWh
Ah Capacity 300Ah
Charging Voltage Range 55.6 - 57V
Max Charge Voltage 57V
Operating Voltage Range 48 – 57V
Suggested Low Voltage Cutoff 48 – 50.8V
BMS Cutoff Range 42 - 47V
Cell Configuration 16S 3P
Max Continuous Discharge Current 200A
Max Continuous Power 10240W
Max Discharge Peak Current 300A (Max 5 seconds)
Max Charge Current 200A
Charge Temperature Range 32°F - 113°F (0°C - 45°C)
Discharge Temperature Range -4°F - 140°F (-20°C - 60°C)
Optimal Discharge Temperature Range 59°F - 95°F (15°C - 35°C)
Storage Temperature Range (SoC >50%) -4°F - 113°F (-20°C - 45°C) (Max 6 months)
Weight 387 lb (175.5 kg)
Depth 6.7 in (170 mm)
Width 26.5 in (674 mm)
Height 59.8 in (1520 mm)
Max Connections Up to (16) parallel connections per control box
Protection Rating IP65
Communications CANBus / RS485
Certifications UL9540, UL9540a, UL1973, UN38.3, & CE

Warranty & Guarantee:

  • Made in the USA
  • 10-Year Warranty!
  • Lifetime Customer Support (Phone, Live Chat Or Email)


Shipping is FREE on all orders to customers within the 48 Contiguous States and the District of Columbia. We do not ship to Alaska, Hawaii, or any outlying islands and territories.

Processing time for orders is 1 business day

Shipping time for orders is 4-5 business days


Want to know more about our Returns Policy? Read more here.

Want to know more about our Shipping Policy? Read more here.
