What Does Solar Inverter Look Like? Identifying Your Hardware

Wondering what that mysterious box in your garage is? Solar inverters usually look like sleek white or grey metal cabinets mounted on the wall, often with a digital screen. However, some are hidden tiny black boxes on your roof!

Read on to identify exactly what does solar inverter look like.

Disclaimer: This guide describes the visual appearance of solar equipment. Never attempt to open the casing of a solar inverter. The components inside carry high-voltage electricity even when the power is off.

Form Factors: From Wall Boxes to Micro-Devices

If you are hunting for your solar inverter, you are likely looking for one of two very different shapes.

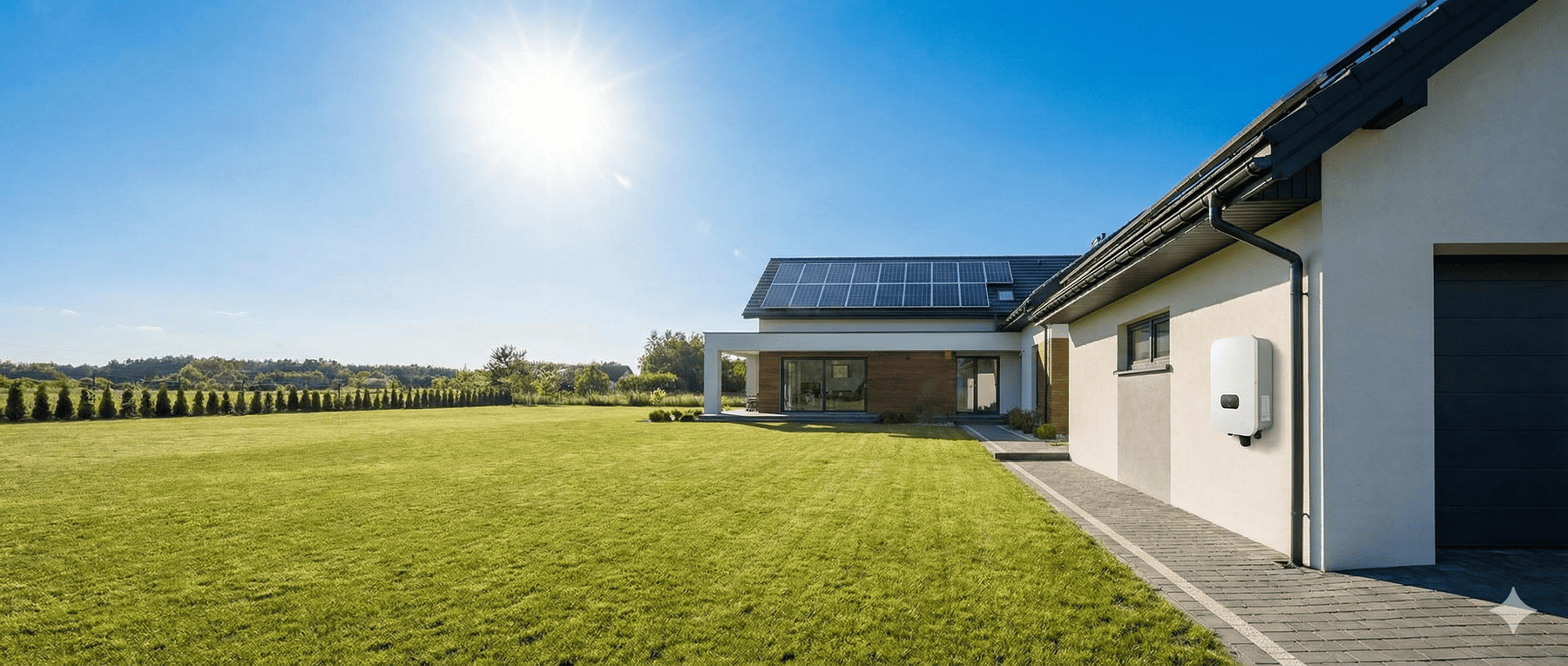

The "String" Inverter (Wall-Mounted) This is the most common type you will spot in the wild. It looks like a heavy-duty computer tower or a small electrical cabinet mounted vertically on a wall.

• Size: Roughly the size of a microwave or a large hiking backpack.

• Color: Usually white, grey, or red (if you bought a Fronius).

• Location: You will find it in the garage, on a shaded exterior wall, or hanging out near your main electrical meter.

The Microinverter (Roof-Mounted) If you can't find a box on the wall, you might have microinverters. These are the ninjas of the solar world—invisible from the ground.

• Size: About the size of a hardback book or a sturdy tablet.

• Color: Black and rugged to hide in the shadows.

• Location: These are bolted directly to the metal racking underneath each solar panel on your roof.

Anatomy of a Solar Inverter: Key Visible Features

Let’s focus on the wall-mounted units, as they are the ones you actually interact with. While every brand (SMA, SolarEdge, Tesla) has a different style, they all share the same basic anatomy.

The Digital Interface and LED Status Indicators

The front panel is the "face" of the inverter.

Older models usually feature a small rectangular LCD screen. It looks a bit like a calculator display, endlessly cycling through numbers like "Power: 3000W" or "E-Total."

Newer models are increasingly going screenless to look cleaner. Instead, they rely on a simple LED light strip or a glowing logo.

• Green Light: Everything is working perfectly.

• Red Light: System failure.

• Blue/WiFi Light: It's connected to the internet and talking to your phone.

If your unit has no screen, don't panic. It just means the manufacturer expects you to check the data on your smartphone app instead.

Input/Output Ports: MC4 Connectors and Conduit Knockouts

If you look at the bottom of the inverter, you will see where the magic happens. This is the "business end" of the device.

You will see several thick black wires plugging into the unit. These often end in MC4 Connectors, which are distinctive black plastic clips that snap together. This is where the raw DC power enters from the roof.

Next to them, you will see rigid pipes (usually grey PVC or metal) entering the box through holes called knockouts. These pipes carry the converted AC power safely to your home's breaker panel.

External Heat Sinks and Cooling Fins

Have you ever looked at the engine of a motorcycle? You know those metal ridges designed to catch the wind? Your inverter often has them too.

Inverters generate heat while converting electricity. To cool down, many use a passive cooling system called a Heat Sink.

This looks like a large, ribbed metal grate, usually located on the back or top of the unit. These aluminum fins increase the surface area, allowing heat to escape into the air without needing noisy fans.

Inside the Box: A Glimpse at the Circuitry and Transformers

You should never open the box, but it helps to know what is in there. It isn't just magic; it's heavy-duty engineering.

If you were to X-ray the device, you would see a mix of brains and brawn:

1. Printed Circuit Boards (PCBs): Green computer boards that act as the "brain," managing the software and WiFi.

2. Capacitors: Large cylindrical components that look like batteries. They store and smooth out the electrical energy.

3. Transformers: Heavy copper coils. These are responsible for changing the voltage to match your home's grid.

This combination of heavy copper and delicate electronics is why these units are so deceptive. They look like plastic boxes, but they often weigh between 30 to 50 pounds!
