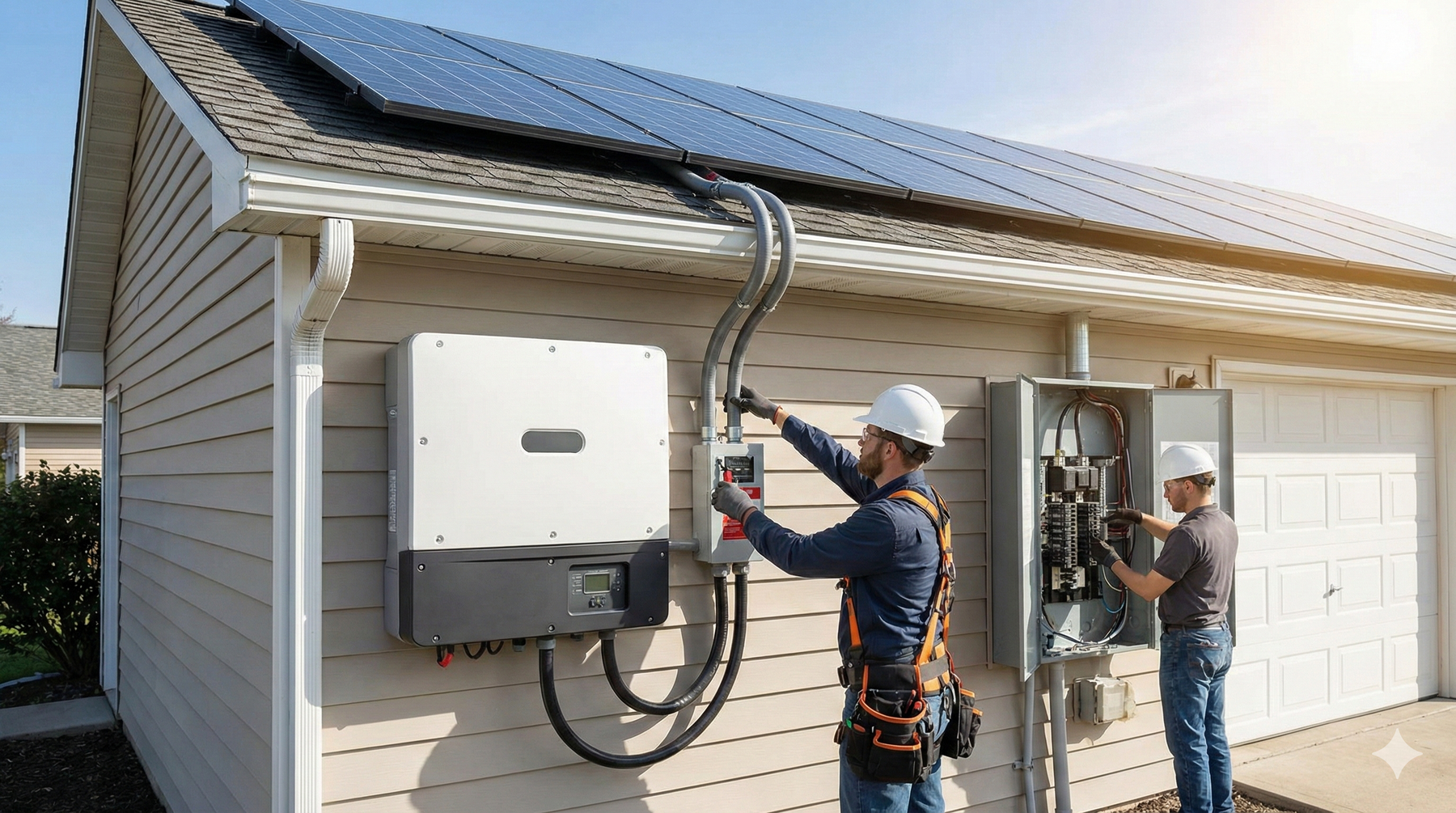

How to Install Solar Inverter: A DIY Walkthrough

Disclaimer: This guide is for educational purposes only. Electrical work is dangerous and can be fatal if done incorrectly. Always check your local building codes, obtain necessary permits, and ensure you are compliant with all regulations. We strongly recommend consulting with a licensed electrician or solar professional before attempting any installation. Don't risk your life or your home's insurance policy to save a few bucks.

Ready to be your own power plant manager? Installing solar inverters involves four key steps: mount the unit, connect the panels (DC), wire the grid (AC), and test. It’s rewarding but risky—one wrong wire means sparks!

Read on to do it safely without frying your eyebrows.

Preparation: Tools and Safety Gear Needed for Installation

Before you even think about touching a wire, you need to channel your inner Boy Scout. "Be Prepared" isn't just a motto here; it is the difference between a successful install and a trip to the emergency room.

Installing an inverter is a weird mix of heavy lifting and delicate electrical surgery. You really don't want to be the guy balancing a 50-pound metal box on a ladder while realizing you left the screwdriver on the kitchen table.

The Essential Toolkit:

• Impact Driver & Drill: You will be driving big lag bolts into wooden studs. Your weak manual screwdriver won't cut it here.

• Digital Multimeter: This is your lifeline. You need to verify that wires are actually "dead" before you touch them.

• Wire Strippers & Crimpers: For making clean, professional connections. Teeth are not wire strippers.

• Torque Wrench: Inverters have specific tightness settings for terminal screws. Loose screws cause fires, and over-tightened ones strip threads.

Safety Gear (PPE):

• Insulated Gloves: Rubber-dipped gloves can save you from a nasty shock if you make a mistake.

• Safety Glasses: Copper wire snippets love to fly when you cut them. Protect your eyes.

• Headlamp: Electrical panels are dark corners. You need to see exactly what you are doing.

Step 1: Choosing the Optimal Mounting Location

Your inverter is the brain of your solar operation. If you put the brain in an oven, it will stop working.

Heat is the absolute enemy of electronics. If you mount your inverter on a south-facing wall in direct sunlight, it will overheat. When that happens, it "throttles" itself, producing less power right when the sun is brightest.

The Golden Rules of Placement:

1. Shade is King: The best spot is usually inside a cool garage. If it must go outside, choose a North-facing wall that stays in the shade all day.

2. Eye Level: Mount the screen at eye level (about 5 feet up). You shouldn't need to drag out a ladder just to check if your system is working.

3. Close to the Panel: Copper wire is expensive. The closer your inverter is to your main breaker panel, the less cash you spend on thick wiring runs.

4. Airflow: Never box it in. Leave at least 12 inches of clear space around the unit so it can "breathe."

Step 2: Mounting the Inverter Bracket and Unit

This is the heavy lifting part. Most string inverters weigh between 40 and 80 pounds. They are awkward, smooth metal boxes that are incredibly hard to grip.

Find the Studs Do not use drywall anchors. I repeat: Do not use drywall anchors. You must find the wooden studs or use a solid masonry wall. The mounting bracket (the metal plate that comes in the box) needs to be bolted into the structural bones of your house.

The Mounting Process:

1. Level the Bracket: Use a spirit level to ensure the bracket is perfectly straight. If the bracket is crooked, the inverter will be crooked, and it will drive you crazy every time you look at it.

2. Drive the Lags: Secure the bracket with heavy-duty lag bolts. Make sure they bite into the wood.

3. The "Hang": This is a two-person job. Grab a buddy, lift the inverter, and hook it onto the bracket. It should settle into place with a satisfying "clunk."

4. Lock it Down: Most inverters have side screws to lock the unit to the bracket. This ensures it can't be bumped off the wall by accident.

Step 3: Wiring Basics and Grounding Requirements

Now for the spicy part. This is where electricity gets involved. If you are not 100% comfortable with this, call an electrician. There is no shame in outsourcing the danger.

You have three main sets of wires to manage:

1. The Ground (Green/Bare Copper) Connect this first. Always. If a stray wire touches the metal case, the ground wire saves your life by tripping the breaker. Do not skip this step.

2. The AC Output (Grid Side) These wires go to your house's breaker panel.

• Black/Red: The "Hot" wires carrying the power.

• White: The "Neutral" wire (though some modern inverters don't use this).

• Always ensure the breaker is OFF and taped over with "Do Not Touch" tape before connecting these.

3. The DC Input (Solar Side) These come from your roof. They usually use "MC4" connectors, which are plug-and-play plastic clips.

• Warning: Even if the breaker is off, these wires are LIVE as long as the sun is shining.

• Never cut a DC wire while it is under load. It will create an arc flash (a mini lightning bolt) that can blind you or start a fire. Always turn off the DC Disconnect switch on the inverter before plugging these in.
