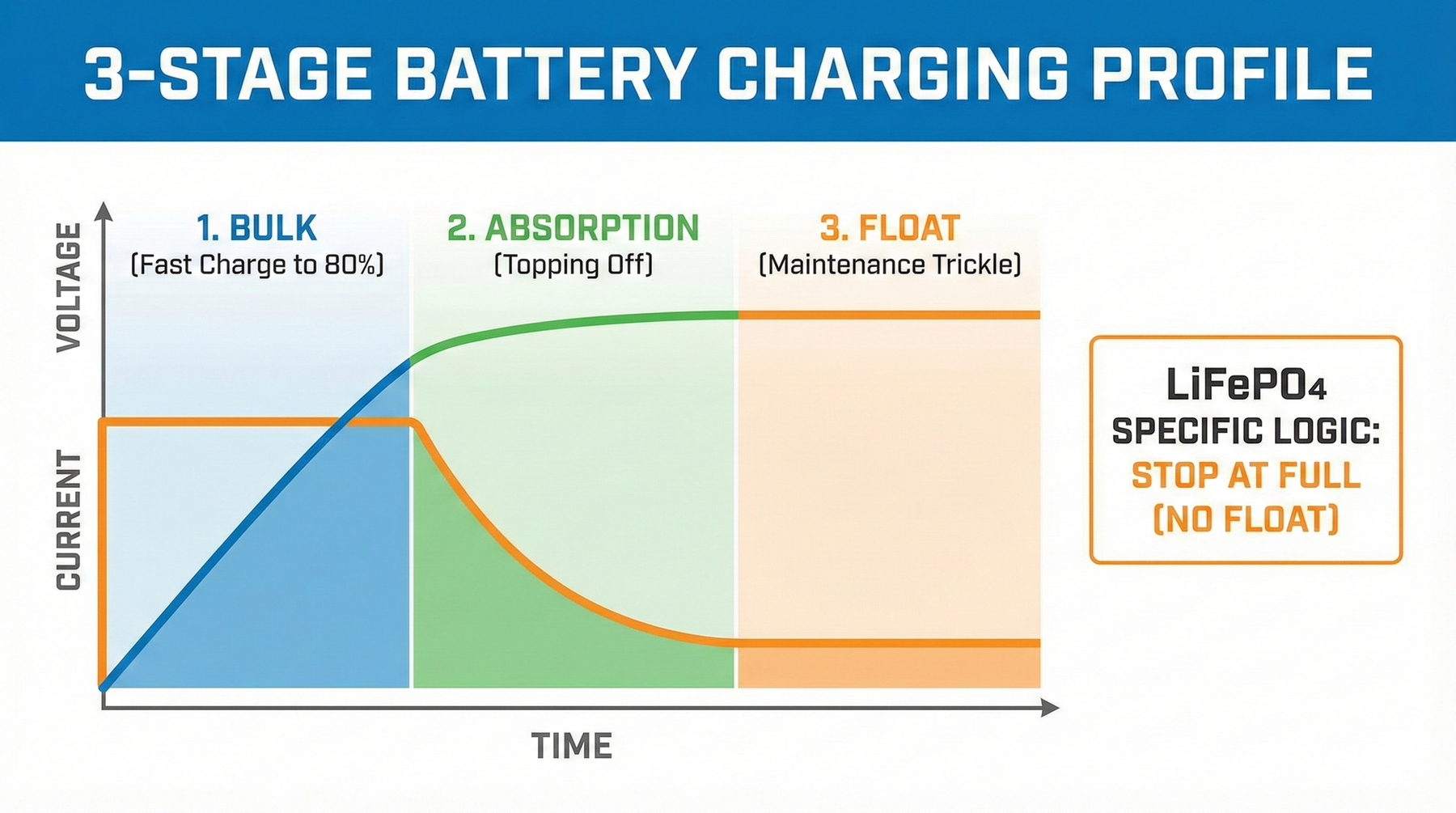

A graph displaying majority of the incoming battery powered is stored within the first 30% of charging time, while the rest of the time is "topping off" and maintenance trickle

January 3, 2026

Can Solar Inverter Charge Battery? Managing Your Energy Storage

Wondering if your solar inverter can double as a battery charger? The short answer is yes—but only if it's a hybrid! Standard units are one-way streets, while hybrids are energy multi-taskers.

Dive in to see if your system can juice up your batteries or if it needs an upgrade!

How Solar Inverters Facilitate Battery Charging

Here is a common point of confusion that trips up almost everyone. Strictly speaking, a standard "grid-tie" solar inverter cannot charge a battery. Its only job is to take solar energy and send it one way: out to your house or the grid.

If you want to charge a battery, you need a specific device often called an Inverter/Charger.

Think of a standard inverter like a slide. Power goes down it, but it can't climb back up.

An Inverter/Charger, however, acts like a two-way highway.

When the sun is shining, it processes solar power like normal. But when the weather turns nasty, it can reverse traffic.

It takes AC electricity from your wall outlet (or a loud gas generator), converts it back into DC, and pushes it into your battery bank.

This is a total lifesaver during winter months. It ensures your batteries stay topped up even when your solar panels are buried under six inches of snow.

A hybrid inverter regulates the incoming and outgoing solar power

The Role of the Charge Controller in the Inverter System

While the inverter handles the heavy lifting of converting power types, the Charge Controller is the brains of the operation.

Think of the charge controller as a strict nightclub bouncer. It stands between the raw, chaotic power of the solar panels and your sensitive battery bank.

Its job is to regulate the voltage and current. It ensures the batteries don't get "force-fed" too much energy, which could cause them to overheat or even degrade.

Integrated Hybrid Inverters vs. External Charge Controllers

In the early days of solar (we're talking ten years ago), you had to buy three separate boxes: an inverter, a charger, and a controller. You had to wire them all together on a plywood board in your garage. It looked like a science fair project.

Today, we have Hybrid (All-in-One) Inverters.

These smart units have the charge controller built right inside the metal casing. It’s cleaner, easier to install, and takes up way less wall space.

However, some hardcore DIY enthusiasts still prefer external charge controllers.

Why? Because if one part breaks, you don't have to throw away the whole system. Plus, specialized external controllers are often more efficient for massive, custom-built battery banks.

A charge controller regulates anymore incoming solar panel to the batteries

Charging Profiles: Protecting Your Battery Investment

You cannot just blast electricity into a battery until it's full. That is a recipe for a chemical disaster.

Batteries need to be treated gently. They require a specific charging routine, known as a Charging Profile.

Most smart inverters use a 3-stage process:

Bulk: Fast charging to get the battery to 80% quickly.
Absorption: Slowing down to carefully top it off.
Float: A tiny trickle charge to keep it full without overfilling it.

Why LiFePO4 Batteries Require Specific Charging Logic

If you are using modern Lithium Iron Phosphate (LiFePO4) batteries, pay attention here.

Old-school Lead-Acid batteries (like car batteries) were forgiving. You could overcharge them slightly, and they would just vent some gas.

Lithium batteries are not so forgiving. They are precision instruments.

If you use a "Lead-Acid" setting on a Lithium battery, you might damage it permanently. LiFePO4 batteries require a "Constant Current / Constant Voltage" (CC/CV) mode.

They also need the inverter to stop charging completely once they are full, rather than "floating" them indefinitely. Always check that your inverter has a dedicated "Lithium" mode to keep your expensive investment safe!
