Quattro 12V 5000VA Inverter Charger by Victron Energy
The Victron Quattro 12V 5000VA Inverter/Charger is a powerful and versatile energy solution designed for marine, mobile, off-grid, and backup applications. It features two AC inputs with an integrated transfer switch, allowing automatic connection to the active power source, and two AC outputs, ensuring essential loads remain powered without interruption even during outages. With PowerControl and PowerAssist technology.
The Quattro manages and boosts generator or grid power as needed, preventing overload and optimizing charging. It supports split-phase and three-phase configurations for larger systems, and integrates seamlessly with solar energy setups, providing AC power even when the grid fails. Easy to configure via DIP switches or VE.Bus software, the Quattro also offers robust on-site and remote monitoring through devices like the Ekrano GX or Cerbo GX, with full access to the free VRM Portal for real-time system data, remote configuration, and alarm notifications.
In many countries, energy storage systems (ESS) that send solar power back to the grid must have a single fault-tolerant disconnect. The Victron Quattro 12V 5000VA have a basic isolation contactor but need extra protection to meet this rule. By adding a Ziehl UFR1001E anti-islanding device and two series-connected contactors, the system becomes fully single fault-tolerant. The Quattro also manages important ESS functions like reactive power control and responding to grid frequency and voltage changes, making it a complete and compliant solution.
Quattro 12V 5000VA Inverter Charger Overview
Â
Battery Monitor
To monitor battery state of charge via
Bluetooth or the VRM portal.
The BMV 712 Smart has display, while the
SmartShunt does not have a display.
Digital Multi Control Panel
A convenient and low-cost solution for monitoring and control.
Includes an on/off switch, charger-only mode, LED readout, and rotary knob for setting PowerControl and PowerAssist levels.
Interface MK3-USB
Used to configure the MultiPlus via VictronConnect or VE.Configure software.
Connects to the MultiPlus with an RJ45 UTP cable and plugs into a USB port.
VictronConnect App
Use the app to monitor or configure the MultiPlus from your smartphone, tablet, or PC.
VE.Bus Smart Dongle
Enables monitoring and control via Bluetooth using the VictronConnect app.
Also measures battery voltage and temperature.
Quattro 12V 5000VA Inverter Charger Features
🔌 Two AC Inputs with Integrated Transfer Switch
- Seamlessly switches between two power sources like grid and generator.
- Ensures uninterrupted operation without manual intervention.
🔋 Dual AC Outputs
- Main output offers instant, no-break transition during power loss (under 20ms).
- Second output powers non-essential loads only when AC is available.
âš™ï¸ Split-Phase and Three-Phase Capability
- Configure for 120V split-phase or 120V three-phase systems.

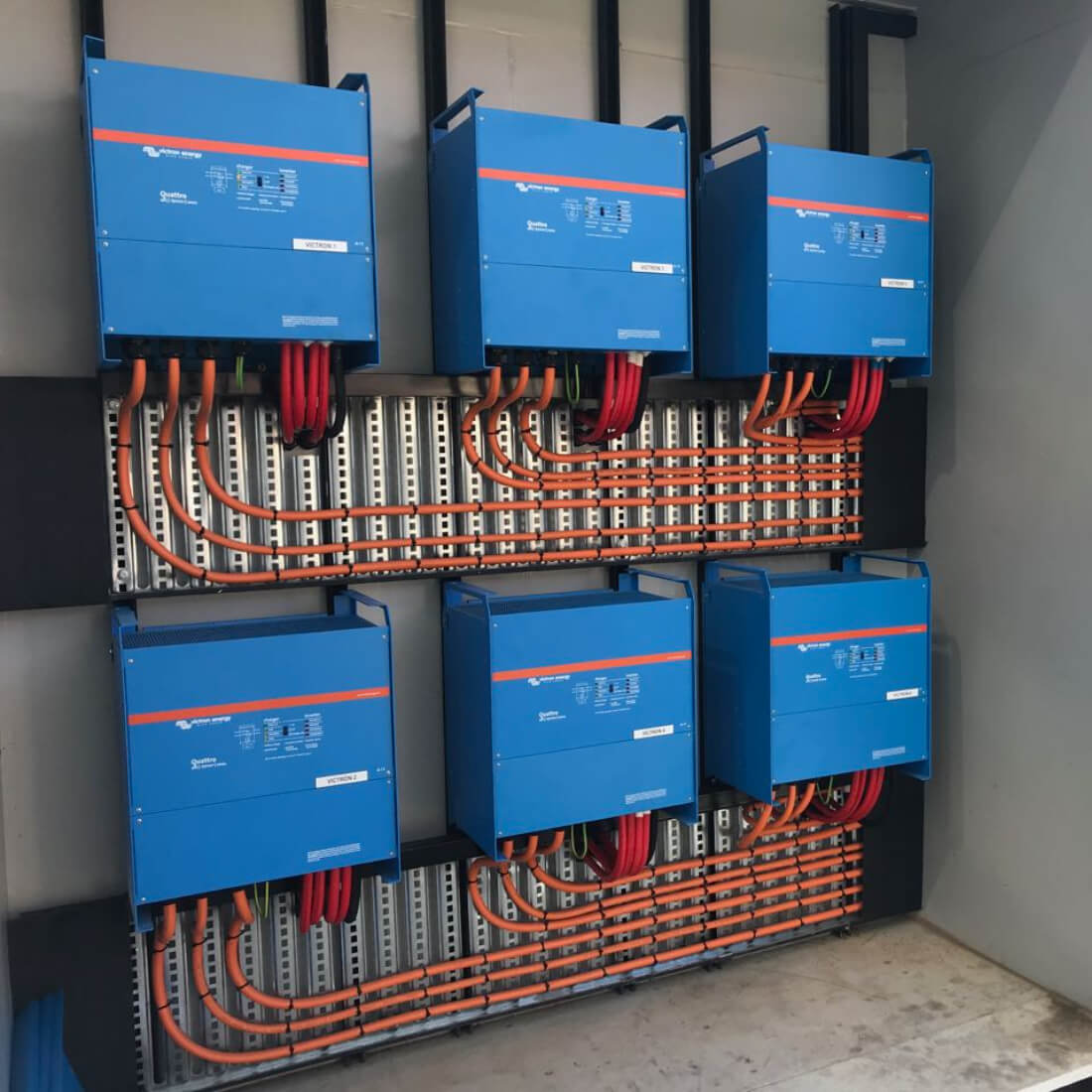

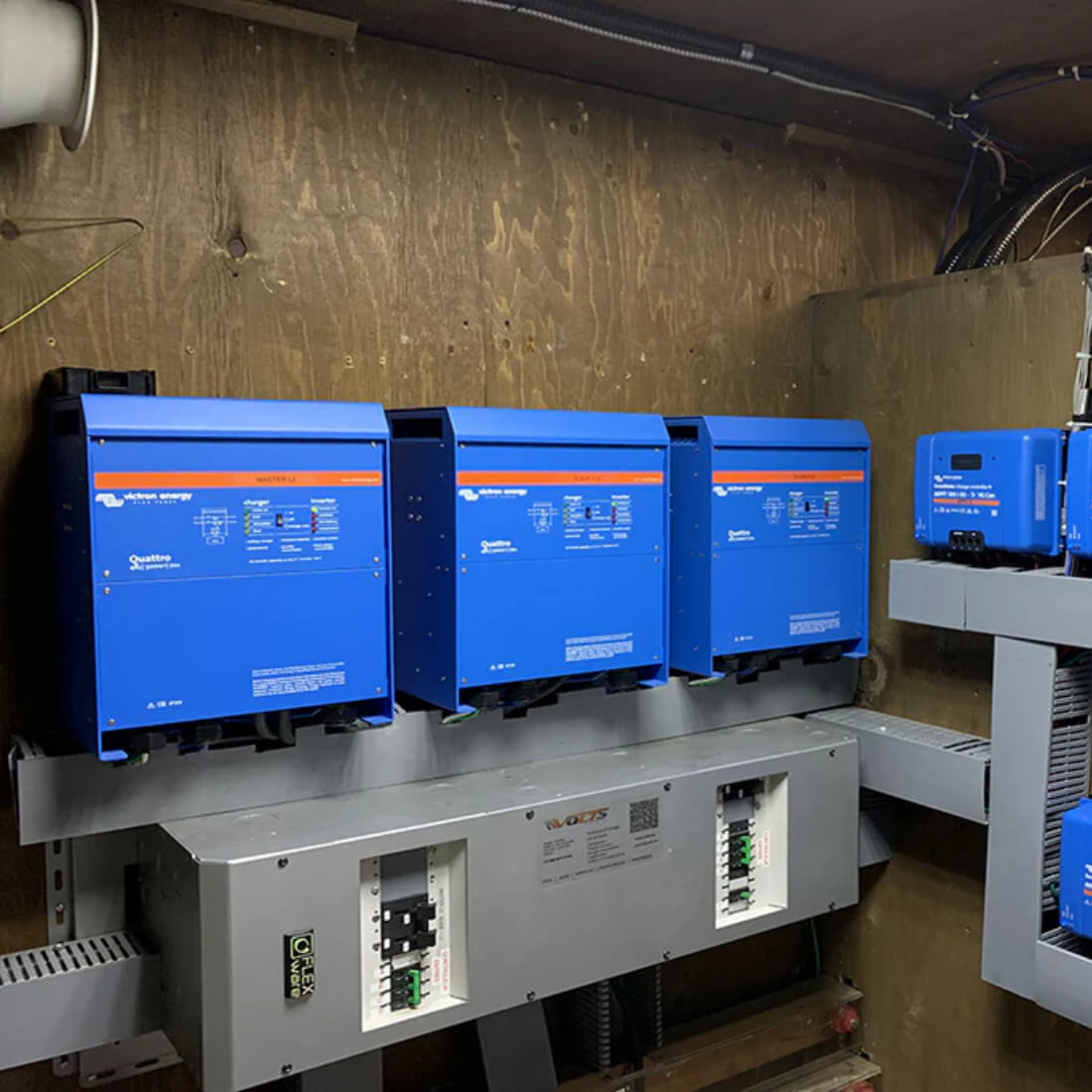

- Scale your power setup easily with up to 4 sets of 3 units in parallel.
🧠PowerControl – Smart Current Management
- Prevents generator or shore supply overload by adjusting charge rate.
- Frees up extra power for priority loads when needed.
🚀 PowerAssist – Boosts Generator or Grid Capacity
- Supplements limited shore or generator power using battery support.
- Automatically recharges batteries once loads decrease.
â˜€ï¸ Solar Energy Support with Backup Power
- Keeps essential appliances running even during grid outages.
- Compatible with off-grid, grid-tied, and hybrid solar energy systems.
âš¡ Easy System Configuration
- Quick DIP switch setup for standalone use.
- Advanced system tuning with VE.Bus software tools.
📱 Local Monitoring and Control
- Manage your system via smartphone, tablet, laptop, or GX device.
- Access detailed performance data directly from your location.
🌠Remote Monitoring and Management
- View and control your system online via the free Victron VRM Portal.
- Receive real-time alarms, status updates, and make remote adjustments.
🔋 Lithium-Ion Battery Compatibility
- Works seamlessly with modern lithium-ion battery banks.
- Optimizes battery lifespan with intelligent charging profiles.
 Quattro 12V 5000VA Warranty
-
Duration: 5 years from the original purchase date
-
Coverage: Defects in materials and workmanship
-
Process: Return the product with the purchase receipt to the retailer
What's in the Box?
Quattro 12V 5000VA Specifications
| Quattro 12/5000/220-100/100 120V Specifications |
| PowerControl / PowerAssist |
Yes |
| Integrated Transfer Switch |
Yes |
| AC Inputs (2x) |
Input voltage range: 90-140 VAC |
| Maximum Feed Through Current |
2x 100 A |
| INVERTER |
| Input Voltage Range |
19 – 33 V |
| Output Voltage |
120 VAC ± 2% |
| Output Frequency |
60 Hz ± 0.1% |
| Continuous Output Power at 25°C |
4000 W |
| Continuous Output Power at 40°C |
3700 W |
| Continuous Output Power at 65°C |
3000 W |
| Peak Power |
10000 W |
| Maximum Efficiency |
94% |
| Zero Load Power |
30 W |
| Zero Load Power in AES Mode |
20 W |
| Zero Load Power in Search Mode |
10 W |
| CHARGER |
| Charge Voltage ‘Absorption’ (V DC) |
14.4 / 28.8 / 57.6 V |
| Charge Voltage ‘Float’ (V DC) |
13.8 / 27.6 / 55.2 V |
| Storage Mode (V DC) |
13.2 / 26.4 / 52.8 V |
| Charge Current House Battery (A) |
120 A |
| Charge Current Starter Battery (A) |
4 A |
| Battery Temperature Sensor |
Yes |
| GENERAL |
| Auxiliary Output (A) |
50 A |
| Programmable Relay |
3x |
| Protection |
a-g |
| VE.Bus Communication Port |
Yes (for parallel, split phase, three-phase operation, remote monitoring, and system integration) |
| General Purpose Communication Port |
Yes |
Quattro 12V 5000VA FAQ's
Victron Quattro 12V 5000VA Inverter Charger FAQ
1. What is the Victron Quattro 12V 5000VA Inverter Charger?
It is a high-performance inverter/charger designed for marine, mobile, off-grid, and backup applications, offering seamless power transfer and energy management features.
2. Does the Quattro support two AC inputs?
Yes, it automatically switches between two AC power sources like grid and generator with its built-in transfer switch.
3. Can the Quattro manage generator or shore power limitations?
Yes, with PowerControl and PowerAssist, it prevents overloads and can boost available shore or generator capacity when needed.
4. Is the Quattro compatible with solar energy systems?
Absolutely! It integrates seamlessly with off-grid, grid-tied, and hybrid solar setups to provide backup and energy storage solutions.
5. How do I configure the Victron Quattro?
You can configure it using DIP switches for basic setups or use VE.Bus software tools via the MK3-USB interface for advanced settings.
6. Can I monitor the Quattro remotely?
Yes, you can monitor and control it locally or remotely using devices like the Ekrano GX, Cerbo GX, and through the free Victron VRM Portal.
7. What is included in the box with the Quattro 12V 5000VA?
It includes the Victron Quattro Inverter/Charger, a Battery Temperature Sensor, and Mounting Hardware.
8. What warranty does the Victron Quattro come with?
The Quattro comes with a 5-year warranty covering defects in materials and workmanship from the date of purchase.
9. Can the Quattro work with lithium-ion batteries?
Yes, it is fully compatible with modern lithium-ion battery banks and optimizes their charging profiles for longevity.
10. How does the Quattro help with grid compliance?
With additional devices like the Ziehl UFR1001E, the Quattro can meet single fault-tolerant requirements for sending solar energy back to the grid while managing reactive power and grid frequency responses.
Manuals and PDF's
 Victron Quattro 12V 5000VA Inverter Charger Sale Sheet
